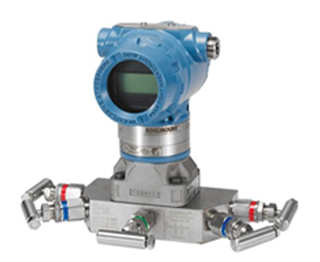

Rosemount 3051 Pressure Transmitter Family

Why Rosemount 3051 Pressure Transmitters

In addition to the above-mentioned features, all Rosemount 3051 series pressure transmitters assure the following:

• Reference accuracy of up to 0.04%
• Five-year stability on first installations
• Unmatched performance in dynamic applications
• Advanced Plant Web functionality to improve the productivity of plants
• Improved performance when integrated with DP level, DP flowmeters, and manifolds

Types of Rosemount 3051 Transmitters

At The Transmitter Shop, we provide the following Rosemount 3051 pressure transmitter models:

• 3051S Series SMART® Pressure Transmitters
• 3051C Pressure Transmitters
• 3051T Pressure Transmitters
• 3051L Level Transmitters

Difference Between 3051C Vs 3051S

Rosemount 3051S series SMART® pressure transmitters and Emerson 3051C coplanar pressure transmitters are widely preferred in process industries, owing to various beneficial advantages that they offer. The following points will help you understand it better:

• 3051C pressure transmitters are equipped with a flexible coplanar platform and 3051S pressure transmitters with hermetic SST SuperModuleTM platform. Both these features, along with advanced diagnostics enable users to access device and process information effectively.
• 3051S assures 0.025% accuracy and range down of 200:1. So, this pressure transmitter is a perfect choice if accuracy and turndown ratio is your main concern.
• 3051C is suited for applications, where turndown ratio and accuracy may not be a big concern. It is also considered an ideal choice if a process owners want to save money while remaining productive and safe.

How to Configure 3051 Transmitter

Configuration of Emerson Rosemount 3051 transmitter needs to be performed according to the guidelines provided by Rosemount. The following steps will lead to accurate commissioning of the transmitter.

• Commission the transmitter on the bench using an AMS Device Manager or a HART® communicator.
• Set the process application loop to manual. The HART® communicator or the AMS Device Manager will prompt for this action.
• Connect the bench equipment and wiring loops as per the below wiring diagram.
• Review the default configuration data using the AMS Device or the HART® Communicator.
• Review the parameters of digital output before performing any on-line operations with the transmitter. This will help you ensure that the transmitter is performing properly, and is configured to right process variables.
• Set the process variable units, output (transfer function), and range values.

How to Troubleshoot Emerson Rosemount 3051 Pressure Transmitter

The Rosemount 3051 pressure transmitter provides 4-20mA analog output, with a HART® signal on 4-20 mA output. Here, the HART® signal is superimposed on the output. The following are a few tips that will help troubleshoot for 4-20mA output and make necessary arrangements.

• The milliamp reading of transmitter is zero: If this happens, you need to ensure the power is applied to the signal terminals, and the terminal voltage is set to 10.5 to 42.4 Vdc. Also, check the wires for reverse polarity, and check the open diode.
• The milliamp reading is extremely high or low: If you notice this during servicing, you need to verify applied pressure, as well as 4-20 mA range points. Also, ensure that the output is not in the alarming condition, and the power wires are connected to the right signal terminals, and not the test terminal.
• Transmitter is not communicating with field communicator: This may be due to various reasons. You need to check if the terminal voltage is set at 10.5 to 42.4 Vdc, the loop resistance is 250Ω minimum, the power wires are connected to the right terminals, and output is between 4 and 20mA or at saturation.
• Transmitter is not responding to applied pressure: If this happens, you need to check the manifold or impulse piping for leakage. Additionally, you need to ensure that the applied pressure is only between 4 and 20mA points, the output is not in alarming condition, and the transmitter is not in a loop test mode.
• The pressure variable reading of digital pressure is high or low: When this is noticed, you need to check the accuracy of the equipment used for testing. Also, check for the blockage in impulse piping or low fill in wet lag. Ensure that the transm- itter is calibrated properly and verify pressure calculations, too.
• The pressure variable reading of digital pressure is erratic: To correct this, you need to check for faulty equipment in pres sure line, verify the transmitter is not turning on/off with the equipment, and damping is properly set.
• Milliamp reading is erratic: If you notice erratic Milliamp reading, you need to verify a few things such as checking for external electrical interference, grounding of the transmitter, if the shield for the twisted pair is grounded at the end, and power source to transmitter has adequate current and voltage.

How does a Rosemount 3051 transmitter Work?

All Rosemount 3051 transmitter products feature calibration and reset options. These reset options enable the re-setting the measuring span to suit application requirements. The sensors of these transmitters work by converting the pressure readings into an analog electrical signal.

Integral Manifolds Solution for Rosemount Transmitter 3051

We provide the following types of integral manifolds for Rosemount 3051 pressure transmitter models.

• Rosemount 304 Conventional Manifold
• Rosemount 305 Integral Manifold
• Rosemount 306 In-Line Manifold

Environmental Considerations

It is always recommended to mount the transmitter in an environment, where it experiences minimal changes due to ambient temperatures. The operating range of the electronics in the transmitter is –40 to 185 °F (–40 to 85 °C). Along with the operating temperature limits, it needs to be ensured that the transmitter is not susceptible to mechanical shocks, vibrations, and is not kept in contact with a corrosive agent.

Ordering and Warranty Information

Do you want to order any of our Rosemount 3051 transmitter products? You can click on individual product links provided in the types of 3051 transmitters. To know more about warranty information, please click here.

Rosemount 3051 Downloads

You can download the reference documents from the links given below.

• Product Data Sheet
• Reference Manual
• Quick Start Guide
• Quick Start Guide: Enhanced Rosemount™ 3051 Upgrade Kit
• Ordering Information

At TTS, we value quality and customer satisfaction above everything else. For us, it doesn’t matter, whether you invest in new surplus, factory sale, or reconditioned Rosemount pressure transmitters, our experts are always there to help you with the product. They will also help you with the right product selection. To place an order, or to know more about Rosemount transmitter products, get in touch with us on our toll-free numbers +1-888-964-8837 or email us at [email protected].
