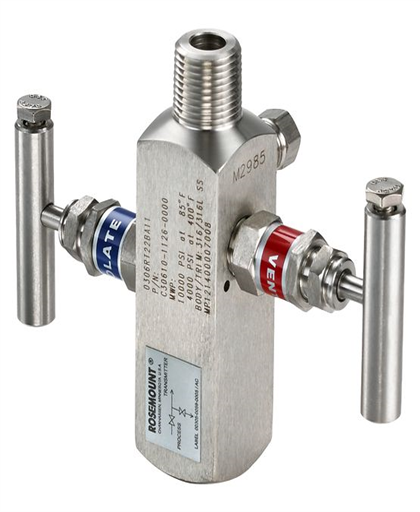

Rosemount 306 In-Line Manifold

The Rosemount 306 In-Line Manifold is engineered for in-line transmitters. This manifold comes with a male or female threaded NPT process connection and assembles directly to pressure transmitters and gauges for simple in-process calibration. Featuring block-and-bleed and 2-valve configuration for instrument isolation and drain/vent capabilities, this manifold comes factory-assembled to transmitters and gauges, leak-tested and calibrated.

Availability: In stock
Request A Quote
Note: If You Have Configured Model Number Submit Below

Complete Model Number

Specification

Rosemount 306 In-Line Manifold

Standard Specification

Assembles directly to in-line pressure transmitters and gauges for simple in-process calibration

Block-and-bleed and 2-valve configurations provide instrument isolation and drain/vent capabilities

Male or female NPT process connection meets varying application requirements

Factory-assembled, leak-tested and calibrated to assure optimal performance

Maximum Operating Temperature

1000°F (538°C)

Manifold Material

316 SST/316L SST, Alloy C-276, Alloy 400

Packing Material

PTFE, Graphite-based

Process Connections

1/2" -14 male NPT, 1/2" -14 female NPT

Process Connection Orientation

Parallel with transmitter

Certifications

Cleaning for special services, sour gas (meets NACE MR 0175/ISO 15156, MR0103), see full specs for complete list of certifications

Warranty

Up to 5-year limited warranty

Process Connection Orientation

Parallel with transmitter

Certifications

Cleaning for special services, sour gas (meets NACE MR 0175/ISO 15156, MR0103), see full specs for complete list of certifications

Warranty

Up to 5-year limited warranty
