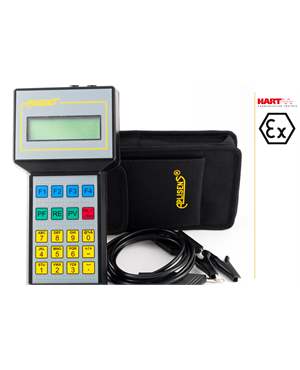

Hart communication tool

Industrial Implementation of HART Communication Protocol

HART communication operates by combining analog and digital signals on the same loop, allowing both process measurement and device data exchange simultaneously.

Communication Principle

• Analog 4–20 mA signal carries the primary process variable
• Digital signal overlays additional data such as diagnostics and configuration
• Frequency Shift Keying (FSK) enables communication without disrupting the loop

This hybrid approach ensures compatibility with legacy systems while enabling advanced device interaction.

Communication Modes

Point-to-Point Communication
Used in standard control loops where one device is connected per loop.

Multidrop Communication
Multiple devices communicate digitally over a shared loop, typically used for monitoring applications.

Functional Capabilities Enabled by HART Communication Tools

A HART communication tool provides direct access to device-level data and control functions required in industrial environments.

Device Configuration

• Set measurement ranges and units
• Configure output signals and scaling
• Assign device tags and identifiers

Calibration and Loop Testing

• Perform loop checks
• Verify signal output
• Adjust calibration parameters

Diagnostics and Maintenance

• Access device status and alerts
• Identify faults and performance issues
• Retrieve diagnostic information

Real-Time Monitoring

• View process variables
• Monitor device health
• Validate instrument performance

These capabilities improve operational efficiency and reduce maintenance time.

Compatible Devices Supporting HART Communication

HART communication tools are used with a wide range of smart field instruments deployed in industrial processes.

Supported Instrument Types

• Pressure and differential pressure transmitters
• Temperature transmitters
• Flow measurement devices
• Level transmitters
• Control valves and positioners

Integration with Control Systems

HART communication supports integration with:

• PLC systems
• Distributed Control Systems (DCS)
• SCADA platforms
• Asset management systems

This ensures seamless data exchange between field devices and centralized control environments.

Industrial Applications of HART Communication

HART communication is used across industries where accurate process measurement and device diagnostics are required.

Oil & Gas

Used for commissioning, calibration, and maintenance of transmitters in production and storage systems.

Chemical Processing

Supports configuration of instruments in high-temperature and corrosive environments.

Power Generation

Used for monitoring and maintaining instrumentation in turbines, boilers, and auxiliary systems.

Water & Wastewater

Ensures reliable setup and performance of flow, level, and pressure measurement devices.

Manufacturing

Supports process optimization and preventive maintenance of instrumentation systems.

Technical Features of HART Communication Tools

Industrial HART communication tools are designed to support reliable field operations.

Communication Capability

• Supports HART protocol over 4–20 mA loops
• Enables simultaneous analog and digital communication
• Provides access to multiple device parameters

Functional Features

• Multi-device compatibility
• On-site configuration without system shutdown
• Loop testing and diagnostics
• Real-time device data access

Operational Benefits

• Reduced downtime
• Faster commissioning
• Improved troubleshooting efficiency
• Enhanced visibility of device performance

Selection Considerations for HART Communication Tools

Choosing the right HART communication tool requires evaluating system requirements and application conditions.

Device Compatibility

Ensure compatibility with the required field instruments and HART device descriptions.

Communication Requirements

Confirm support for:

• HART protocol versions
• Analog loop systems
• Existing control infrastructure

Application Environment

Consider:

• Field conditions
• Hazardous area requirements
• Portability needs

Functional Requirements

Evaluate the need for:

• Advanced diagnostics
• Calibration capabilities
• Multi-device support

Proper selection ensures efficient device configuration and long-term usability.

Industrial Supply Capability and Technical Support

HART communication tools in this category are intended for industrial environments requiring reliable device configuration and diagnostics.

Available solutions support:

• Field commissioning and setup
• Calibration and loop verification
• Device diagnostics and maintenance
• Integration with industrial automation systems

Technical support is available to assist with device compatibility and configuration requirements.

Frequently Asked Questions

What is HART communication used for?

HART communication is used to enable digital interaction with field instruments, allowing configuration, diagnostics, and monitoring without interrupting the analog signal.

Can HART communication work without stopping the process?

Yes. HART communication allows digital data transmission over the same 4–20 mA loop, enabling configuration and diagnostics during operation.

What devices support HART communication?

Pressure, temperature, flow, and level transmitters, as well as control valves and positioners, commonly support HART communication.

Is HART communication compatible with modern control systems?

Yes. HART communication integrates with PLC, DCS, and SCADA systems, making it suitable for both legacy and modern automation environments.

Why is HART communication widely used in industry?

It allows both analog and digital communication over existing wiring, reducing infrastructure costs while providing access to advanced diagnostics and device configuration.
