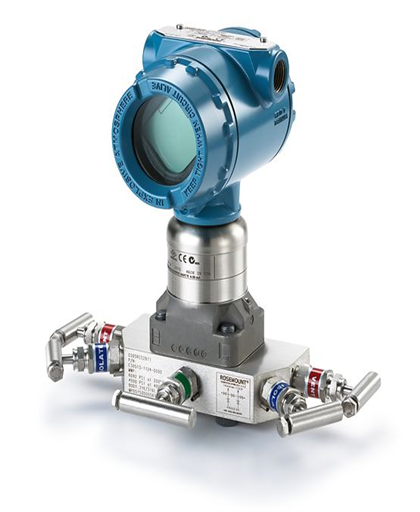

Rosemount 3051S Series Coplanar Pressure Transmitter

Availability: In stock
Specification
Output
  • Two-wire 4-20 mA is user-selectable for linear or square root output. Digital signal based on HART
Range
  • 3051S_CA: 0-0.167 to 0-4000 psia
  • 3051S_CD: 0-0.01 in H2O to 0-2000 psid
  • 3051S_CG: 0-8.3 in H2O to 2000 psig
Accuracy
3051S_CD/CG, Ranges 2-4:
  • Classic: +0.035% of span, For spans less than 10:1: ±[0.015 + 0.005(URL / Span)]% of span
  • Ultra: +0.025% of span, For spans less than 10:1: ±[0.005 + 0.0035(URL / Span)]% of span
  • Ultra for Flow(3051S_CD Only, Ranges 2-3): +0.04% of reading up to 8:1 DP turndown from URL, or ±[0.04 + 0.0023(URL / Reading)]% of reading to 200:1 DP turndown from URL
3051S_CD/CG, Range 5:
  • Classic: +0.065% of span, For spans less than 10:1, ±[0.015 + 0.005(URL / Span)]% of span
  • Ultra: +0.05% of span, For spans less than 10:1, ±[0.005 + 0.0045(URL / Span)]% of span
3051S_CD/CG, Range 1:
  • Classic: +0.10% of span, For spans less than 15:1, ±[0.025 + 0.005(URL / Span)]% of span
  • Ultra: +0.09% of span, For spans less than 15:1, ±[0.015 + 0.005(URL / Span)]% of span
3051S_CD, Range 0:
  • Classic: +0.10% of span, For spans less than 2:1: ±0.05% of URL
  • Ultra: +0.09% of span, For spans less than 2:1: ±0.045% of URL
3051S_CA, Ranges 1-4:
  • Classic: +0.035% of span, For spans less than 10:1: ±[0.0065(URL / Span)]% of span
  • Ultra: +0.025% of span, For spans less than 10:1: ±[0.004(URL / Span)]% of span
3051S_CA, Range 0:
  • Classic: +0.075% of span, For spans less than 5:1: ±[0.025 + 0.01(URL / Span)]% of span
  • Ultra: +0.075% of span, For spans less than 5:1: ±[0.025 + 0.01(URL / Span)]% of span
Power
  • 3051S: 10.5-42.4 V dc with no load
  • 3051S with Advanced HART Diagnostic Suite: 12-42.4 V dc with no load
Process Wetted Material
  • 316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated Alloy 400, Gold-plated 316L SST
Materials
  • Sensor Wetted Parts: 316L SST, Hastelloy, Monel, Tantalum, Gold-plated SS, Gold-plated Monel
  • Sensor Fill Fluid: Silicone, Inert (Halocarbon)
  • Coplanar and Traditional Flanges and Adapters: Cadmium and Nickel-plated CS, 316 SST, Hastelloy, Monel
Process Flange
  • Carbon Steel, SST
Features
  • Ultra, ultra for flow, and classic performance
  • Gauge, differential or absolute measurements
  • Remote Display and Interface options
  • Zero and span adjustment
  • PlantWeb alerts
  • Burst pressure limit: 10,000 psig (689.5 bar)
  • Best-in-class, scalable architecture enhances performance, functionality and process connections
  • Transmitter arrives fully assembled and leak tested for simple installation and maintenance

Description

The Rosemount 3051S CoplanarTM pressure transmitter can be easily integrated with primary elements, manifolds, and sealing solutions. The transmitter is equipped with CoplanarTM that ensures accurate measurement of gage, differential, and absolute pressures. The integrated SuperModuleTM platform helps resist line pressure, as well as overpressure effects, and provides reliable performance in adverse conditions.

Configuration Models Available for Rosemount 3051S Transmitter

3051S1CG3A2B11X5
3051S1CD5A2A11A1AM5
3051S2CD2A2A11A1JC1E5M5P
3051S2CD4A2A11A1AE5M5T1
3051S2CG2AB11A1A
3051S2CG5A2B11A1
3051S2CG5A2B11A1J
3051S2TG1A2A11A1BB4K1Q8QT
3051S2TG2A2
3051S2TG2A2A11A1AB4M5Q4T1
3051S3
3051S1CG5A2E
3051S2CG5A2B11A1
3051S1CA
3051S3CD3A
3051S3CD2A2E11A00
3051S1CD1A2A11A1AK5M5
