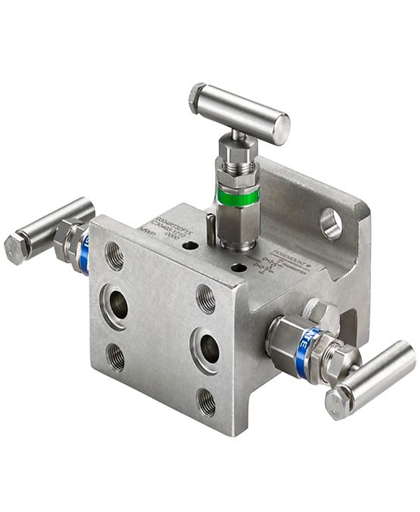

Rosemount 304 Conventional Manifold
Availability: In stock
Specification
- Assembles to transmitter flange in accordance with IEC 61518
- Traditional (Flange x Flange and Flange x NPT) and wafer manifold styles meet a wide range of applications
- 2-,3- and 5-valve configuration for assembly to multi-variable, absolute, gage and differential pressure transmitters
- Manifold can be factory-assembled to a transmitter, leak-tested and calibrated for quick installation
- 5-valve natural gas configuration available for extra protection from leaking to ensure DP signal integrity
| Maximum Operating Temperature | 1000°F (538°C) |
| Manifold Material | 316 SST/316L SST, Carbon Steel |
| Packing Material | PTFE, Graphite-based |
| Process Connections | 1/2"-14 female NPT, IEC 61518 |
| Process Connection Orientation | Parallel transmitter, 90° transmitter |
| Certifications | Cleaning for special services, sour gas (meets NACE MR 0175/ISO 15156, MR0103), see full specs for complete list of certifications |
| Warranty | Up to 5-year limited warranty |
| Process Connection Orientation | Parallel transmitter, 90° transmitter |
| Certifications | Cleaning for special services, sour gas (meets NACE MR 0175/ISO 15156, MR0103), see full specs for complete list of certifications |
| Warranty | Up to 5-year limited warranty |
Description
Engineered for 2-, 3- and 5-valve configurations, the Rosemount 304 Conventional Manifold attaches to a transmitter with a traditional or coplanar flange. This manifold is available in traditional and wafer styles and is factory-assembled to transmitters, leak-tested and calibrated for quick installation. Designed for multivariable, static and differential pressure transmitters, this manifold allows instrument isolation, controlled venting and protection from leaking to ensure measurement integrity.
Technical Data-Sheet
type-1-drawing-rosemount-304-conventional-manifolds-2d-pdf-en-73318.pdf
