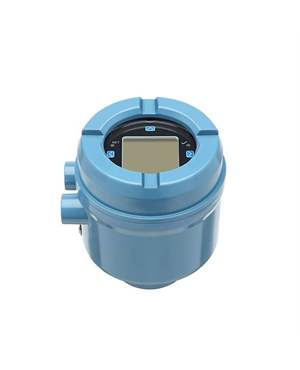

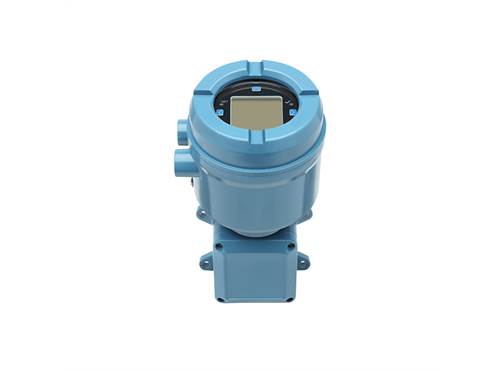

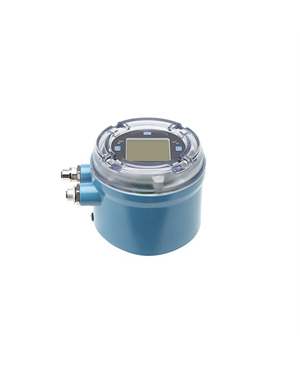

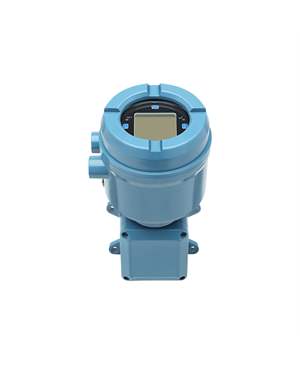

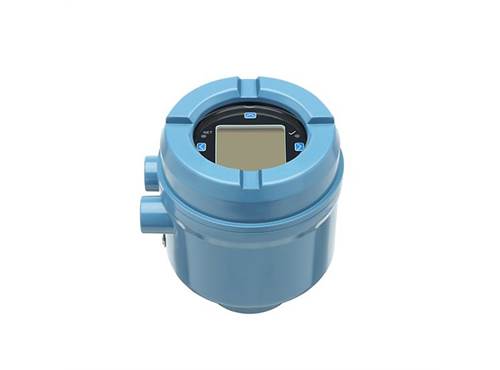

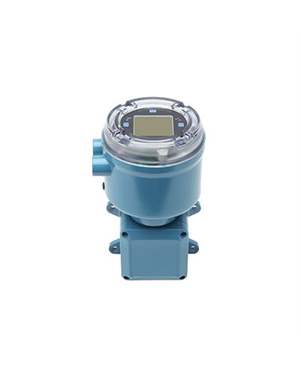

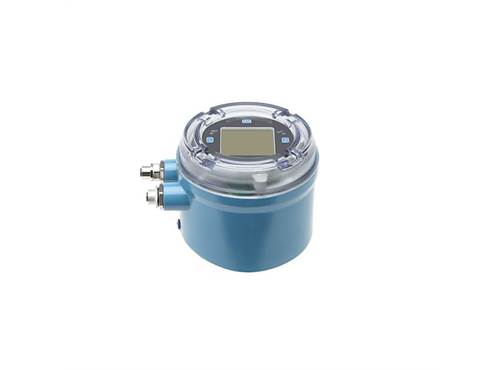

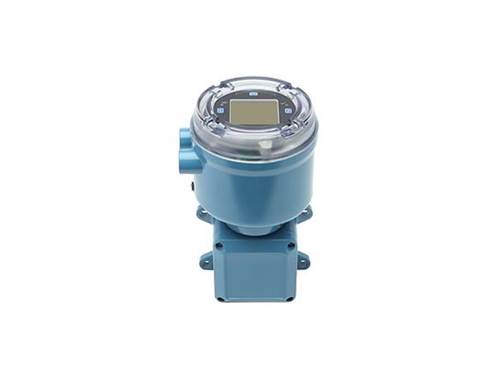

Micro Motion 1600

With a compact and light design, the 1600 transmitter delivers ease of integration. The intuitive design can support HART®, RS-485 or a native Ethernet connection with optional Power over Ethernet. A suite of powerful software solutions provide measurement confidence and valuable process insight in the most challenging applications. The data historian feature captures rich information about process events, fluid quality, and measurement stability - over long and short periods of time.

Availability: In stock
Request A Quote

Specification

Micro Motion 1600

Display/Interface

Graphical backlit display

Four-button mechanical controls

Flowmeter-status LED

Supports English, German, French, Spanish, Portuguese, Russian, Chinese, and Japanese languages

Mounting

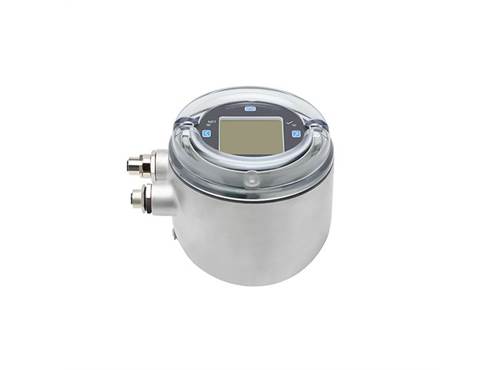

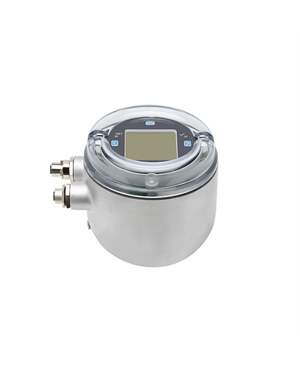

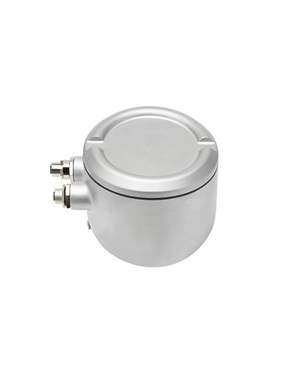

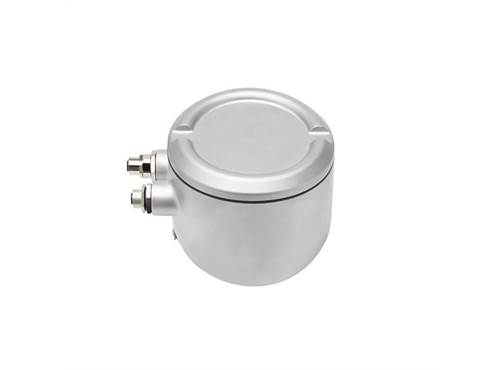

Field-mount aluminum and hygienic stainless steel housing options

Integrally mounted to any Micro Motion ELITE (CMFS, CMF and HC), F-series, H-series, R-series, T-series or HPC-series Coriolis sensor

Remotely mounted to any 9-wire Micro Motion ELITE, F-series, H-series, R-series, T-series or HPC-series Coriolis sensor (aluminum only)

Power Supply

Power over Ethernet available in Ethernet version

PoE PD Power Class 3 complies with IEEE 802.3at and 802.3af

18 to 100 VDC, 6 watts typical, 11 watts maximum

Complies with Low Voltage Directive 2014/35/EU per IEC 61010-1 Ed. 3.0 2010-06; Over voltage Category II, Pollution Degree 2

Self-switching AC/DC input, automatically recognizes supply voltage, available in both HART® and Modbus versions.

85 to 240 Vac 50/60 Hz, 3 .5 watts typical, 8 watts maximum

18 to 100 Vdc, 3 .5 watts typical, 8 watts maximum

Universal Service Port

Universal Service Port design allows configuration and transfer of data unsing a standard, USB-C terminal

Ethernet version

An Ethernet port supports EtherNet/Ip and Modbus TCP all in one device

Additional channel included configurable to mA output, pulse output or discrete output

Pre-installed M12 quick connections available as an option

HART® version

HART® channel supports full HART® communication

Additional channel included configurable to pulse output or discrete output

Pre-installed M12 quick connections available as an option

Modbus version

Modbus support is implemented on the RS-485 physical layer

Additional channel included configurable to pulse output or discrete output

Pre-installed M12 quick connections available as an option

Application types

Smart Meter Verification Professional

Discrete batch control

Petroleum measurement and AI correction option

Concentration measurement

Advanced Phase Measurement for two phase flow remediation

Filling and dosing

Certifications/Approvals - Hazardous approvals

Class I, Div. 2

Zone 2
