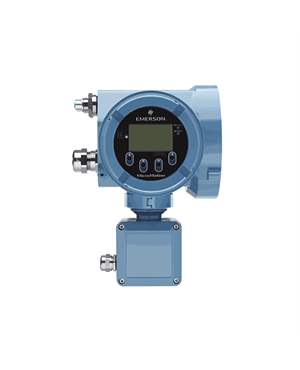

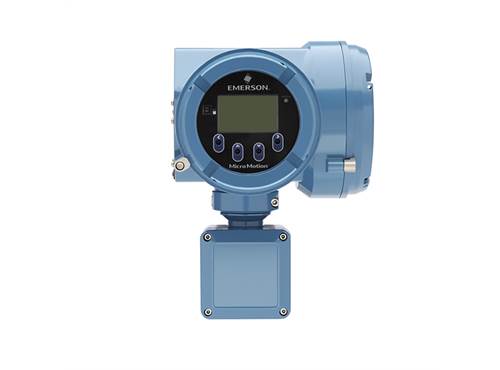

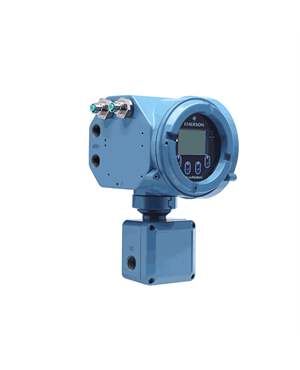

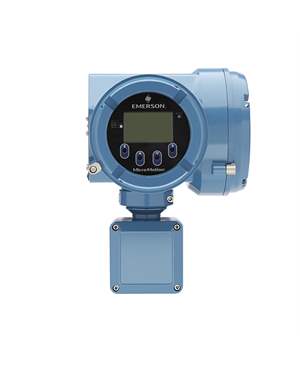

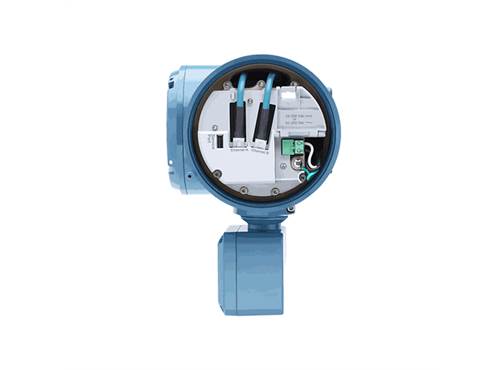

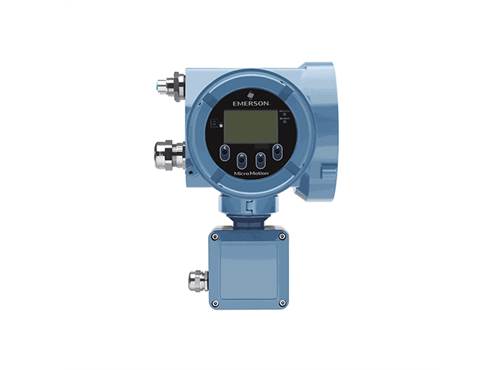

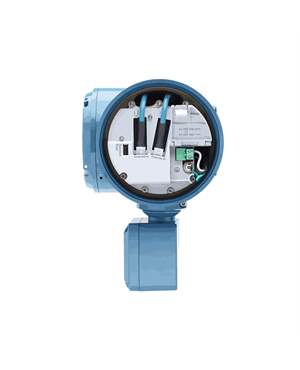

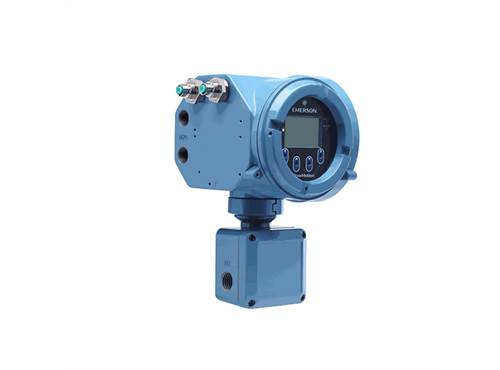

Micro Motion 5700

Delivering the best in measurement technology and unparalleled support, the 5700 transmitter's intuitive design ensures measurement confidence, valuable process insight and productivity through simplified solutions. Data historian feature captures rich information about process events, fluid quality, and measurement stability - over long and short periods of time. Zero Verification tool provides confidence in the meter zero and analyzes process conditions to indicate potential issues for re-zeroing.

Availability: In stock
Request A Quote

Specification

Micro Motion 5700

Local display

Graphical backlit display

Four-button optical controls

Flowmeter-status LED

Supports English, German, French, Spanish, Portuguese, Russian, Chinese, and Japanese languages.

Power

Self-switching AC/DC input, automatically recognizes supply voltage

85 to 2405 VAC, 50/60 Hz, 6 watts typical, 11 watts maximum

18 to 100 VDC, 6 watts typical, 11 watts maximum

Complies with Low Voltage Directive 2006/95/EC per IEC 61010-1 Ed. 3.0 2010-06; Overvoltage Category II, Pollution Degree 2

Configurable I/O version - Up to 5 licensable channels with the following possible configurations:

1 to 3 4-20 mA outputs

01 to 3 Pulse outputs

1 to 3 Discrete outputs

1 to 2 Discrete inputs

1 mA input

1 Modbus/RS-485

Channel A: mA/HART

Channel B: mA/FO/DO

Channel C: mA/FO/DO/DI

Channel D: mA-input/FO/DO/DI

Channel E: Modbus RS-485

FOUNDATION Fieldbus version

FOUNDATION Fieldbus channel

mA output

Pulse output

PROFIBUS-PA version

PROFIBUS-PA channel

mA IS output

Pulse IS output

Intrinsically Safe version - Up to 4 licensable IS channels with the following configurations:

Channel A: mA/HART

Channel B: mA

Channel C: mA/FO

Channel D: FO

Channel E: Not Used

SIL Certified Device Available – Uses an internal readback loop to verify the milliamp output

Universal Service Port

Universal Service Port design allows for connection and data transfer using standard, readily available equipment.

Ethernet version

Dual Ethernet ports supporting EtherNet/IP, Modbus TCP, and PROFINET all in one device

Additional channel included configurable to mA output, pulse output, discrete output, or discrete input

Pre-installed M12 quick connections available as an option

Mounting options

Field-mount aluminum and stainless steel housing options

Integrally mounted to a Micro Motion ELITE (CMFS), F-series, H-series, R-series, or T-series Coriolis sensor (aluminum only)

Remotely mounted to any 4-wire or 9-wire Micro Motion ELITE®, F-series, H-series, R-series, or T-series Coriolis sensor (aluminum and stainless steel versions)

Mounting options

Field-mount aluminum and stainless steel housing options

Integrally mounted to a Micro Motion ELITE (CMFS), F-series, H-series, R-series, or T-series Coriolis sensor (aluminum only)

Remotely mounted to any 4-wire or 9-wire Micro Motion ELITE®, F-series, H-series, R-series, or T-series Coriolis sensor (aluminum and stainless steel versions)

Application types

Smart Meter Verification Professional

Discrete batch control

Petroleum measurement and API correction option

Concentration measurement

Advanced Phase Measurement for two phase flow remediation

Piecewise Linearization for Gas Applications

Certificates Approvals / Hazardous approvals

Class I, Div. 1

Class I, Div. 2

Zone 1

Zone 2

SIL/SIS Certification

5700 Config I/O and Intrinsically Safe versions are certified for SIL2 single use and SIL3 multiple use safety applications per IEC 61508. Please refer to the Safety Manual in the document manuals and guides section.

Communication Protocol - WirelessHART

WirelessHART available with the 775 Smart Wireless THUM adapter.
