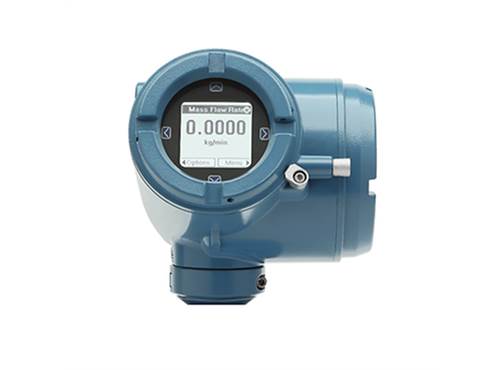

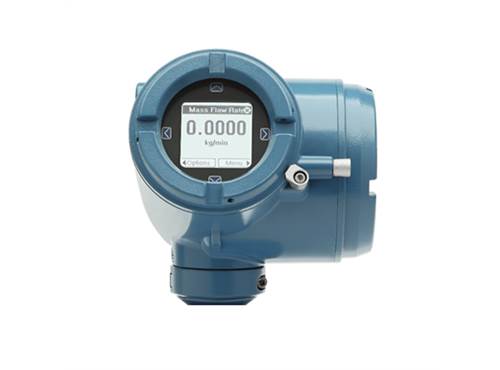

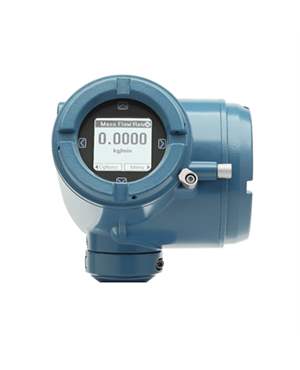

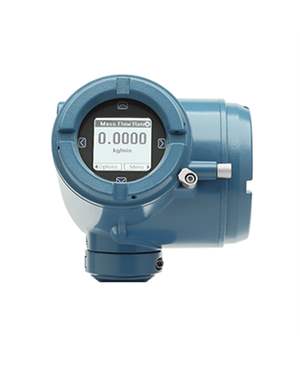

Micro Motion 4200 2-Wire Transmitter

Micro Motion 4200

The 4200 2-wire Coriolis meter lowers capital expenditures and provides a faster commissioning time with the ability to share power and signal over the same pair of wires reducing installation, engineering, and planning costs. The 2-wire Coriolis meter does not require any straight runs or flow conditioning providing a robust, repeatable, and reliable solution with no moving parts, and wide turndown, improving product quality leading to less rework and waste.

Availability: In stock

Local display

Graphical display with optional backlight setting

Four-button capacitive touch controls

Supports English, German, French, Spanish, Portuguese, Russian, Chinese, and Japanese languages.

Power

2-wire loop-powered transmitter

Minimum 17.75 V lift off voltage.

Input/output signals

Up to 2 output channels

Channel A is loop-powered 4-20mA/HART

Chanel B is externally-powered configurable for 4-20mA, frequency output or discrete output (Licensable Option)

Mounting options

Field-mount

Integrally mounted to a Micro Motion ELITE (CMFS), CMF200-CMF350, F-series, H-series, R-series, and T-series sensors

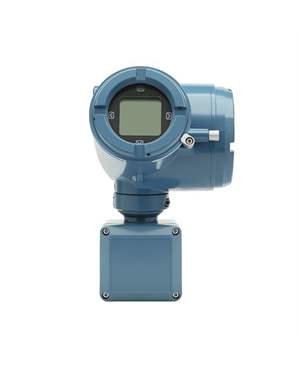

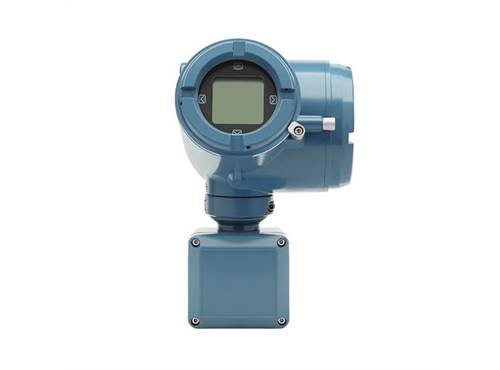

Remotely mounted 9-wire with mounting bracket

Hazardous approvals

Class I, Div. 1

Class I, Div. 2

Zone 1

Zone 2

Intrinsically Safe

Explosion Proof

Application types

Smart Meter Verification

Concentration measurement

API Referral

WirelessHART

WirelessHART available with THUM adapter

Features

Available with a wide range of Coriolis mass flow sensors with up to +/-0.10% mass flow accuracy and +/0.0005 g/cc density accuracy for liquids and slurries or +/-0.25% mass flow accuracy for gases.

The integrated real-time clock time stamps process data, alerts, Smart Meter Verification reports and audit logs. Data Historian on board offers a complete audit trail to determine process issues.

Graphic display that supports 8 languages and can be rotated using the integrated software rotation without removing the front cover, thereby minimizing downtime due to hot work permit restrictions.

Replace existing 2-wire flow devices with minimal effort and without incurring additional power or cabling costs.

Easily expand your plant where power is not centrally located

Smart Meter Verification provides a quick, complete assessment of a Coriolis meter, determining whether the meter has been affected by erosion, corrosion, or other influences affecting meter calibration. A basic version of Smart Meter Verification is included as standard.

Certified for SIL2 single use and SIL3 multiple use safety applications per IEC 61508

Accurate, repeatable, direct mass measurement improves process control while reducing number of measurement devices required.

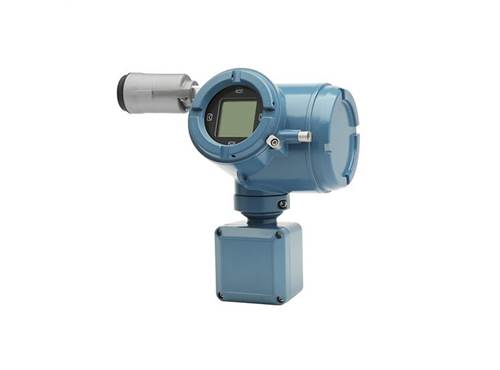

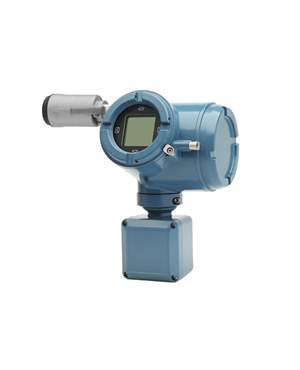

Wireless THUM™ option maximizes installation and operation flexibility.
