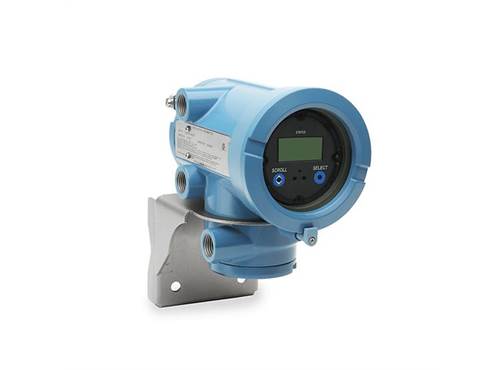

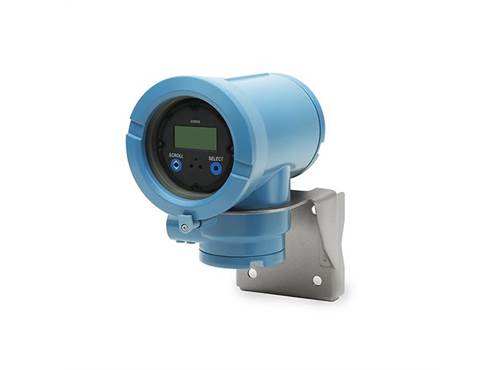

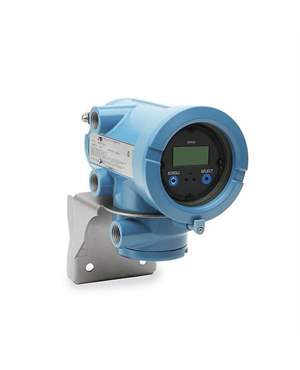

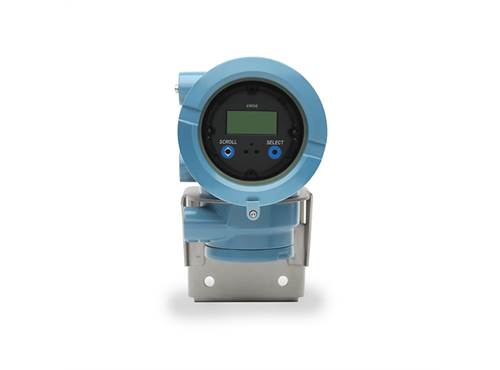

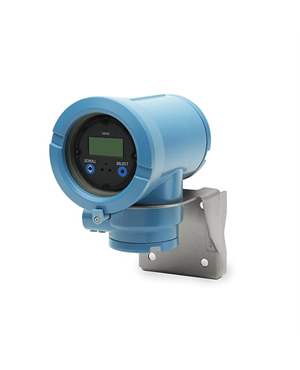

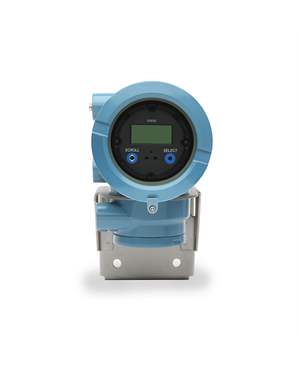

Micro Motion 2700

A field-mount transmitter powered by MVD Technology designed for compact, integral mounting. These transmitters feature a rugged Class I, Division 1 / Zone 1 housing with an optional local operator interface designed to make flow meter access easy. Flow meter commissioning is simple and straight-forward with virtually no special programming requirements.

Availability: In stock
Request A Quote

Specification

Micro Motion 2700

Output variables

Mass & volume flow

Net product content / flow

Temperature

Density

Concentration

Power

Self-switching AC/DC input, automatically recognizes supply voltage

85 to 265 VAC, 50/60 Hz, 6 watts typical, 11 watts maximum

18 to 100 VDC, 6 watts typical, 11 watts maximum

Complies with low voltage directive 2006/95/EC per EN 61010-1 (IEC 61010-1) with amendment 2, and Installation (Overvoltage) Category II, Pollution Degree 2

Local display

Standard user interface with 2-line LCD panel

Two optical switches for local operation

Glass or plastic lens options

HART/WirelessHART

Bell 202 signal is superimposed on the primary milliamp output

WirelessHART available via THUM adapter

HART communication is unavailable on Foundation fieldbus and PROFIBUS-PA transmitter versions

Input/output signals - 1 Not intrinsically safe

Analog output option:

- One active 4–20 mA output

- One active frequencty output Frequency output can be configured as a discrete output

Configurable I/O option:

- One or two active 4-20 mA outputs

- One or two active/passive frequency outputs

- One or two active/passive discrete outputs

- One discrete input

Input/output signals - 2 Intrinsically safe

Analog output option:

- One passive 4-20 mA output

- One passive frequency output

- Frequency output can be configured as a discrete output

Foundation™ fieldbus (Obsolete)

- optionally non-incendive

- One Foundation fieldbus H1 outpu

PROFIBUS-PA (Obsolete)

One PROFIBUS-PA output

Application types

Continuous process control

Custody transfer

Two-phase flow/entrained gas

Meter verification

SIS Certified

Hazardous approvals

Class I, Div. 1

Class I, Div. 2

Zone 1

Zone 2

Mounting options

Field-mount

- Integrally mounted to a Micro Motion F-Series, R-Series, or H-Series sensor

- Remotely mounted to any 4-wire or 9-wire Micro Motion Coriolis sensor
