Powered by MVD Technology, DIN rail-mounted transmitters easily fit into control room panels. A simple four-wire connection to the sensors for power and signal eliminates the expense of custom cabling
Specification

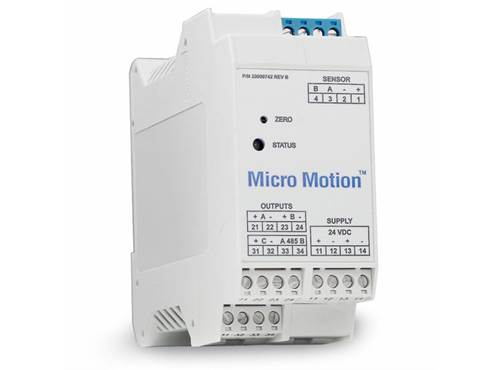

Micro Motion 1500
Available Outputs
Model 1500 : for applications requiring one flow rate variable ( in milliamp and a frequency/pulse outputModel 2500 : for applications requiring simultaneous monitoring of multiple flow variables in combinations of outputs (mill
Housing
Polyamide PA 6.6
Power
Minimum 19.2 to28.8 VDC
6.3 watts
Meets Installation (Overvoltage) Category II, Pollution Degree 2 requirements
Hazardous approvals
Suitable for non-hazardous environments only
Mounting options
Remote-mount control room only
- Mounted on 35 mm rail
- Rail must be grounded
Application types
- Continuous process control
- Two-phase flow/entrained gas
- Filling &dosing
- Meter verification
Input/output signals
One active 4–20 mA output
One active frequency output
HART
Bell 202 signal is superimposed on the primary milliamp output
