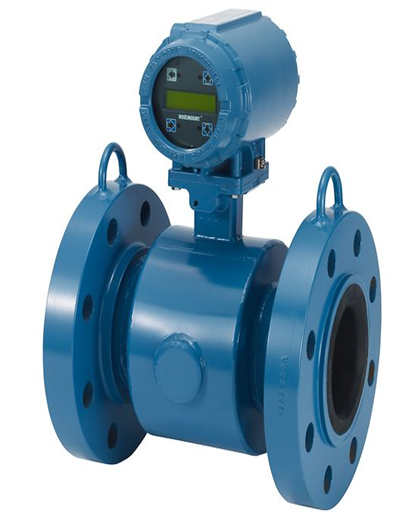

Rosemount 8705 Flanged Magnetic Flow Meter Sensors

Rosemount 8705 Flanged Magnetic Flow Meter Sensors provide long-lasting, reliable performance in even the most challenging applications. An all-welded construction provides a hermetic seal that protects against moisture and other contaminants. The sealed housing ensures maximum sensor reliability by protecting all internal components and wiring from even the most aggressive environments. A removable and replaceable terminal block enables easy repair in the field without the need to replace the entire meter.

Availability: In stock
Request A Quote

Specification

Rosemount 8705 Flanged Magnetic Flow Meter Sensors

Standard Specification

For maximum protection, a fully welded sensor housing provides a hermetic seal

Avoid process shutdown with a removable and replaceable terminal block that enables repairs in the field

Capture any potential process fluid leakage with optional secondary containment compartments to surround electrodes

Ensure reliability in the harshest environments with an all-welded sensor housing

Guard against installation damage and leading-edge wear with an optional lining protector

Minimize maintenance and repair with an obstructionless design featuring no moving parts

Accuracy

Up to 0.15% of volumetric flow rate accuracy over 13:1 flow turndowns, 0.25% over 40:1 flow turndown

Interchangeability

Compatible with all 8700 Series transmitters
Compatible with legacy transmitters: 8712D, 8712C, 8732C, 8742C

Liner Materials

PTFE, ETFE, PFA, Polyurethane, Neoprene, Linatex Natural Rubber

Electrode Materials

316L Stainless Steel, Nickel Alloy, Platinum, Tantalum, Titanium

Flange Ratings

ASME B16.5 Class 150-2500DIN PN 10-40AS 2129 Table D and EAWWA C207 Table 3 Class D (30-36 inch only)

Submergence Protection

IP68 (Recommended with sealed cable glands)

Line Sizes

½-36 inch (15-900 mm)
