The Rosemount 3051 transmitter offers benefits of patented technology and industry leading performance. The transmitter can be used for level, pressure, and flow measurement. The transmitter features patented Coplanar technology that enables application flexibility, and ease of installation. The 3051C is designed for direct mounting. With over 10 million installations, the 3051C continues to be one of the most reliable pressure measurement devices ever used in the process industry.
Complete Model Number
Specification

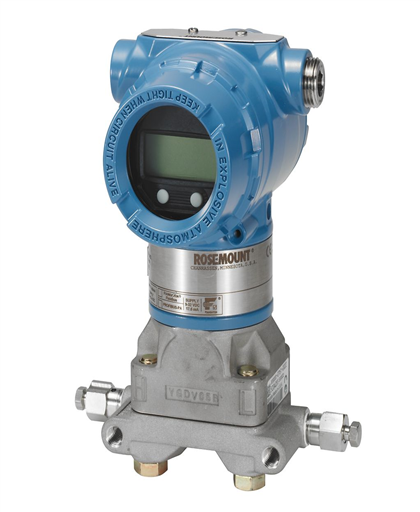

Rosemount 3051CG1A22A1AM5 Pressure Transmitters
Output
4-20 mA with digital signal based on HART Protocol
Low Power, 1-5 V dc with digital signal based on HART Protocol
Low power, 0.8-3.2 V dc with digital signal based on HART Protocol, optional
Accuracy
1: +/-0.10% of span
2-4: +/-0.04% of span
5: +/-0.065% of span
Range
0-.83 inches H2O to 2000 psig
0-0.1 inches H2O to 0-2000 psid
Power
4-20 mA: 10.5-42.4 V dc with no load
Low Power: 6-12 V dc with no load
Materials
Sensor Wetted Parts: SST, Hastelloy, Monel, Tantalum
Fluid
Sensor fill fluid: Silicone, Inert (Halocarbon)
Mounting
Coplanar and Traditional flanges
Adapters: Cadmium and Nickel-plated CS, 316 SST
Recently Configured Model Number
Model Number | Transmitter Type | Measurement Type | Pressure Range/Span | Brand | Category | Availability | RFQ |
---|---|---|---|---|---|---|---|
3051CG1A22A1AM5E5 | Coplanar Pressure Transmitter | Gage | -25 to 25inH2O (-62.2 to 62.2 mbar) -25 to 25inH2O (-62.2 to 62.2 mbar) 0 to 30psia (0 to 2.06 bar) | Rosemount | Pressure Transmitters | Yes | RFQ |
Showing 1 out of 1 pages
