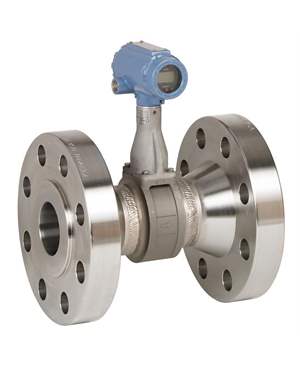

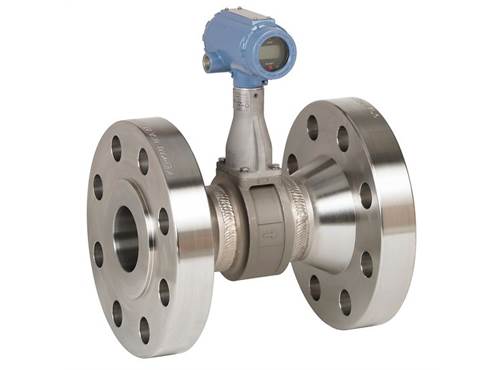

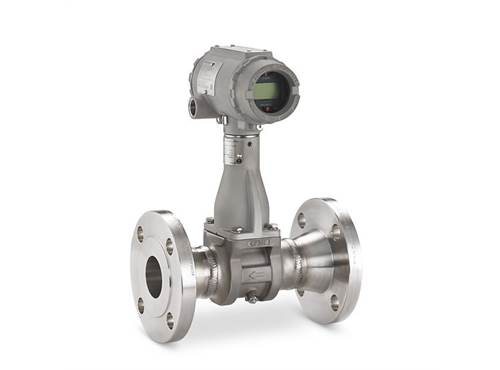

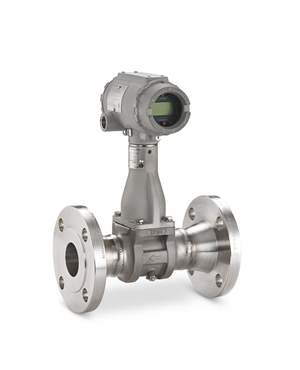

Rosemount 8800 Flanged Vortex Flow Meter

Flow Meter Accuracy

± 0.70% of mass flow rate in water using 8800 MultiVariable (MTA/MCA option)

± 2% of mass flow in steam using 8800 MultiVariable (MTA/MCA option)

± 1.3% of rate at 30 psia through 2,000 psia in steam using 8800 MultiVariable (MPA option)

± 1.2% of rate at 150 psia in steam using 8800 MultiVariable (MCA option)

± 1.3% of rate at 300 psia in steam using 8800 MultiVariable (MCA option)

± 1.6% of rate at 800 psia in steam using 8800 MultiVariable (MCA option)

± 2.5% of rate at 2,000 psia in steam using 8800 MultiVariable (MCA option)

± 0.65% of volumetric rate for liquids (uncompensated)

± 1% of volumetric rate for gas and steam (uncompensated)

Turndown

38:1

Output

4-20 mA with HART® 5 or 7

4-20 mA with HART® 5 or 7 and scalable pulse output

FOUNDATION fieldbus ITK6 with 2 Analog Input blocks, 1 Backup Link Active Scheduler function block, 1 Integrator function block, and 1 PID function block

Modbus RS-485 with device status and 4 variables

Wetted Material

Stainless Steel; 316 / 316L and CF3M

Nickel Alloy; C-22 and CW2M

High Temp Carbon Steel; A105 and WCB

Low Temp Carbon Steel; LF2 and LCC

Duplex; UNS S32760 and 6A

Consult factory for other wetted material

Flange Options

ANSI Class 150 to 1500

DIN PN 10 to PN 160

JIS 10K to 40K

Flanges are available in a variety of facings

Consult factory for additional flange ratings

Operating Temperatures

-330°F to 800°F (-200°C to 427°C)

Line Size

1/2" - 12" (15 - 300mm)
