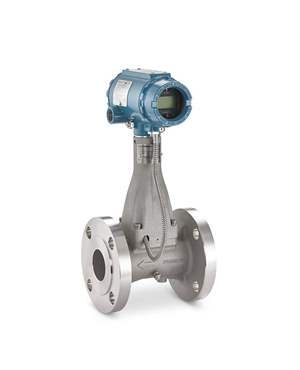

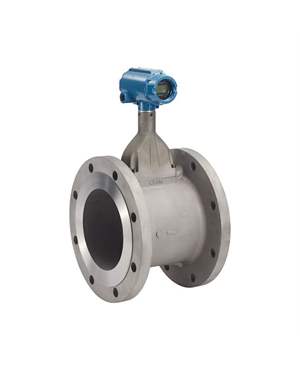

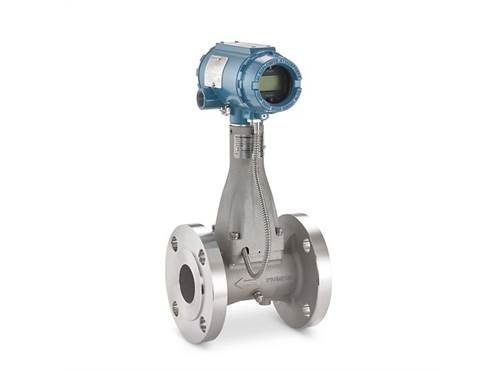

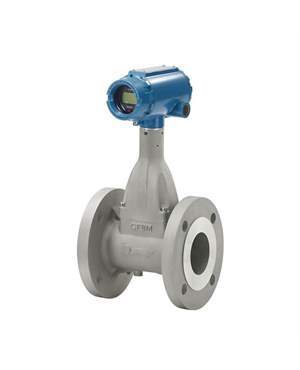

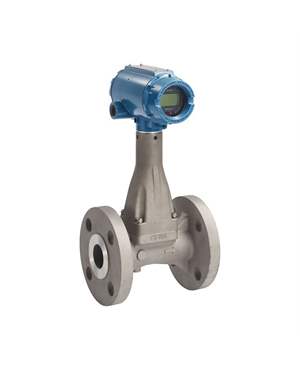

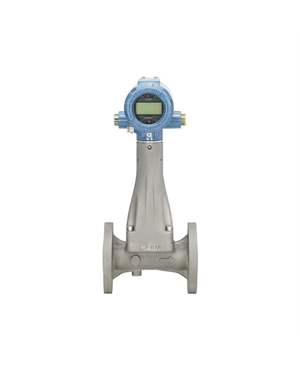

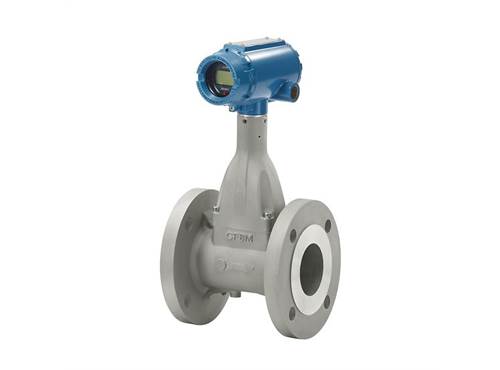

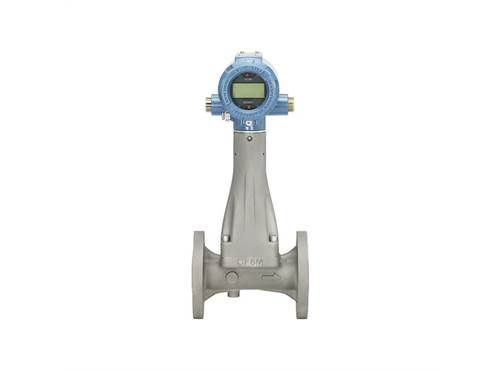

Rosemount 8600 Utility Vortex Flow Meters

The Rosemount 8600 Vortex flow meter is optimized for general purpose flow metering and utility applications including clean fluids and steam flow. The 8600 Vortex meter offers enhanced reliability and simplified maintenance with superior vibration immunity without any moving parts. Installation is easy with no impulse lines or zeroing required and internal verification of both the electronics and sensor add enhanced process insight.

Availability: In stock

Flow Meter Accuracy

± 0.75% of volumetric rate for liquids
± 1% of volumetric rate for gas and steam

± 2% of rate for mass flow on steam using 8600 MultiVariable (MTA option)

Turndown

30:1

Output

4-20 mA with HART® 5

4-20 mA with HART® 5 and scalable pulse output

Wetted Material

Stainless Steel – CF3M & CF8M

Flange Options

ANSI Class 150 and 300

DIN PN 10 and PN 40

Process Temperature Limits

-58°F to 482°F (-50°C to 250°C)

Temperature Sensor Range Using 8600 MultiVariable (MTA option)

-40 to 800°F (-40 to 427°C)

Line Size

1 to 8-in; 25 to 200 mm

Features

Ensure reliability and cut costs with no moving parts to repair or maintain

Eliminate impulse lines and plugging issues with inline technology

Simplify installation with no impulse lines or field calibration or zeroing required

Cover a broad span of flow rates with wide rangeability

Electronics verification enables simplified troubleshooting

Perform easy maintenance with replaceable sensors

Remote mount electronics offered for easy access
