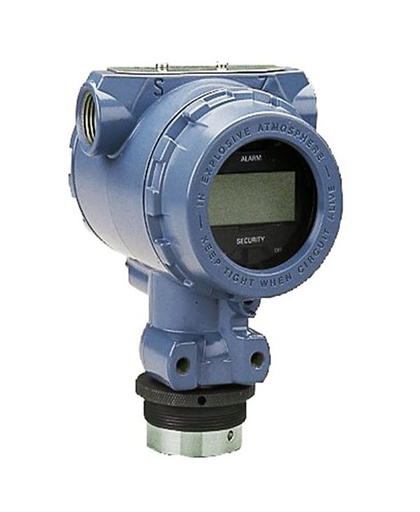

Rosemount 2090P Pulp and Paper Pressure Transmitter

Standard Specification

1 in. flush mount compatible with PMC process connection or 1 1/2 in. threaded mounting connection available

Calibrates as low as 0 to 1.5 psi (0.1 bar) and as high as 0 to 300 psi (20.7 bar) for application flexibility

Lightweight, compact design for easy installation

Fully configurable LCD displays process variable, percent of range and diagnostic message

Communicates via 4-20 mA HART® protocol for streamlined host integration

Warranty

Up to 5-year limited warranty

Rangedown

Up to 20:1

Communication Protocol

4-20 mA HART®

Measurement Range

Up to 300 psig (20,7 bar) Gage, Up to 300 psia (20,7 bar) Absolute

Process Wetted Material

316L SST

Diagnostics

Basic Diagnostics

Certifications/Approvals

Hazardous location, see full specs for complete list of certifications

Process Wetted Material

316L SST

Diagnostics

Basic Diagnostics

Certifications/Approvals

Hazardous location, see full specs for complete list of certifications
