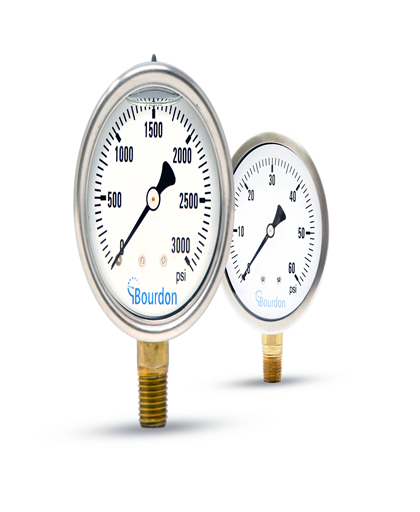

Industrial Series Liquid Filled MAX series Bourdon Gauges

Availability: In stock
Specification
Specifications: Standard Version: 4-1/2"

Nominal size
  • MAX3: 2.5"
  • MAX5: 4"
Measurement range:-
  • Vacuum/Compound - 10,000 psi
Pressure limitation:-
  • Steady: 75% of full scale value
  • Fluctuating: 65% of full scale value
  • Short time: 100% of full scale value
Accuracy:-
  • 2.5": +/- 1.6% of span
  • 4": +/- 1.0% of span
Protection rating:-
  • IP 65
Process Connection:-
  • MAX: Copper Alloy
Bourdon tube:-
  • MAX: Copper Alloy - pressures < 6,000 psi
    Stainless Steel - pressures > 6,000 psi
Case:-
  • Stainless Steel
Movement:-
  • Copper Alloy
Window:-
  • Acrylic
Window gasket:-
  • Elastomer
Dial:-
  • Aluminium, white
Pointer:-
  • Aluminum, black
Temperature :-
  • Ambient : -4°F ...+140°F (-20°C...+60°C) - Glycerin Filled
    -40°F...+140°F (-40°C...+60°C) - Silicone Filled
  • Medium : max. +140°F
Thermal drift:-
  • ± 0.4% F.S. / 10 K (reference : 20°C)
Description
Main Features
  • Stainless Steel case and copper alloy socket
  • Liquid-filled for applications with pulsations or vibrations
  • Ranges up to 10,000 psi

Applications
  • Adverse service conditions where pulsation or vibration exist
  • Hydraulics
  • Compressors
  • Pneumatics
  • Pumps
  • Diesel Engines
  • Suitable for gaseous or liquid media that will not obstruct the pressure system
Technical Data-Sheet
pdf-dwd GAUGE-Bourdon-MAX3-MAX5.pdf
