Foxboro 11DM Pneumatic Differential Pressure Transmitter
Foxboro Range
Temperature Transmitters
Pneumatic Transmitters
Electronic Transmitters
Differential Pressure Transmitters
Gauge Pressure Transmitters
Quick Enquiry
Model No: 11DM
Factory New
Reconditioned
New Surplus
Submit
Free Expert Consultation
Quick Turnaround Shipment
zoom

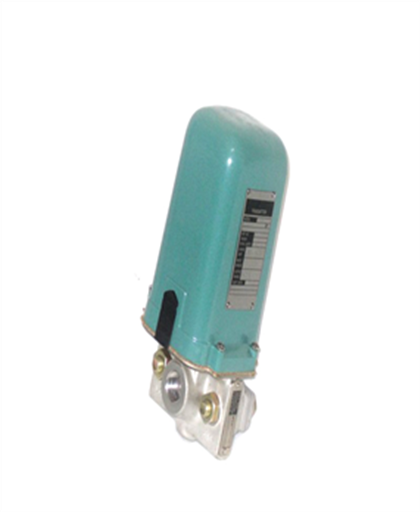

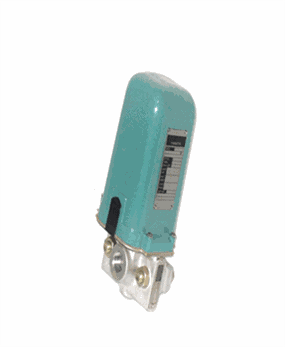

Foxboro 11DM Pneumatic Differential Pressure Transmitter
Availability:
In stock
Specification
Description
Technical Data
-Sheet
Build Model #
Click here to Build Model
Specification
Accuracy:-
+0.25% of calibrated span
NACE:-
Compliance to NACE Standard MR-01-75
Ambient Temperature Limits:-
-40 and +120°C (-40 and +250°F)
Body Temperature Limits:-
-40 and +190°C (-40 and + 375°F).
Repeatability:-
Wetted Parts code S: 0.1% of calibrated span.
Wetted Parts code M: 0.2% of calibrated span.
Span Limits:-
0.07 and 0.56 MPa or 10 and 80 psi
0.14 and 1.4 MPa or 20 and 200 psi
0.3 and 2.8 MPa or 40 and 400 psi
0.7 and 7 MPa or 100 and 1000 psi
1.4 and 14 MPa or 200 and 2000 psi
Material:-
Cover: High-impact, glass-filled polycarbonate.
Body Bolts: Alloy steel per ASTM A193 Grade B7.
Process Connectors (b):-
1/4 NPT
1/2 NPT
R1/4 (metric)
R1/2 (metric)
Machined for 9/16-18 Aminco fitting (b)
Air Connections:-
The supply and output connections are tapped for 1/ 4 NPT
Optional Suffix
Zero Elevation
Zero Suppression
Description
The 11 DM Series Pneumatic Differential Pressure Transmitters measure differential pressure and transmit a proportional pneumatic signal.
Technical Data-Sheet
Foxboro_Pneumatic-Instruments-CATALOG.pdf
Configure 11DM Product
Build Model
Your Model Number:
Required*
Optional
Required
Your Model Number:
Attribute
Value
Select value to configure
Transmitter type
*
SPAN LIMITS
*
WETTED PARTS
*
PROCESS CONNECTIONS
*
11DM
Medium Range Measurement
B
20 And 200 psi, 0.14 And 1.4 MPa, 1.4 And 14 bar or kg/cm²
C
40 And 400 psi, 0.3 And 2.8 MPa, 3.0 And 28 bar or kg/cm²
D
100 And 1000 psi, 0.7 And 7.0 MPa, 7.0 And 70 bar or kg/cm²
E
200 And 2000 psi, 1.4 And 14 MPa, 14 And 140 bar or kg/cm²
S
AISI Type 316 Stainless Steel
D
AISI Type 316 Stainless Steel Except Monel Bellows Assembly
1
Tapped For 1/4 NPT
2
Tapped For 1/2 NPT
3
Tapped For R 1/4
4
Tapped For R 1/2
Transmitter type
*
11DM
Medium Range Measurement
SPAN LIMITS
*
B
20 And 200 psi, 0.14 And 1.4 MPa, 1.4 And 14 bar or kg/cm²
C
40 And 400 psi, 0.3 And 2.8 MPa, 3.0 And 28 bar or kg/cm²
D
100 And 1000 psi, 0.7 And 7.0 MPa, 7.0 And 70 bar or kg/cm²
E
200 And 2000 psi, 1.4 And 14 MPa, 14 And 140 bar or kg/cm²
WETTED PARTS
*
S
AISI Type 316 Stainless Steel
D
AISI Type 316 Stainless Steel Except Monel Bellows Assembly
PROCESS CONNECTIONS
*
1
Tapped For 1/4 NPT
2
Tapped For 1/2 NPT
3
Tapped For R 1/4
4
Tapped For R 1/2
Your Model Number:
11DM
Optional
Your Model Number:
General Feature Selection
Quality Assurance Certificates
Signal Levels - In Place Of 3-15 psi
Supplemental Instrument Tag
Regulators, Filters, And Gauges
Integral Air Set Options
None
None
L
Zero Elevation (Span Suppression)
R
Zero Suppression (Span Elevation)
D-SSS-G
Hydrogen Service Hydrogen Service: Transmitter Supplied With Gold-Plated Capsule To Reduce Hydrogen Penetration. Gold Plating Is Not To Be Used In Corrosion Protection.
D-SSS-2V4
High Damping High Damping: Capsule Filled With High Viscosity Silicone Fluid (2200 Centistoke At 77 Degrees F). Provides Up To Four Times Normal Damping.
DG-5
High Process Temperature High Process Temperature: Glass-Reinforced ptfe Gaskets Fitted For Operation At Body Temperatures Up To 190 Degrees C (375 F).
HTF
High Temperature Fill High Temperature Fill: Process Temperature Limits 0 And 300 Degrees C (32 And 580 F) For Positive Pressures; 0 And 200 Degrees C (32 And 400 F) For Vacuum Service. Transmitted Filled With DC 704 Or Equivalent.
LTF
Low Temperature Fill Low Temperature Fill: Process Temperature Limits -60 And +80 Degrees C (-75 And +180 F). Transmitter Filled With FC 77 Fluorinert.
WTF
Wide Temperature Fill Wide Temperature Fill: Process Temperature Limits -40 And +232 Degrees C (-40 And +450 F). Transmitter Filled With Wide Temperature Silicone.
MR-01
NACE Standard MR-01-75 Process Wetted Parts Comply With The National Association Of Corrosion Engineers (NACE) Standard MR-01-75.
B7M
NACE Class II Bolting NACE Class II Bolting In Accordance With ASTM A193 GR B7M And A194 GR 2HM (Nuts).
TR3-27
Optional Output Signal, 3-27 psi Optional Output Signal Of 3 To 27 psi (20.7 To 186 kPa).
TR15-3
Reverse Output, 15-3 psi Optional Output Signal, Reverse, 15 To 3 psi (100 To 20 kPa, 1.0 To 0.2 bar or kg/cm2).
SSB
Stainless Steel Body Bolting 17-4 PH Stainless Steel Bolting Through Body And Process Connections.
SSB-A
Stainless Steel Mtg Bracket Bolting AISI Type 316 Stainless Steel Bolting Through Mounting Bracket.
OTT
Test Tee Output Signal Test Tee.
DG-6
Viton A Gaskets Viton A Capsule Gasket And Force Bar Seal Gasket.
DG-7
ptfe Gaskets Corrosion Resistant ptfe Capsule Gasket And Force Bar Seal Gasket.
NS-C
Nuclear Service Cleaning Nuclear Service Cleaning - Transmitter Cleaned, Assembled, Calibrated And Packed In A Clean Room, Or Using Acceptable Alternate Procedures.
OS-W
Special Degreasing Special Degreasing - Transmitter Is Cleaned, Assembled, Calibrated And Packed In A Clean Room, Or Using Acceptable Alternative Procedures.
OS-FC
Oxygen Service Preparation Oxygen Service Preparation - Transmitter Cleaned, Assembled, Calibrated And Packed In A Clean Room, Or Using Acceptable Alternative Procedures. Capsules Fluorolube Filled.
MMB
Monel Bolting K-Monel Studs And Nuts For Both Body And Process Connections.
LD
Lower Spans Span Adjustment As Low As 10 psi, 70 kPa, 0.7 bar or kg/cm2.
FBP-T
Tantalum Force Bar Seal Protection Tantalum Sheath Protection Over Cobalt-Nickel Force Bar Seal.
None
None
CERT-A
Compliance Certificate The certificate states that the instrument is in compliance with all Invensys Foxboro published documentation (PSS, MI, DP, PL, etc.).
