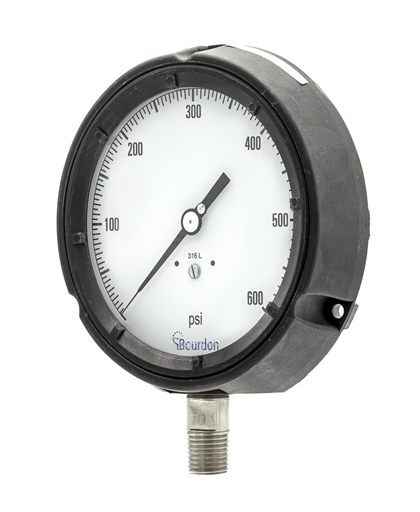

Bourdon MPG6-MPJ6-MPE6-MPF6 Process Pressure Gauges

Availability: In stock
Specification
Technical Data

Nominal size:-
  • 130 mm (4" ½)

Measurement range:-
  • MPE/MPF/MPJ : -1 ... 0 to 0 ... 600 bar
  • MPG : -1 ... 0 to 0 ... 1600 bar

Pressure limitation
Ranges ≤ 600 bar:-
  • Steady : 100% of full scale value
  • Fluctuating : 90% of full scale value
  • Short time : 130% of full scale value

Ranges > 600 bar:-v
  • Steady : 75% of full scale value
  • Fluctuating : 65% of full scale value
  • Short time : 100% of full scale value

Accuracy:-
  • Grade 2A (according ASME B40.1, ± 0.5%)

Protection rating:-
  • IP 67 (EN 60529)

Process Connection:-
  • MPG/MPE : Stainless steel 1.4404 (AISI 316L)
  • MPJ/MPF : Monel 400

Bourdon tube:-
  • MPG/MPE : Stainless steel 1.4404 (AISI 316L)
  • MPJ/MPF : Monel 400

Case:-
  • MPG/MPJ : Polypropylene
  • MPE/MPF : Phenolic

Bezel ring:-
  • Polypropylene

Movement:-
  • Stainless steel

Window:-
  • Laminated safety glass

Window gasket:-
  • Elastomer

Dial:-
  • Aluminium, white

Pointer:-
  • Aluminium, black
  • Adjustable micro metric pointer (P ≥ 1.6 bar)

Temperature:-
  • Ambient : -20 ... +70°C
  • Medium : -40 ... +200°C (not filled)
  • For liquid filled version see ordering details.
  • The case temperature must not exceed +70°C
  • Storage : -40 ... +70°C

Thermal drift:-
  • ± 0.4% F.S. / 10 K (reference : 20°C)

Safety:-
  • Solid front gauge with baffle wall and blow-out back.
  • Fulfills the requirements of S3 safety gauges according to EN 837-1
Description
Main Features:
  • For corrosive gasses and liquids
  • Grade 2A (ASME B40.1)
  • Solid front gauge
  • Wetted parts Stainless steel (MPG/MPE) or Monel (MPJ/MPF)
  • Case material Polypropylene (MPG/MPJ) or Phenolic (MPE/ MPF) for aggressive atmosphere and harsh environment
  • Option: liquid filled for ap- plications with pulsations or vibrations
Applications:
  • Oil & Gas / Chemical
  • Water & Waste water
  • Energy
