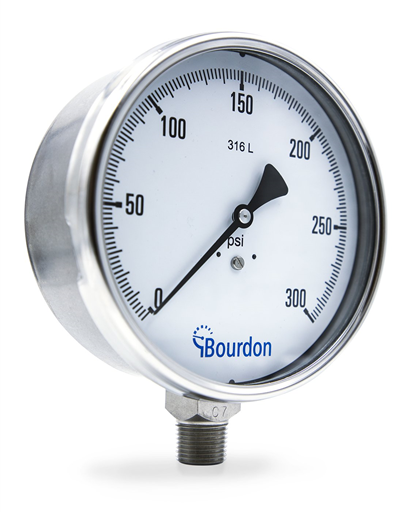

Bourdon MIX7 - MIM7 Industrial Pressure Gauges
Technical Data
Nominal size:-
150 mm
Measurement range:-
MIX : -1 ... 0 to 0 ... 1600 bar
MIM : -1 ... 0 to 0 ... 600 bar
Pressure limitation
Ranges = 600 bar:-
Steady : 100% of full scale value
Fluctuating : 90% of full scale value
Short time : 130% of full scale value
Ranges > 600 bar:-
Steady : 75% of full scale value
Fluctuating : 65% of full scale value
Short time : 100% of full scale value
Accuracy:-
Class 1 (according EN837-1)
Protection rating:-
IP 65 (EN 60529)
Process Connection:-
MIX : Stainless steel 1.4404 (AISI 316L)
MIM : Monel 400
Bourdon tube:-
MIX : Stainless steel 1.4404 (AISI 316L)
MIM : Monel 400
Case:-
Stainless steel 1.4301 (AISI 304)
Option : stainless steel 1.4404 (AISI 316L)
Bezel ring:-
Stainless steel 1.4301 (AISI 304)
Option : stainless steel 1.4404 (AISI 316L)
Movement:-
Stainless steel
Window:-
Instrument glass
Window gasket:-
Elastomer
Dial:-
Aluminium, white
Temperature:-
Ambient : -20 ... +70°C
Medium : -40 ... +200°C (not filled)
For liquid filled version see ordering details.
The case temperature must not exceed +70°C
Storage : -40 ... +70°C
Pointer:-
Aluminium, black
Thermal drift:-
± 0.4% F.S. / 10 K (reference : 20°C)
Safety:-
S1 according EN837-1
Pressure gauge with blow-out device
