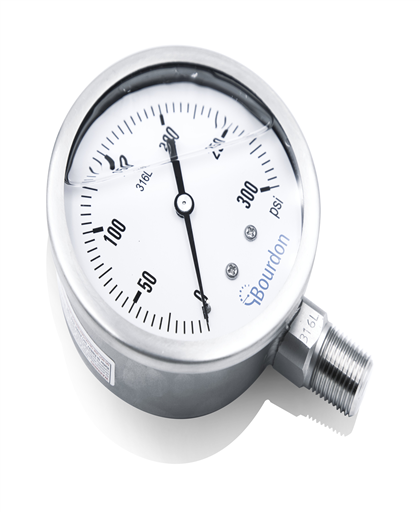

Bourdon MEX5 - MEM5 Industrial Pressure Gauges
Availability: In stock
Specification
Technical Data
Nominal size:-
Measurement range:-
Pressure limitation
Ranges ≤ 600 bar:-
Ranges > 600 bar:-
Accuracy:-
Protection rating:-
Process Connection:-
Bourdon tube:-
Case:-
Bezel ring:-
Movement:-
Window:-
Window gasket:-
Dial:-
Pointer:-
Temperature:-
Thermal drift:-
Safety:-
Nominal size:-
- 100 mm
Measurement range:-
- MEX : -1 ... 0 to 0 ... 1600 bar
- MEM : -1 ... 0 to 0 ... 600 bar
Pressure limitation
Ranges ≤ 600 bar:-
- Steady : 100% of full scale value
- Fluctuating : 90% of full scale value
- Short time : 130% of full scale value
Ranges > 600 bar:-
- Steady : 75% of full scale value
- Fluctuating : 65% of full scale value
- Short time : 100% of full scale value
Accuracy:-
- Class 1 (according EN837-1)
Protection rating:-
- IP 65 (EN 60529)
Process Connection:-
- MEX : Stainless steel 1.4404 (AISI 316L)
- MEM : Monel 400
Bourdon tube:-
- MEX : Stainless steel 1.4404 (AISI 316L)
- MEM : Monel 400
Case:-
- Stainless steel 1.4301 (AISI 304)
- Option : Stainless steel 1.4404 (AISI 316L)
Bezel ring:-
- Stainless steel 1.4301 (AISI 304)
- Option : stainless steel 1.4404 (AISI 316L)
Movement:-
- Stainless steel
Window:-
- Instrument glass
Window gasket:-
- Elastomer
Dial:-
- Aluminium, white
Pointer:-
- Aluminium, black
Temperature:-
- Ambient : -20 ... +70°C
- Medium : -40 ... +200°C (not filled)
- For liquid filled version see ordering details.
- The case temperature must not exceed +70°C
- Storage : -40 ... +70°C
Thermal drift:-
- ± 0.4% F.S. / 10 K (reference : 20°C)
Safety:-
- S1 according EN837-1
- Pressure gauge with blow-out device
Description
Main Features:
- For corrosive gasses and liquids
- Class 1 according to EN 837-1
- Wetted parts: Stainless steel (MEX) or Monel (MEM)
- Lloyds Register approval
- Option : liquid-filled for ap- plications with pulsations or vibrations
- Option : case material 1.4404 (316L) for aggressive atmosphere
- Food and Beverage
- Laboratory & Medical
- Oil & Gas / Chemical
- Water & Waste water
- Energy
- Transportation and Logistics
- Machinery
Technical Data-Sheet
GAUGE-Bourdon-MEX5-MEM5.pdf
