Applications:
Specification

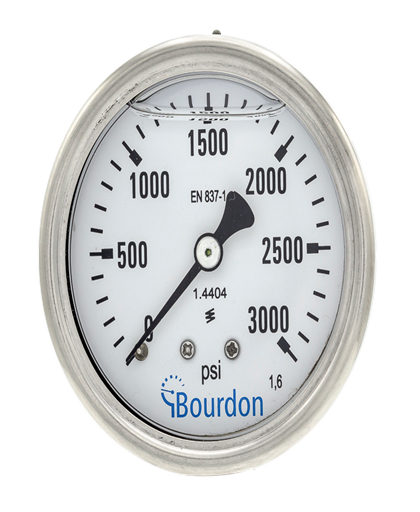

Bourdon MEX2 - MEX3 - MEM3 Industrial Pressure Gauge
Technical Data
Nominal size
MEX2 : 50 mm
MEX3/MEM3 : 63 mm
Measurement range:-
MEX2/MEX3 : -1 ... 0 to 0 ... 1000 bar
MEM3 : -1 ... 0.6 to 0 ... 400 bar
Accuracy:-
Class 1.6 (according EN837-1)
Protection rating:-
IP 65 (EN 60529)
Pressure limitation:-
Steady : 75% of full scale value
Fluctuating : 65% of full scale value
Short time : 100% of full scale value
Process Connection:-
MEX : Stainless steel 1.4404 (AISI 316L)
MEM : Monel 400
Bourdon tube:-
MEX : Stainless steel 1.4404 (AISI 316L)
MEM : Monel 400
Case:-
Stainless steel 1.4301 (AISI 304)
Option : stainless steel 1.4404 (AISI 316L)
Bezel ring:-
Stainless steel 1.4301 (AISI 304)
Option : stainless steel 1.4404 (AISI 316L)
Movement:-
Stainless steel
Window:-
Instrument glass
Window gasket:-
Elastomer
Dial:-
Aluminium, white
Pointer:-
Plastic, black
Temperature:-
Ambient : -20 ... +70°C
Medium : -40 ... +200°C (not filled)
For liquid filled version see ordering details.
The case temperature must not exceed +70°C
Storage : -40 ... +70°C
Thermal drift:-
± 0.4% F.S. / 10 K (reference : 20°C)
Safety:-
S1 according EN837-1
(with window polycarbonate or laminated safety glass)
