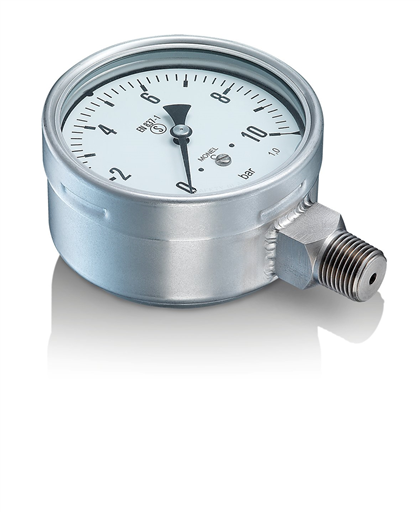

Bourdon MEP5 Pressure Gauges
Technical Data
Housing -
Nominal size
4" (100 mm)
Case Material:-
Stainless steel AISI 316L / 1.4404
Bezel ring material:-
Stainless steel AISI 316L / 1.4404
Window material:-
Laminated safety glass
Window gasket:-
Elastomer
Protection rating (EN 60529):-
IP65, IP67 with compensation membrane (0763)
Dial:-
White, aluminium
Pointer:-
Black, aluminium
Movement material:-
Stainless Steel
Safety according to EN 837-1:-
S3Safety pattern gauge with solid front and pressure relief back
Temperature -
Ambient temperature:-
-4°F ... +158°F
Storage temperature:-
-40°F ... +158°F
Media temperature:-
-40°F ... +392°F (not filled)
Wetted parts -
Process connection material:-
Stainless steel AISI 316L / 1.4404
Bourdon tube:-
Stainless steel AISI 316L / 1.4404
Performance -
Accuracy according to EN 837-1:-
Class 1
Min. measuring range:-
0 ... 10 psi
Max. measuring range:-
0 … 20000 psi
Thermal drift (reference: +67 °F) :-
± 0.4 % FS/10K
Type of pressure:-
Gauge
Compound
Vacuum
Pressure limitation (ranges = 6000psi):-
Steady: 100 % of full scale value
Fluctuating: 90 % of full scale value
Short time: 130 % of full scale value
Pressure limitation (ranges > 6000psi):-
Steady: 75 % of full scale value
Fluctuating: 65 % of full scale value
Short time: 100 % of full scale value
Weight -
Gauge:-
1.32 lbs unfilled
1.87 lbs filled
Approval / Conformities -
ATEX:-
Ex II 2 GDc-IM2c
Further information can be found in the ATEX approval
