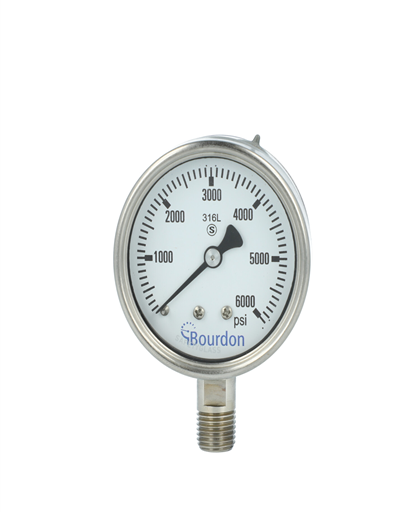

Bourdon MEP3 Pressure Gauges

Nominal size

63mm

Case Material:-

Stainless steel 1.4404 / AISI 316L

Bezel ring material:-

Stainless steel 1.4404 / AISI 316L

Window material:-

Laminated safety glass

Polycarbonate, optional

Window gasket:-

Elastomer

Protection rating (EN 60529):-

IP65, IP67 with compensation membrane (0763)

Dial:-

White, aluminium

Pointer:-

Black, aluminium

Movement material:-

Stainless Steel

Safety according to EN 837-1:-

S3 Safety pattern gauge with solid front and pressure relief back

Ambient temperature:-

-20°C ... +70°C

Storage temperature:-

-40°C ... +70°C

Media temperature:-

-40°C ... +200°C (not filled)

Process connection material:-

Stainless steel 1.4404 / AISI 316L

Bourdon tube:-

Stainless steel 1.4404 / AISI 316L

Accuracy according to EN 837-1:-

Class 1.6

Min. measuring range:-

-1 ... 0 bar

Max. measuring range:-

0 ... 400 bar

Thermal drift (reference: +20 °C) :-

± 0.4 % FS/10K

Type of pressure:-

Gauge

Compound

Vacuum

Pressure limitation:-

Steady: 75 % of full scale value

Fluctuating: 65 % of full scale value

Short time: 100 % of full scale value

Gauge:-

180 g unfilled

280 g filled

ATEX:-

Ex II 2 GDc-IM2c
