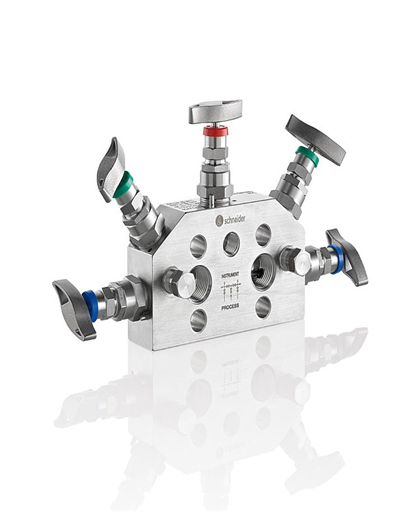

AS-Schneider 5D Type 5 Valve Manifolds
CoplanarTM Style with 'Natural Gas Metering Pattern' - Female x Flanged
AS-Schneider 5 Valve Integral Manifolds with Natural Gas Metering Pattern - CoplanarTM Style are designed for direct mounting to Rosemount 2051/3051 CoplanarTM Pressure Transmitters. The standard vent connection is 1/4 NPT female. Pipe plugs are not installed as standard.
A diverse range of options and the relevant accessories are available, please see below Mounting Bracket Kits and Accessories.
Connections, materials, valve head unit design and further options are available, please see below Ordering Information or more detailed under.
AS-Schneider 5 Valve Manifolds with Natural Gas Metering Pattern - CoplanarTM Style are designed for direct mounting to rosemount 2051/3051 CoplanarTM Pressure Transmitters. The innovative design of the valve head units gives logn service life and a smooth, low-torque operation. The AS-Schneider 5 Valve Manifolds, as standard, are rated to 420 bar (6,092 psi). AS-Schneider also provides the manifolds for sour gas service (acc. to NACE MR0175/MR0103 and ISO 15156), degreased and lubricated for oxygen serivce as well as manifolds for fugitive emission applications.
