Model No: 3051CD3A22A1AM5
Factory New
Reconditioned
New Surplus
Submit
Free Expert Consultation
Quick Turnaround Shipment
zoom

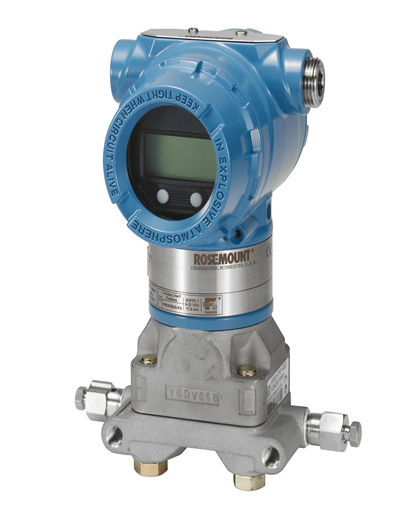

Rosemount 3051CD3A22A1AM5 Pressure Transmitters
Availability:
In stock
Specification
Description
Build Model #
Click here to Build Model
Specification
Description
Build Model
Add to RFQ Cart
Add to RFQ Cart
Rosemount 3051CD3A22A1AM5 Pressure Transmitters
View Cart
Continue Shopping
Request For Quote
Configure 3051CD3A22A1AM5 Product
Build Model
Your Model Number:
Required*
Optional
Required
Your Model Number:
Attribute
Value
Select value to configure
Measurement Type
*
Pressure Range
*
Transmitter Output
*
Process Flange Type | Flange Material | Drain Vent
*
Isolating Diaphragm
*
O-Ring
*
Sensor Fill Fluid
*
Housing Material | Conduit Entry Size
*
D
Differential
G
Gage
A
Absolute
0
-3 to 3 inH2O (-7.47 to 7.47 mbar) 0 to 5 psia (0 to 0.34 bar)
1
-25 to 25inH2O (-62.2 to 62.2 mbar) -25 to 25inH2O (-62.2 to 62.2 mbar) 0 to 30psia (0 to 2.06 bar)
2
-250 to 250inH2O(-623 to 623 mbar) -250 to 250inH2O(-623 to 623 mbar) 0 to 150 psia(0 to 10.34 bar)
3
-1000 to 1000inH2O(-2.5 to 2.5 bar) -393 to 1000inH2O(-1.0 to 2.5 bar) 0 to 800 psia(0 to 55.2 bar)
4
-300 to 300 psi(-20.7 to 20.7 bar) -14.2 to 300 psi(-1.0 to 21 bar) 0 to 4000 psia(0 to 275.8 bar)
5
-2000 to 2000 psi (-137.9 to 137.9 bar) -14.2 to 2000 psig (-1.0 to 137.9 bar)
A
4-20 mA with digital signal based on HART protocol
F
FOUNDATION fieldbus protocol
M
Low-Power, 1-5 V dc with Digital Signal Based on HART Protocol
X
Wireless
W
Profibus - PA Protocol
2
Coplanar | SST | SST
3
Coplanar | Cast C-276 | Alloy C-276
4
Coplanar | Cast Alloy 400 | Alloy 400/K-500
5
Coplanar | Plated CS | SST
7
Coplanar | SST | Alloy C-276
8
Coplanar | Plated CS | Alloy C-276
0
Alternate Process Connection
2
316L SST
3
Alloy C-276
4
Alloy 400
5
Tantalum
6
Gold-plated Alloy 400 (Use in Combination with O-Ring Option Code B)
7
Gold-plated SST
A
Glass-filled PTFE
B
Graphite-filled PTFE
1
Silicone
2
Inert fill
A
Aluminum | 1/2-14 NPT
B
Aluminum | M20 x 1.5
D
Aluminum | G1/2
E
Aluminum, Ultra Low Copper | 1/2-14 NPT
F
Aluminum, Ultra Low Copper | M20 x 1.5
J
SST | 1/2-14 NPT
K
SST | M20 x 1.5
M
SST | G1/2
P
Engineered Polymer | N/A
Measurement Type
*
D
Differential
G
Gage
A
Absolute
Pressure Range
*
0
-3 to 3 inH2O (-7.47 to 7.47 mbar) 0 to 5 psia (0 to 0.34 bar)
1
-25 to 25inH2O (-62.2 to 62.2 mbar) -25 to 25inH2O (-62.2 to 62.2 mbar) 0 to 30psia (0 to 2.06 bar)
2
-250 to 250inH2O(-623 to 623 mbar) -250 to 250inH2O(-623 to 623 mbar) 0 to 150 psia(0 to 10.34 bar)
3
-1000 to 1000inH2O(-2.5 to 2.5 bar) -393 to 1000inH2O(-1.0 to 2.5 bar) 0 to 800 psia(0 to 55.2 bar)
4
-300 to 300 psi(-20.7 to 20.7 bar) -14.2 to 300 psi(-1.0 to 21 bar) 0 to 4000 psia(0 to 275.8 bar)
5
-2000 to 2000 psi (-137.9 to 137.9 bar) -14.2 to 2000 psig (-1.0 to 137.9 bar)
Transmitter Output
*
A
4-20 mA with digital signal based on HART protocol
F
FOUNDATION fieldbus protocol
M
Low-Power, 1-5 V dc with Digital Signal Based on HART Protocol
X
Wireless
W
Profibus - PA Protocol
Process Flange Type | Flange Material | Drain Vent
*
2
Coplanar | SST | SST
3
Coplanar | Cast C-276 | Alloy C-276
4
Coplanar | Cast Alloy 400 | Alloy 400/K-500
5
Coplanar | Plated CS | SST
7
Coplanar | SST | Alloy C-276
8
Coplanar | Plated CS | Alloy C-276
0
Alternate Process Connection
Isolating Diaphragm
*
2
316L SST
3
Alloy C-276
4
Alloy 400
5
Tantalum
6
Gold-plated Alloy 400 (Use in Combination with O-Ring Option Code B)
7
Gold-plated SST
O-Ring
*
A
Glass-filled PTFE
B
Graphite-filled PTFE
Sensor Fill Fluid
*
1
Silicone
2
Inert fill
Housing Material | Conduit Entry Size
*
A
Aluminum | 1/2-14 NPT
B
Aluminum | M20 x 1.5
D
Aluminum | G1/2
E
Aluminum, Ultra Low Copper | 1/2-14 NPT
F
Aluminum, Ultra Low Copper | M20 x 1.5
J
SST | 1/2-14 NPT
K
SST | M20 x 1.5
M
SST | G1/2
P
Engineered Polymer | N/A
Your Model Number:
3051C
Optional
Your Model Number:
Wireless Transmit Rate, Operating Frequency and Protocol
Antenna and SmartPower
Extended product warranty
PlantWeb Control Functionality
PlantWeb Diagnostic Functionality
Alternate Flange
Manifold Assembly
Integral mount primary element
Seal Assemblies
Mounting Bracket
Product certifications
Custody Transfer
Shipboard approvals
Bolting Material
Display and Interface Options
Calibration Certification
Material Traceability Certification
Quality Certification for Safety
Configuration Buttons
Transient protection
Low Power Output
Gage Pressure Calibration
Alarm Levels
Pressure Testing
Cleaning Process Area
Vent/Drain Valves
Conduit Plug
RC1/4 RC1/2 Process Connection
Maximum Static Line Pressure
Ground Screw
Drinking Water Approval
NACE Certificate
Conduit Electrical Connector
HART Revision Configuration
None
None
WA3
User Configurable Transmit Rate, 2.4GHz WirelessHART
None
None
WP5
Internal Antenna, Compatible with Green Power Module (I.S. Power Module sold Separately)
None
None
WR3
3-year limited warranty
WR5
5-year limited warranty
None
None
A01
FOUNDATION fieldbus Advanced Control Function Block Suite
None
None
D01
FOUNDATION fieldbus Diagnostics Suite
DA0
Power Advisory HART Diagnostic
None
None
H2
Traditional Flange,316 SST,SST Drain/Vent
H3
Traditional Flange,Cast C-276,Alloy C-276 Drain/Vent
H4
Traditional Flange, Cast Alloy 400,Alloy 400/K-500 Drain/Vent
H7
Traditional Flange,316 SST,Alloy C-276 Drain/Vent
HJ
DIN-Compliant Traditional Flange,SST,7/16 in. Adapter/Manifold Bolting
HK
DIN-Compliant Traditional Flange,SST,10 mm Adapter/Manifold Bolting
HL
DIN-Compliant Traditional Flange,SST,12 mm Adapter/Manifold Bolting
FA
Level Flange,SST,2 in.,ANSI Class 150,Vertical Mount
FB
Level Flange,SST,2 in.,ANSI Class 300,Vertical Mount
FC
Level Flange,SST,3 in.,ANSI Class 150,Vertical Mount
FD
Level Flange,SST,3 in.,ANSI Class 300,Vertical Mount
FP
DIN Level Flange,SST,DN 50,PN 40,Vertical Mount
FQ
DIN Level Flange,SST,DN 80,PN 40,Vertical Mount
None
None
S5
Assemble to Rosemount 306 Integral Manifold
S6
Assemble to Rosemount 304 Manifold or Connection System
None
None
S3
Assemble to Rosemount 405 Compact Orifice Plate
S4
Assemble to Rosemount Annubar™ or Rosemount 1195 Integral Orifice
None
None
S1
Assemble to one Rosemount 1199 seal
S2
Assemble to two Rosemount 1199 seals
None
None
B1
Traditional Flange Bracket for 2-in. Pipe Mounting,CS Bolts
B2
Traditional Flange Bracket for Panel Mounting,CS Bolts
B3
Traditional Flange Flat Bracket for 2-in. Pipe Mounting,CS Bolts
B4
Coplanar Flange Bracket for 2-in. Pipe or Panel Mounting,all SST
B7
B1 Bracket with Series 300 SST Bolts
B8
B2 Bracket with Series 300 SST Bolts
B9
B3 Bracket with Series 300 SST Bolts
BA
SST B1 Bracket with Series 300 SST Bolts
BC
SST B3 Bracket with Series 300 SST Bolts
BE
316SST B4 Bracket with 316SST Bolts
None
None
C6
CSA Explosion-proof, Dust Ignition-proof, Intrinsically Safe, and Division 2
E2
INMETRO Flameproof
E3
China Flameproof
E4
TIIS Flameproof
E5
FM Explosion-proof, Dust Ignition-proof
E6
CSA Explosion-proof, Dust Ignition-proof, Division 2
E7
IECEx Flameproof, Dust Ignition-proof
E8
ATEX Flameproof and Dust
EM
Technical Regulation Customs Union (EAC), Flameproof
I1
ATEX Intrinsic Safety and Dust
I2
INMETRO Intrinsic safety
I3
China Intrinsic Safety
I4
TIIS Intrinsic Safety
I5
FM Intrinsically Safe, Division 2
I6
CSA Intrinsically Safe
I7
IECEx Intrinsic safety
IA
ATEX FISCO Intrinsic safety
IB
INMETRO FISCO Intrinsic safety
IE
FM FISCO Intrinsically Safe
IM
Technical Regulation Customs Union (EAC), Intrinsic Safety
K2
INMETRO Flameproof, Intrinsic Safety
K5
FM Explosion-proof, Dust Ignition-proof, Intrinsically Safe, and Division 2
K6
CSA and ATEX Explosion-proof, Intrinsically Safe, and Division 2 (combination of C6 and K8)
K7
IECEx Flameproof , Dust Ignition-proof, Intrinsic Safety, and Type n (combination of I7, N7 and E7)
K8
ATEX Flameproof, Intrinsic Safety, Type n, Dust (combination of E8, I1 and N1)
KB
FM and CSA Explosion-proof , Dust Ignition-proof, Intrinsically Safe, and Division 2
KD
CSA, FM, and ATEX Explosion-proof, Intrinsically Safe
KM
EAC Explosion-proof, Intrinsically Safe
N1
ATEX Type n and Dust
N3
China Type n
N7
IECEx Type n
None
None
C5
Measurement Canada Accuracy Approval
None
None
SBS
American Bureau of Shipping (ABS) Type Approval
SBV
Bureau Veritas (BV) Type Approval
SDN
Det Norske Veritas (DNV) Type Approval
SLL
Lloyds Register (LR) Type Approval
None
None
L4
Austenitic 316 SST bolts
L5
ASTM A 193, Grade B7M bolts
L6
Alloy K-500 bolts
None
None
M4
LCD Display with Local Operator Interface
M5
LCD Display
None
None
Q4
Calibration certificate
QG
Calibration Certificate and GOST Verification Certificate
QP
Calibration Certificate & Tamper Evident Seal
None
None
Q8
Material Traceability Certification per EN 10204 3.1.B
None
None
QS
Prior-use certificate of FMEDA data
QT
Safety certified to IEC 61508 with certificate of FMEDA data
None
None
D4
Analog Zero and Span
DZ
Digital Zero Trim
None
None
T1
Transient terminal block
None
None
C2
0.8-3.2 V dc Output with Digital Signal Based on HART Protocol
None
None
C3
Gage Calibration (Model 3051CA4 only)
None
None
C4
NAMUR alarm and saturation levels, high alarm
CN
NAMUR alarm and saturation levels, low alarm
CT
Low alarm (standard Rosemount alarm and saturation levels)
None
None
P1
Hydrostatic testing with certificate
None
None
P2
Cleaning for Special Service
P3
Cleaning for < 1 PPM Chlorine/Fluorine
None
None
D5
Plugs instead of Drain/Vents
D7
Coplanar Flange without Drain/Vent Ports
DC
None - Ports Left Open
None
None
DO
316 SST Conduit Plug
None
None
D9
JIS Process Connection-RC 1/4 Flange with RC 1/2 Flange Adapter
None
None
P9
4500 psig (310 bar) static pressure limit
None
None
V5
External Ground Screw Assembly
None
None
DW
NSF Drinking Water Approval
None
None
Q15
Certificate of Compliance to NACE MR0175/ISO 15156 for wetted materials
Q25
Certificate of Compliance to NACE MR0103 for wetted materials
None
None
GE
M12,4-pin,Male Connector (eurofast®)
GM
A size Mini, 4-pin,Male Connector (minifast®)
None
None
HR7
Configured for HART Revision 7
HR5
Configured for HART Revision 5
Wireless Transmit Rate, Operating Frequency and Protocol
None
None
WA3
User Configurable Transmit Rate, 2.4GHz WirelessHART
Antenna and SmartPower
None
None
WP5
Internal Antenna, Compatible with Green Power Module (I.S. Power Module sold Separately)
Extended product warranty
None
None
WR3
3-year limited warranty
WR5
5-year limited warranty
PlantWeb Control Functionality
None
None
A01
FOUNDATION fieldbus Advanced Control Function Block Suite
PlantWeb Diagnostic Functionality
None
None
D01
FOUNDATION fieldbus Diagnostics Suite
DA0
Power Advisory HART Diagnostic
Alternate Flange
None
None
H2
Traditional Flange,316 SST,SST Drain/Vent
H3
Traditional Flange,Cast C-276,Alloy C-276 Drain/Vent
H4
Traditional Flange, Cast Alloy 400,Alloy 400/K-500 Drain/Vent
H7
Traditional Flange,316 SST,Alloy C-276 Drain/Vent
HJ
DIN-Compliant Traditional Flange,SST,7/16 in. Adapter/Manifold Bolting
HK
DIN-Compliant Traditional Flange,SST,10 mm Adapter/Manifold Bolting
HL
DIN-Compliant Traditional Flange,SST,12 mm Adapter/Manifold Bolting
FA
Level Flange,SST,2 in.,ANSI Class 150,Vertical Mount
FB
Level Flange,SST,2 in.,ANSI Class 300,Vertical Mount
FC
Level Flange,SST,3 in.,ANSI Class 150,Vertical Mount
FD
Level Flange,SST,3 in.,ANSI Class 300,Vertical Mount
FP
DIN Level Flange,SST,DN 50,PN 40,Vertical Mount
FQ
DIN Level Flange,SST,DN 80,PN 40,Vertical Mount
Manifold Assembly
None
None
S5
Assemble to Rosemount 306 Integral Manifold
S6
Assemble to Rosemount 304 Manifold or Connection System
Integral mount primary element
None
None
S3
Assemble to Rosemount 405 Compact Orifice Plate
S4
Assemble to Rosemount Annubar™ or Rosemount 1195 Integral Orifice
Seal Assemblies
None
None
S1
Assemble to one Rosemount 1199 seal
S2
Assemble to two Rosemount 1199 seals
Mounting Bracket
None
None
B1
Traditional Flange Bracket for 2-in. Pipe Mounting,CS Bolts
B2
Traditional Flange Bracket for Panel Mounting,CS Bolts
B3
Traditional Flange Flat Bracket for 2-in. Pipe Mounting,CS Bolts
B4
Coplanar Flange Bracket for 2-in. Pipe or Panel Mounting,all SST
B7
B1 Bracket with Series 300 SST Bolts
B8
B2 Bracket with Series 300 SST Bolts
B9
B3 Bracket with Series 300 SST Bolts
BA
SST B1 Bracket with Series 300 SST Bolts
BC
SST B3 Bracket with Series 300 SST Bolts
BE
316SST B4 Bracket with 316SST Bolts
Product certifications
None
None
C6
CSA Explosion-proof, Dust Ignition-proof, Intrinsically Safe, and Division 2
E2
INMETRO Flameproof
E3
China Flameproof
E4
TIIS Flameproof
E5
FM Explosion-proof, Dust Ignition-proof
E6
CSA Explosion-proof, Dust Ignition-proof, Division 2
E7
IECEx Flameproof, Dust Ignition-proof
E8
ATEX Flameproof and Dust
EM
Technical Regulation Customs Union (EAC), Flameproof
I1
ATEX Intrinsic Safety and Dust
I2
INMETRO Intrinsic safety
I3
China Intrinsic Safety
I4
TIIS Intrinsic Safety
I5
FM Intrinsically Safe, Division 2
I6
CSA Intrinsically Safe
I7
IECEx Intrinsic safety
IA
ATEX FISCO Intrinsic safety
IB
INMETRO FISCO Intrinsic safety
IE
FM FISCO Intrinsically Safe
IM
Technical Regulation Customs Union (EAC), Intrinsic Safety
K2
INMETRO Flameproof, Intrinsic Safety
K5
FM Explosion-proof, Dust Ignition-proof, Intrinsically Safe, and Division 2
K6
CSA and ATEX Explosion-proof, Intrinsically Safe, and Division 2 (combination of C6 and K8)
K7
IECEx Flameproof , Dust Ignition-proof, Intrinsic Safety, and Type n (combination of I7, N7 and E7)
K8
ATEX Flameproof, Intrinsic Safety, Type n, Dust (combination of E8, I1 and N1)
KB
FM and CSA Explosion-proof , Dust Ignition-proof, Intrinsically Safe, and Division 2
KD
CSA, FM, and ATEX Explosion-proof, Intrinsically Safe
KM
EAC Explosion-proof, Intrinsically Safe
N1
ATEX Type n and Dust
N3
China Type n
N7
IECEx Type n
Custody Transfer
None
None
C5
Measurement Canada Accuracy Approval
Shipboard approvals
None
None
SBS
American Bureau of Shipping (ABS) Type Approval
SBV
Bureau Veritas (BV) Type Approval
SDN
Det Norske Veritas (DNV) Type Approval
SLL
Lloyds Register (LR) Type Approval
Bolting Material
None
None
L4
Austenitic 316 SST bolts
L5
ASTM A 193, Grade B7M bolts
L6
Alloy K-500 bolts
Display and Interface Options
None
None
M4
LCD Display with Local Operator Interface
M5
LCD Display
Calibration Certification
None
None
Q4
Calibration certificate
QG
Calibration Certificate and GOST Verification Certificate
QP
Calibration Certificate & Tamper Evident Seal
Material Traceability Certification
None
None
Q8
Material Traceability Certification per EN 10204 3.1.B
Quality Certification for Safety
None
None
QS
Prior-use certificate of FMEDA data
QT
Safety certified to IEC 61508 with certificate of FMEDA data
Configuration Buttons
None
None
D4
Analog Zero and Span
DZ
Digital Zero Trim
Transient protection
None
None
T1
Transient terminal block
Low Power Output
None
None
C2
0.8-3.2 V dc Output with Digital Signal Based on HART Protocol
Gage Pressure Calibration
None
None
C3
Gage Calibration (Model 3051CA4 only)
Alarm Levels
None
None
C4
NAMUR alarm and saturation levels, high alarm
CN
NAMUR alarm and saturation levels, low alarm
CT
Low alarm (standard Rosemount alarm and saturation levels)
Pressure Testing
None
None
P1
Hydrostatic testing with certificate
Cleaning Process Area
None
None
P2
Cleaning for Special Service
P3
Cleaning for < 1 PPM Chlorine/Fluorine
Vent/Drain Valves
None
None
D5
Plugs instead of Drain/Vents
D7
Coplanar Flange without Drain/Vent Ports
DC
None - Ports Left Open
Conduit Plug
None
None
DO
316 SST Conduit Plug
RC1/4 RC1/2 Process Connection
None
None
D9
JIS Process Connection-RC 1/4 Flange with RC 1/2 Flange Adapter
Maximum Static Line Pressure
None
None
P9
4500 psig (310 bar) static pressure limit
Ground Screw
None
None
V5
External Ground Screw Assembly
Drinking Water Approval
None
None
DW
NSF Drinking Water Approval
NACE Certificate
None
None
Q15
Certificate of Compliance to NACE MR0175/ISO 15156 for wetted materials
Q25
Certificate of Compliance to NACE MR0103 for wetted materials
Conduit Electrical Connector
None
None
GE
M12,4-pin,Male Connector (eurofast®)
GM
A size Mini, 4-pin,Male Connector (minifast®)
HART Revision Configuration
None
None
HR7
Configured for HART Revision 7
HR5
Configured for HART Revision 5
Your Model Number:
3051C
Note :
Optional filter will be appear after selecting all required filters.
Your Model Number:
3051C
Review & Submit
Back to Configure
Submit RFQ
Add to RFQ Cart
Add to RFQ Cart
Rosemount 3051CD3A22A1AM5 Pressure Transmitters
View Cart
Continue Shopping
