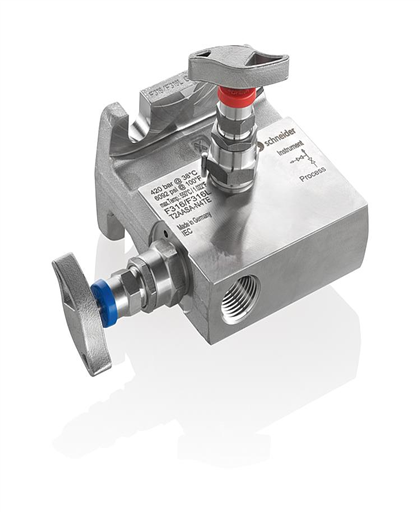

AS-Schneider 2 Valve Manifold
AS-Schneider Direct Mount 2 Valve Manifolds (Traditional Style) are designed for direct mounting to pressure transmitters with standard flange connection in accordance with DIN EN 61518 / IEC 61518. The standard vent connection is 1/4 NPT female. Pipe plugs are not installed as standard. Accessory kits incl. washers are required for manifold to transmitter mounting, because the manifolds are provided with slotted bolt holes.
A diverse range of options and the relevant accessories are available, please see below Mounting Bracket Kits and Accessories.
Connections, materials, valve head unit designs and further options are available, please see below Ordering Information or more detailed under.
AS-Schneider Direct Mount 2 Valve Manifolds (Traditional Style) are designed for direct mounting to Pressure Transmitters with standard flange connection in accordance with DIN EN 61518 / IEC 61518. The innovative design of the valve head units gives long service life and a smooth, low-torque operation. The AS-Schneider 2 Valve Manifolds, as standard, are rated to 420 bar (6,092 psi). AS-Schneider also provides the manifolds for sour gas service (acc. to NACE MR0175/MR0103 and ISO 15156), degreased and lubricated for oxygen service as well as manifolds for fugitive emission applications.
