VEGAPULS 69

Radar sensor for continuous level measurement of bulk solids All-round radar instrument with 80 GHz – the frequency of the future Application area

Special advantages are the small process fittings for small vessels or tight spaces. The very good signal focusing allows use in large silos or vessels with many internal installations.

The VEGAPULS 69 is a sensor for continuous measurement of bulk solids under different process conditions. It is ideal for level measurement in very high silos, large bunkers and segmented vessels. Thanks to the very good signal focussing a simple setup and reliable measurement is ensured. The VEGAPULS 69 can be equipped with an encapsulated plastic antenna or a lens antenna integrated in the metal flange. This enables the optimum adaption to different application areas.

Your Benefit:
  • High plant availability, because wear and maintenance-free
  • Maintenance-free operation through non-contact measuring principle
  • AReliable measurement independent of vapour, dust and noise

Request A Quote

Specification

VEGAPULS 69

Measuring range - Distance

120 m [Meter - Foot]

Process temperature

-40 ... 200 °C [°C - °F]

Process pressure

-1 ... 20 bar [Bar - kPa - psi]

Accuracy

± 5 mm / ± 0.2"

Frequency

80 GHz

Beam angle

≥ 3,5°

Version

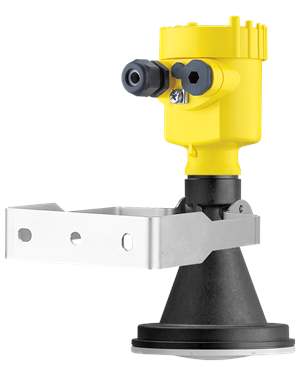

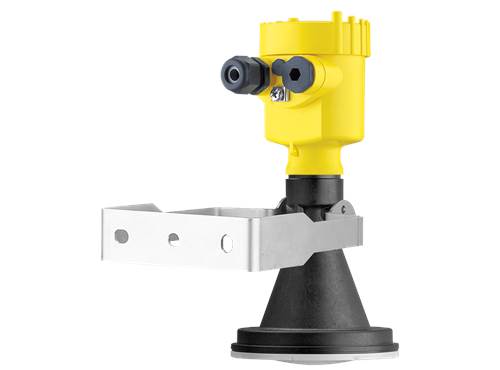

with plastic horn antenna ø 80 mm

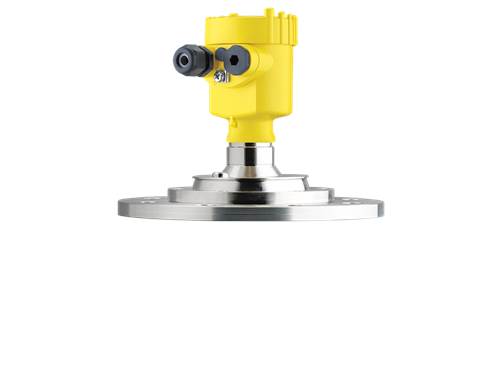

Metal jacketed lens antenna

Materials, wetted parts

316L

PP

PEEK

Threaded connection

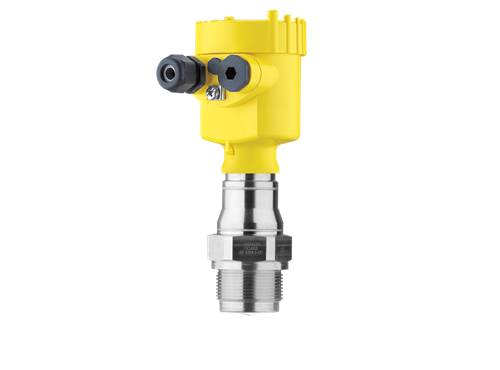

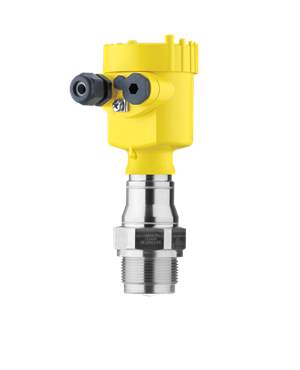

G1½, 1½ NPT

Flange connection

≥ DN80, ≥ 3"

Seal material

EPDM

FKM

Housing material

Plastic

Aluminium

Stainless steel (precision casting)

Stainless steel (electropolished)

Protection rating

IP66/IP68 (0,2 bar)

IP66/IP67

IP66/IP68 (1 bar)

Output

Profibus PA

Foundation Fieldbus

Two-wire: 4 … 20 mA/HART

Modbus

Four-wire: 4 … 20 mA/HART

Ambient temperature

-40 ... 80 °C

Application

Radar sensor for non-contact bulk solids measurement: from fine to coarse, from gritty to dusty

With its high frequency of 80 GHz, the radar sensor VEGAPULS 69 can measure practically any kind of bulk solid material: Fine powders, ash, dried sewage sludge, cullet, granulates and coarse bulk solids – even in a dusty atmosphere. The radar sensor scores big with its wide measuring range and accuracy in large or small applications: in bunkers, containers, silos. Even internal installations have no effect on the measuring result. The non-contact radar sensor is ideal for use in diverse sectors, such as building materials, rocks, aggregates and cement, as well as for use in the chemical industry, in wastewater management and in recycling.
