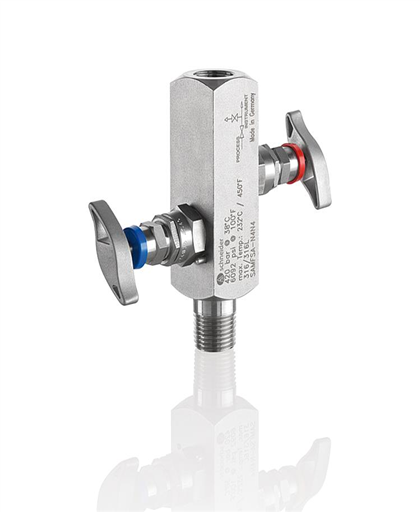

S Type Block and Bleed Manifold
AS-Schneider Block & Bleed Manifolds are designed for mounting to Pressure Gauges, Pressure Transmitters and Pressure Switches. The standard vent connection is 1/4 NPT female. Pipe plugs are not installed as standard.
A diverse range of options and the relevant accessories are available, please see below Mounting Bracket Kits and Accessories.
Connections, materials, valve head unit designs and further options are available, please see below Ordering Information or more detailed under
AS-Schneider Block & Bleed Manifolds are designed for mounting to pressure instruments (transmitters, gauges and switches). The innovative design of the valve head units gives long service life and a smooth, low-torque operation. The AS-Schneider Block & Bleed Manifolds, as standard, are rated to 420 bar (6,092 psi), but can be rated at 689 bar (10,000 psi). AS-Schneider also provides the manifolds for sour gas service (acc. to NACE MR0175/MR0103 and ISO 15156), degreased and lubricated for oxygen service as well as manifolds for fugitive emission applications.
