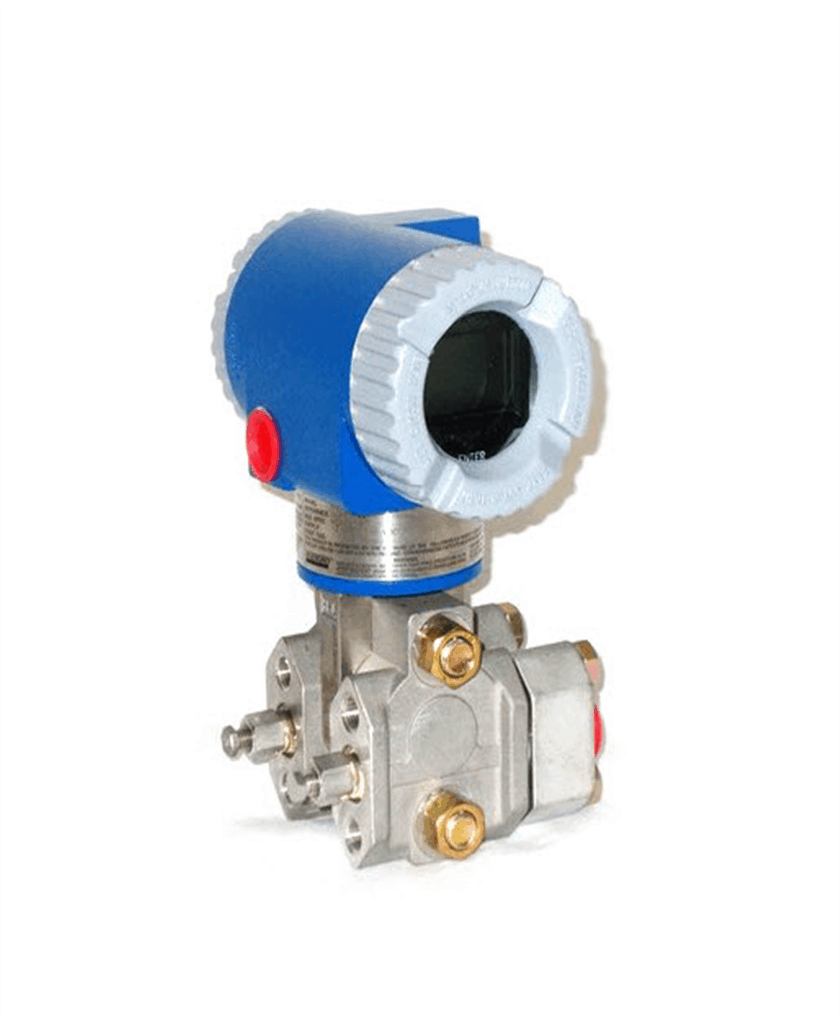

Foxboro IDP10 Electronic Transmitter

None

None

A

Aluminum Housing 1/2 NPT Red

B

Aluminum Housing PG13.5 Red

C

Aluminum Housing M20 Red

D

Aluminum Housing 1/2 NPT Yellow

E

Aluminum Housing PG13.5 Yellow

F

Aluminum Housing M20 Yellow

None

None

CERT-A

Compliance Certificate The certificate states that the instrument is in compliance with all Invensys Foxboro published documentation (PSS, MI, DP, PL, etc.).

CERT-B

Certificate Of Conformance The certificate states that the technical/quality portion of customerspurchase order has been reviewed by quality engineering and that the instrument is in conformance with the customerstechnical purchase order requirements as well as Invensys Foxboro documentation. Customer purchase order must be forwarded to Order Management, B52-AB, the same time the order is entered."Project Orders" a Cert "A" should be ordered"

CERT-C

Material Certificate- Non-Specific - BS EN 10204 2.1 The certificate lists the instrument process wetted metallic parts by material, part number, and description of piece part. It also states that other evidence of conformance/compliance can be provide. Traceability to individual heat numbers is not available and the non-specific material certificates are not supplied. This certificate does not include resale options such as seals and bypass manifolds. CERT-C is signed and dated by the appropriate Quality Engineer or other qualified personnel.

CERT-D

Material Certificate The certificate lists the instrument process wetted metallic parts by material, part number, and description of piece part. The material certificates are included and it states that the instrument conforms to BS EN 10204 3.1 (formerly DIN 50049 3.1.b). When the instrument includes an accessory item of manifold valve assembly, IFO/IFOU Integral Orifice, or a Pressure Seal, specified by use of an AS Reference or Linked Model Code, the certificate applies to both the instrument and the accessory.

CERT-E

Calibration Certificate The certificate shows calibration data for the instrument along with statement that calibration test equipment used is traceable to the National Institute of Standards and Technology (NIST). NIST was formerly called the National Bureau of Standards (NBS).

CERT-F

Certificate Of Pressure Test The certificate states that the instrument has been pressure tested for one minute, or as required per standard, without leaks. The test pressure depends on the Maximum Working Pressure (MWP) of the instrument. Test pressure equals 1.5 times MWP for MWP of 100 to 5000 psi (0.7 to 35 MPa), 1.4 times MWP for MWP over 5000 and up to 10000 psi (35 to 70 MPa), 1.3 times MWP for MWP over 10000 and up to 20000 psi (70 to 140 MPa), 1.2 times MWP for MWP over 20000 and up to 25000 (140 to 175 MPa), and 1.1 times MWP for MWP over 25000 psi (175 MPa).

CERT-G

Certificate Of Cleaning The certificate states that the instrument has been specially degreased, cleaned for oxygen service, cleaned for chlorine service, etc., to minimize contaminants to the end usersprocess, with special tagging and packaging per Invensys Foxboro cleaning standard CES 260. Note: The cleaning option (OS-W, OS-FC, CLS, etc.) must be added to the base instrument.

CERT-H

Weight Certificate The certificate lists the unpackaged weight of the instrument in kilograms, including any and all options that are (or will be) physically attached.

CERT-I

SASO Certificate Certificate of conformity in execution of SASO Board of Directors; decision No. 58 dated 1405 (H)-09-17 and SASO SSA 16, 17, 18, and 86.

CERT-J

Electrical Agency Certificate Copy of approval paperwork received from agency (FM, CSA, CENELEC, etc.) showing approval numbers.

CERT-K

NACE Certificate The certificate states that the metallic process wetted parts of the instrument are in compliance with the National Association of Corrosion Engineers (NACE) Standard MR-01-75 in regards to resistance to sulfide stress cracking. Some products require that auxiliary specification "MR-01" be specified and priced. Refer to appropriate instrument sections of Price Book.

CERT-L

SIL 2 Certificate This declaration of conformity states that the listed models have been assessed to applicable IEC 61508 requirements in support of SIL 2 applications and lists the key SIL parameters. Includes the signature of the Manager of Product Qualification.

CERT-M

PMI Certificate of Process Wetted Parts Certificate of Positive Material Identification. Provide PMI testing and certificate stating that the pressure wetted material(s) on this order are in conformance with the applicable ASTM standards. Testing provided in-house at Invensys/Foxboro facility using a non-destructive X-ray reflective analysis (XRF) analyzer (Bruker S1 Turbo).

CERT-N

PMI Certificate for Pressure Containment Parts

CERT-S

SIL 2-TUV Certificate A safety certificate provided by TUV meeting SIL safety requirements.

CERT-W

ASME Weld Certificate This certificate states that all welds produced at Invensys/Foxboro on this order were performed in accordance with ASME Section IX of the Boiler Code.

None

None

MR-01

NACE Standard MR-01-75 Process Wetted Parts Comply With The National Association Of Corrosion Engineers (NACE) Standard MR-01-75.

BM-M4AVC

3-Valve, CS (Inst Conn 1,2,3,4,6) Anderson, Greenwood 3-Valve Bypass Manifold With Cadmium-Plated Carbon Steel Body. Uses Instrument Process Connections.

BM-M4AVS

3-Valve, SS (Inst Conn 1,2,3,4,6) Anderson, Greenwood 3-Valve Bypass Manifold With AISI Type 316 Stainless Steel Body. Uses Instrument Process Connections.

OS-BM-M4AVS

3-Valve, SS (OS Cleaned) Anderson, Greenwood 3-Valve Bypass Manifold With AISI Type 316 Stainless Steel Body. Cleaned And Packaged For Oxygen Or Chlorine Service. Uses Instrument Process Connections.

BM-M4AVS-MR01

3-Valve, SS (NACE Compliance) Anderson, Greenwood 3-Valve Bypass Manifold With AISI Type 316 Stainless Steel Body And Monel Wetted Parts. Refer To Foxboro For NACE Compliant Version.. Uses Instrument Process Connections.

M6TWVIS-4

Natural Gas 5 Valve Manifold Process 1/2 inch FNPT x Instrumenmt Flange x 1/4 in FNPT Body Material 316 SS

M6TWVIS-4-AM

Natural Gas 5 Valve Manifold Static Pressure Process 1/2 inch FNPT x Instrument Flange x 1/4 in FNPT Body Material A479-316 SS with AGCO 2" Pipe Mounting Bracket

M4THPS-4-XP

Power Industry 3 Valve Manifold Process 1/2 inch FNPT x Instrumenmt Flange x 1/4 in FNPT ASME B31.1, B31.3 Meets MSS SP-105 Body Material SS, A497-316

BM-M4AVM

3-Valve, Monel (Inst Conn 1,2,3,4,6) Anderson, Greenwood 3-Valve Bypass Manifold With Monel Body And Wetted Parts. Uses Instrument Process Connections.

BM-M4TVIC-4

3-Valve, CS (Inst Conn Code = 0) Anderson, Greenwood 3-Valve Bypass Manifold With Cadmium-Plated Carbon Steel Body. Provides 1/2 NPT Connection On Process Side.

BM-M4TVIS-4

3-Valve, SS (Inst Conn Code = 0) Anderson, Greenwood 3-Valve Bypass Manifold With AISI Type 316 Stainless Steel Body. Provides 1/2 NPT Connections On Process Side.

BM-M4TVS-MR01

3-Valve, SS (NACE , Inst Conn = 0) Anderson, Greenwood 3-Valve Bypass Manifold With AISI Type 316 Stainless Steel Body And Monel Wetted Parts. Refer To Foxboro For NACE Compliant Version. Provides 1/2 NPT Connections On Process Side.

BM-180U

3-Valve, SS (For Use w/IFOU) Anderson, Greenwood 3-Valve Bypass Manifold With AISI Type 316 Stainless Steel Body And Wetted Parts. Designed For Use With Integral Flow Orifice Assemblies.

BM-MM

3-Valve Mini, A276-316 ss, Conventional Mounting Anderson, Greenwood 3-Valve Mini-Manifold With A276-316 Stainless Steel Stem Material And Conventional Mounting. Uses Instrument Process Connections.

OS-BM-MM

3-Valve Mini, A276-316 ss,Conventional,Oxygen Ser Anderson, Greenwood 3-Valve Mini-Manifold With A276-316 Stainless Steel Stem Material And Conventional Mounting. Cleaned And Packaged For Oxygen Service. Uses Instrument Process Connections.

BM-MM-MR01

3-Valve Mini, Monel 400, Conventional Mounting Anderson, Greenwood 3-Valve Mini-Manifold With Monel 400 Stem Material And Conventional Mounting. Refer To Foxboro For NACE Compliant Version. Uses Instrument Process Connections.

BM-MM-AM

3-Valve Mini, A276-316 ss, Manifold Mounting Anderson, Greenwood 3-Valve Mini-Manifold With A276-316 Stainless Steel Stem Material And Manifold Mounting. Uses Instrument Process Connections.

BM-M4AVC-AM

w/AGCO Mount, Carbon Steel (Inst Conn 1,2,3,4,6) Anderson, Greenwood Bypass Manifold With AGCO Mount For Nominal 2-Inch (DN 50) Pipe. Cadmium- Plated Carbon Steel Body And AISI Type 316 Stainless Steel Wetted Parts. Uses Instrument Process Connections.

BM-M4AVS-AM

w/AGCO Mount, 316 ss (Inst Conn 1,2,3,4,6) Anderson, Greenwood Bypass Manifold With AGCO Mount For Nominal 2-Inch (DN 50) Pipe. AISI Type 316 Stainless Steel Body And Wetted Parts. Uses Instrument Process Connections.

OS-BM-M4AVS-AM

w/AGCO Mount, 316 ss (Oxygen Service Cleaned) Anderson, Greenwood Bypass Manifold With AGCO Mount For Nominal 2-Inch (DN 50) Pipe. AISI Type 316 Stainless Steel Body And Wetted Parts. Cleaned And Packaged For Oxygen Or Chlorine Service. Uses Instrument Process Connections.

BM-M4AVS-MR01-AM

w/AGCO Mount, 316 ss Body; Monel Wetted Parts Anderson, Greenwood Bypass Manifold With AGCO Mount For Nominal 2-Inch (DN 50) Pipe. AISI Type 316 Stainless Steel Body And Monel Wetted Parts. Uses Instrument Process Connections. Refer To Foxboro For NACE Compliant Version.

BM-M4TVIC-4-AM

w/AGCO Mount, Carbon Steel (Inst Conn Code = 0) Anderson, Greenwood Bypass Manifold With AGCO Mount For Nominal 2-Inch (DN 50) Pipe. Cadmium- Plated Carbon Steel Body And AISI Type 316 Stainless Steel Wetted Parts. Provides 1/2 NPT Connection On Process Side.

BM-M4TVIS-4-AM

w/AGCO Mount, 316 ss (Inst Conn Code = 0) Anderson, Greenwood Bypass Manifold With AGCO Mount For Nominal 2-Inch (DN 50) Pipe. AISI Type 316 Stainless Steel Body And Wetted Parts. Provides 1/2 NPT Connection On Process Side.

BM-M4TVS-MR01-AM

w/AGCO Mount,316 ss Body; Monel (Inst Conn Code=0) Anderson, Greenwood Bypass Manifold With AGCO Mount For Nominal 2-Inch (DN 50) Pipe. AISI Type 316 Stainless Steel Body And Monel Wetted Parts. Provides 1/2 NPT Connection On Process Side.

MB3VIS-4

3-Valve, Standard Standard Three-Valve Manifold, 316 Stainless Steel, 1/2 NPT Process Connections.

MB3VIS-4-AM

3-Valve, Standard w/Manifold Mtg Kit (CS Bracket) Three-Valve Manifold - Standard, 316 Stainless Steel, 1/2 NPT Process Connections With Manifold Mounting Kit Using Carbon Steel Bracket.

MB3VIS-4-UB

3-Valve, Standard w/Manifold Mtg Kit (ss Bracket) Three-Valve Manifold - Standard, 316 Stainless Steel, 1/2 NPT Process Connections With Manifold Mounting Kit Using Stainless Steel Bracket. The Stainless Steel Bracket Is The Foxboro Stainless Steel Universal Bracket And Mounting Hardware Shipped With The Anderson Greenwood Manifold.

MB3VIS-4-OC

3-Valve, Standard w/Oxygen Cleaning Three-Valve Manifold - Standard, 316 Stainless Steel, 1/2 NPT Process Connections With Oxygen Cleaning.

MB3VIS-4-SG

3-Valve, Standard w/NACE Standard MR-01-75 Three-Valve Manifold - Standard, 316 Stainless Steel, 1/2 NPT Process Connections With NACE Standard MR-01-75.

MB3VIS-4-AM-OC

3-Valve,Std w/Manifold Mtg Kit (CS) & Oxygen Clean Three-Valve Manifold - Standard, 316 Stainless Steel, 1/2 NPT Process Connections With Manifold Mounting Kit Using Carbon Steel Bracket And Oxygen Cleaning.

MB3VIS-4-OC-UB

3-Valve,Std w/Manifold Mtg Kit (ss) & Oxygen Clean Three-Valve Manifold - Standard, 316 Stainless Steel, 1/2 NPT Process Connections With Manifold Mounting Kit Using Stainless Steel Bracket And Oxygen Cleaning. The Stainless Steel Bracket Is The Foxboro Stainless Steel Universal Bracket And Mounting Hardware Shipped With The Anderson Greenwood Manifold.

MB3VIS-4-AM-SG

3-Valve,Std w/Manifold Mtg Kit(CS) & NACE MR-01-75 Three-Valve Manifold - Standard, 316 Stainless Steel, 1/2 NPT Process Connections With Manifold Mounting Kit Using Carbon Steel Bracket And NACE Standard MR-01-75.

MB3VIS-4-SG-UB

3-Valve,Std w/Manifold Mtg Kit(ss) & NACE MR-01-75 Three-Valve Manifold - Standard, 316 Stainless Steel, 1/2 NPT Process Connections With Manifold Mounting Kit Using Stainless Steel Bracket And NACE Standard MR-01-75. The Stainless Steel Bracket Is The Foxboro Stainless Steel Universal Bracket And Mounting Hardware Shipped With The Anderson Greenwood Manifold.

MB5GVIS-4

5-Valve, Standard Standard Five-Valve Manifold, 316 Stainless Steel, 1/2 NPT Process Connections.

MB5GVIS-4-AM

5-Valve, Standard w/Manifold Mtg Kit (CS Bracket) Five-Valve Manifold - Standard, 316 Stainless Steel, 1/2 NPT Process Connections With Manifold Mounting Kit Using Carbon Steel Bracket.

MB5GVIS-4-UB

5-Valve, Standard w/Manifold Mtg Kit (ss Bracket) Five-Valve Manifold - Standard, 316 Stainless Steel, 1/2 NPT Process Connections With Manifold Mounting Kit Using Stainless Steel Bracket. The Stainless Steel Bracket Is The Foxboro Stainless Steel Universal Bracket And Mounting Hardware Shipped With The Anderson Greenwood Manifold.

MB5GVIS-4-OC

5-Valve, Standard w/Oxygen Cleaning Five-Valve Manifold - Standard, 316 Stainless Steel, 1/2 NPT Process Connections With Oxygen Cleaning.

MB5GVIS-4-SG

5-Valve, Standard w/NACE Standard MR-01-75 Five-Valve Manifold - Standard, 316 Stainless Steel, 1/2 NPT Process Connections With NACE Standard MR-01-75.

MB5GVIS-4-AM-OC

5-Valve,Std w/Manifold Mtg Kit (CS) & Oxygen Clean Five-Valve Manifold - Standard, 316 Stainless Steel, 1/2 NPT Process Connections With Manifold Mounting Kit Using Carbon Steel Bracket And Oxygen Cleaning.

MB5GVIS-4-OC-UB

5-Valve,Std w/Manifold Mtg Kit (ss) & Oxygen Clean Five-Valve Manifold - Standard, 316 Stainless Steel, 1/2 NPT Process Connections With Manifold Mounting Kit Using Stainless Steel Bracket And Oxygen Cleaning. The Stainless Steel Bracket Is The Foxboro Stainless Steel Universal Bracket And Mounting Hardware Shipped With The Anderson Greenwood Manifold.

MB5GVIS-4-AM-SG

5-Valve,Std w/Manifold Mtg Kit(CS) & NACE MR-01-75 Five-Valve Manifold - Standard, 316 Stainless Steel, 1/2 NPT Process Connections With Manifold Mounting Kit Using Carbon Steel Bracket And NACE Standard MR-01-75.

MB5GVIS-4-SG-UB

5-Valve,Std w/Manifold Mtg Kit(ss) & NACE MR-01-75 Five-Valve Manifold - Standard, 316 Stainless Steel, 1/2 NPT Process Connections With Manifold Mounting Kit Using Stainless Steel Bracket And NACE Standard MR-01-75. The Stainless Steel Bracket Is The Foxboro Stainless Steel Universal Bracket And Mounting Hardware Shipped With The Anderson Greenwood Manifold.

MB3HPS-4-XP

3-Valve, Power Industry Power Industry Three-Valve Manifold, B31.1, 316 Stainless Steel, 1/2 NPT Process Connections.

MB3HPS-4-XP-AM

3-Valve, Pwr Ind w/Manifold Mtg Kit (CS Bracket) Three-Valve Manifold - Power Industry, B31.1, 316 Stainless Steel, 1/2 NPT Process Connections With Manifold Mounting Kit Using Carbon Steel Bracket.

MB3HPS-4-XP-UB

3-Valve, Pwr Ind w/Manifold Mtg Kit (ss Bracket) Three-Valve Manifold - Power Industry, B31.1, 316 Stainless Steel, 1/2 NPT Process Connections With Manifold Mounting Kit Using Stainless Steel Bracket. The Stainless Steel Bracket Is The Foxboro Stainless Steel Universal Bracket And Mounting Hardware Shipped With The Anderson Greenwood Manifold.

MB5PHPS-4-XP

5-Valve, Power Industry Power Industry Five-Valve Manifold, B31.1, 316 Stainless Steel, 1/2 NPT Process Connections.

MB5PHPS-4-XP-AM

5-Valve, Pwr Ind w/Manifold Mtg Kit (CS Bracket) Five-Valve Manifold - Power Industry, B31.1, 316 Stainless Steel, 1/2 NPT Process Connections With Manifold Mounting Kit Using Carbon Steel Bracket.

MB5PHPS-4-XP-UB

5-Valve, Pwr Ind w/Manifold Mtg Kit (ss Bracket) Five-Valve Manifold - Power Industry, B31.1, 316 Stainless Steel, 1/2 NPT Process Connections With Manifold Mounting Kit Using Stainless Steel Bracket. The Stainless Steel Bracket Is The Foxboro Stainless Steel Universal Bracket And Mounting Hardware Shipped With The Anderson Greenwood Manifold.

CO-HH4A

1/2 Inch ANSI Flanges, 0.40 Beta Ratio Compact Orifice For Mounting Between 1/2 Inch ANSI Flanges, 0.40 Beta Ratio

CO-HH6A

1/2 Inch ANSI Flanges, 0.65 Beta Ratio Compact Orifice For Mounting Between 1/2 Inch ANSI Flanges, 0.65 Beta Ratio

CO-HH4D

DN15 DIN Flanges, 0.40 Beta Ratio Compact Orifice For Mounting Between DN15 DIN Flanges, 0.40 Beta Ratio

CO-HH6D

DN15 DIN Flanges, 0.65 Beta Ratio Compact Orifice For Mounting Between DN15 DIN Flanges, 0.65 Beta Ratio

CO-114A

1 Inch ANSI Flanges, 0.40 Beta Ratio Compact Orifice For Mounting Between 1 Inch ANSI Flanges, 0.40 Beta Ratio

CO-116A

1 Inch ANSI Flanges, 0.65 Beta Ratio Compact Orifice For Mounting Between 1 Inch ANSI Flanges, 0.65 Beta Ratio

CO-114D

DN25 DIN Flanges, 0.40 Beta Ratio Compact Orifice For Mounting Between DN25 DIN Flanges, 0.40 Beta Ratio

CO-116D

DN25 DIN Flanges, 0.65 Beta Ratio Compact Orifice For Mounting Between DN25 DIN Flanges, 0.65 Beta Ratio

CO-1H4A

1 1/2 Inch ANSI Flanges, 0.40 Beta Ratio Compact Orifice For Mounting Between 1 1/2 Inch ANSI Flanges, 0.40 Beta Ratio

CO-1H6A

1 1/2 Inch ANSI Flanges, 0.65 Beta Ratio Compact Orifice For Mounting Between 1 1/2 Inch ANSI Flanges, 0.65 Beta Ratio

CO-1H4D

DN40 DIN Flanges, 0.40 Beta Ratio Compact Orifice For Mounting Between DN40 DIN Flanges, 0.40 Beta Ratio

CO-1H6D

DN40 DIN Flanges, 0.65 Beta Ratio Compact Orifice For Mounting Between DN40 DIN Flanges, 0.65 Beta Ratio

CO-224A

2 Inch ANSI Flanges, 0.40 Beta Ratio Compact Orifice For Mounting Between 2 Inch ANSI Flanges, 0.40 Beta Ratio

CO-226A

2 Inch ANSI Flanges, 0.65 Beta Ratio Compact Orifice For Mounting Between 2 Inch ANSI Flanges, 0.65 Beta Ratio

CO-224D

DN50 DIN Flanges, 0.40 Beta Ratio Compact Orifice For Mounting Between DN50 DIN Flanges, 0.40 Beta Ratio

CO-226D

DN50 DIN Flanges, 0.65 Beta Ratio Compact Orifice For Mounting Between DN50 DIN Flanges, 0.65 Beta Ratio

CO-334A

3 Inch ANSI Flanges, 0.40 Beta Ratio Compact Orifice For Mounting Between 3 Inch ANSI Flanges, 0.40 Beta Ratio

CO-336A

3 Inch ANSI Flanges, 0.65 Beta Ratio Compact Orifice For Mounting Between 3 Inch ANSI Flanges, 0.65 Beta Ratio

CO-334D

DN80 DIN Flanges, 0.40 Beta Ratio Compact Orifice For Mounting Between DN80 DIN Flanges, 0.40 Beta Ratio

CO-336D

DN80 DIN Flanges, 0.65 Beta Ratio Compact Orifice For Mounting Between DN80 DIN Flanges, 0.65 Beta Ratio

CO-444A

4 Inch ANSI Flanges, 0.40 Beta Ratio Compact Orifice For Mounting Between 4 Inch ANSI Flanges, 0.40 Beta Ratio

CO-446A

4 Inch ANSI Flanges, 0.65 Beta Ratio Compact Orifice For Mounting Between 4 Inch ANSI Flanges, 0.65 Beta Ratio

CO-444D

DN100 DIN Flanges, 0.40 Beta Ratio Compact Orifice For Mounting Between DN100 DIN Flanges, 0.40 Beta Ratio

CO-446D

DN100 DIN Flanges, 0.65 Beta Ratio Compact Orifice For Mounting Between DN100 DIN Flanges, 0.65 Beta Ratio

CI-HHAN150

1/2 Inch Compact Orifice, ANSI Class 150 Flange Installation Kit For 1/2 Inch Compact Orifice; For Use With ANSI Class 150 Flanges.

CI-HHAN300

1/2 Inch Compact Orifice, ANSI Class 300 Flange Installation Kit For 1/2 Inch Compact Orifice; For Use With ANSI Class 300 Flanges.

CI-HHAN600

1/2 Inch Compact Orifice, ANSI Class 600 Flange Installation Kit For 1/2 Inch Compact Orifice; For Use With ANSI Class 600 Flanges.

CI-HHPN016

DN15 Compact Orifice, DIN PN 16 Flange Installation Kit For DN15 Compact Orifice; For Use With DIN PN 16 Flanges.

CI-HHPN040

DN15 Compact Orifice, DIN PN 40 Flange Installation Kit For DN15 Compact Orifice; For Use With DIN PN 40 Flanges.

CI-HHPN100

DN15 Compact Orifice, DIN PN 100 Flange Installation Kit For DN15 Compact Orifice; For Use With DIN PN 100 Flanges.

CI-11AN150

1 Inch Compact Orifice, ANSI Class 150 Flange Installation Kit For 1 Inch Compact Orifice; For Use With ANSI Class 150 Flanges.

CI-11AN300

1 Inch Compact Orifice, ANSI Class 300 Flange Installation Kit For 1 Inch Compact Orifice; For Use With ANSI Class 300 Flanges.

CI-11AN600

1 Inch Compact Orifice, ANSI Class 600 Flange Installation Kit For 1 Inch Compact Orifice; For Use With ANSI Class 600 Flanges.

CI-11PN016

DN25 Compact Orifice, DIN PN 16 Flange Installation Kit For DN25 Compact Orifice; For Use With DIN PN 16 Flanges.

CI-11PN040

DN25 Compact Orifice, DIN PN 40 Flange Installation Kit For DN25 Compact Orifice; For Use With DIN PN 40 Flanges.

CI-11PN100

DN25 Compact Orifice, DIN PN 100 Flange Installation Kit For DN25 Compact Orifice; For Use With DIN PN 100 Flanges.

CI-1HAN150

1 1/2 Inch Compact Orifice, ANSI Class 150 Flange Installation Kit For 1 1/2 Inch Compact Orifice; For Use With ANSI Class 150 Flanges.

CI-1HAN300

1 1/2 Inch Compact Orifice, ANSI Class 300 Flange Installation Kit For 1 1/2 Inch Compact Orifice; For Use With ANSI Class 300 Flanges.

CI-1HAN600

1 1/2 Inch Compact Orifice, ANSI Class 600 Flange Installation Kit For 1 1/2 Inch Compact Orifice; For Use With ANSI Class 600 Flanges.

CI-1HPN016

DN40 Compact Orifice, DIN PN 16 Flange Installation Kit For DN40 Compact Orifice; For Use With DIN PN 16 Flanges.

CI-1HPN040

DN40 Compact Orifice, DIN PN 40 Flange Installation Kit For DN40 Compact Orifice; For Use With DIN PN 40 Flanges.

CI-1HPN100

DN40 Compact Orifice, DIN PN 100 Flange Installation Kit For DN40 Compact Orifice; For Use With DIN PN 100 Flanges.

CI-22AN150

2 Inch Compact Orifice, ANSI Class 150 Flange Installation Kit For 2 Inch Compact Orifice; For Use With ANSI Class 150 Flanges.

CI-22AN300

2 Inch Compact Orifice, ANSI Class 300 Flange Installation Kit For 2 Inch Compact Orifice; For Use With ANSI Class 300 Flanges.

CI-22AN600

2 Inch Compact Orifice, ANSI Class 600 Flange Installation Kit For 2 Inch Compact Orifice; For Use With ANSI Class 600 Flanges.

CI-22PN016

DN50 Compact Orifice, DIN PN 16 Flange Installation Kit For DN50 Compact Orifice; For Use With DIN PN 16 Flanges.

CI-22PN040

DN50 Compact Orifice, DIN PN 40 Flange Installation Kit For DN50 Compact Orifice; For Use With DIN PN 40 Flanges.

CI-22PN100

DN50 Compact Orifice, DIN PN 100 Flange Installation Kit For DN50 Compact Orifice; For Use With DIN PN 100 Flanges.

CI-33AN150

3 Inch Compact Orifice, ANSI Class 150 Flange Installation Kit For 3 Inch Compact Orifice; For Use With ANSI Class 150 Flanges.

CI-33AN300

3 Inch Compact Orifice, ANSI Class 300 Flange Installation Kit For 3 Inch Compact Orifice; For Use With ANSI Class 300 Flanges.

CI-33AN600

3 Inch Compact Orifice, ANSI Class 600 Flange Installation Kit For 3 Inch Compact Orifice; For Use With ANSI Class 600 Flanges.

CI-33PN016

DN80 Compact Orifice, DIN PN 16 Flange Installation Kit For DN80 Compact Orifice; For Use With DIN PN 16 Flanges.

CI-33PN040

DN80 Compact Orifice, DIN PN 40 Flange Installation Kit For DN80 Compact Orifice; For Use With DIN PN 40 Flanges.

CI-33PN100

DN80 Compact Orifice, DIN PN 100 Flange Installation Kit For DN80 Compact Orifice; For Use With DIN PN 100 Flanges.

CI-44AN150

4 Inch Compact Orifice, ANSI Class 150 Flange Installation Kit For 4 Inch Compact Orifice; For Use With ANSI Class 150 Flanges.

CI-44AN300

4 Inch Compact Orifice, ANSI Class 300 Flange Installation Kit For 4 Inch Compact Orifice; For Use With ANSI Class 300 Flanges.

CI-44AN600

4 Inch Compact Orifice, ANSI Class 600 Flange Installation Kit For 4 Inch Compact Orifice; For Use With ANSI Class 600 Flanges.

CI-44PN016

DN100 Compact Orifice, DIN PN 16 Flange Installation Kit For DN100 Compact Orifice; For Use With DIN PN 16 Flanges.

CI-44PN040

DN100 Compact Orifice, DIN PN 40 Flange Installation Kit For DN100 Compact Orifice; For Use With DIN PN 40 Flanges.

CI-44PN100

DN100 Compact Orifice, DIN PN 100 Flange Installation Kit For DN100 Compact Orifice; For Use With DIN PN 100 Flanges.

IFOU-S2-1SA

180° U-Bend, 0.0200 Inch Bore Diameter, 1/2 NPT 180° U-Bend Type Integral Flow Orifice Assembly. AISI Type 316 Stainless Steel (316 ss) Manifold Material, 1/2 NPT End Connection, And 0.0200 Inch (.508 mm) Bore Diameter.

IFOU-S2-1SB

180° U-Bend, 0.0340 Inch Bore Diameter, 1/2 NPT 180° U-Bend Type Integral Flow Orifice Assembly. AISI Type 316 Stainless Steel (316 ss) Manifold Material, 1/2 NPT End Connection, And 0.0340 Inch (0.864 mm) Bore Diameter.

IFOU-S2-1SC

180° U-Bend, 0.0595 Inch Bore Diameter, 1/2 NPT 180° U-Bend Type Integral Flow Orifice Assembly. AISI Type 316 Stainless Steel (316 ss) Manifold Material, 1/2 NPT End Connection, And 0.0595 Inch (1.511 mm) Bore Diameter.

IFOU-S2-1SD

180° U-Bend, 0.0995 Inch Bore Diameter, 1/2 NPT 180° U-Bend Type Integral Flow Orifice Assembly. AISI Type 316 Stainless Steel (316 ss) Manifold Material, 1/2 NPT End Connection, And 0.0995 Inch (2.527 mm) Bore Diameter.

IFOU-S2-1SE

180° U-Bend, 0.1590 Inch Bore Diameter, 1/2 NPT 180° U-Bend Type Integral Flow Orifice Assembly. AISI Type 316 Stainless Steel (316 ss) Manifold Material, 1/2 NPT End Connection, And 0.1590 Inch (4.039 mm) Bore Diameter.

IFOU-S2-1SH

180° U-Bend, Nonstandard Bore Diameter, 1/2 NPT 180° U-Bend Type Integral Flow Orifice Assembly. AISI Type 316 Stainless Steel (316 ss) Manifold Material And 1/2 NPT End Connection.

IFOU-S4-1SA

180° U-Bend, 0.0200 Inch Bore Diameter, Rc 1/2 180° U-Bend Type Integral Flow Orifice Assembly. AISI Type 316 Stainless Steel (316 ss) Manifold Material, Rc 1/2 End Connection, And 0.0200 Inch (0.508 mm) Bore Diameter.

IFOU-S4-1SB

180° U-Bend, 0.0340 Inch Bore Diameter, Rc 1/2 180° U-Bend Type Integral Flow Orifice Assembly. AISI Type 316 Stainless Steel (316 ss) Manifold Material, Rc 1/2 End Connection, And 0.0340 Inch (0.864 mm) Bore Diameter.

IFOU-S4-1SC

180° U-Bend, 0.0595 Inch Bore Diameter, Rc 1/2 180° U-Bend Type Integral Flow Orifice Assembly. AISI Type 316 Stainless Steel (316 ss) Manifold Material, Rc 1/2 End Connection, And 0.0595 Inch (1.511 mm) Bore Diameter.

IFOU-S4-1SD

180° U-Bend, 0.0995 Inch Bore Diameter, Rc 1/2 180° U-Bend Type Integral Flow Orifice Assembly. AISI Type 316 Stainless Steel (316 ss) Manifold Material, Rc 1/2 End Connection, And 0.0995 Inch (2.527 mm) Bore Diameter.

IFOU-S4-1SE

180° U-Bend, 0.1590 Inch Bore Diameter, Rc 1/2 180° U-Bend Type Integral Flow Orifice Assembly. AISI Type 316 Stainless Steel (316 ss) Manifold Material, Rc 1/2 End Connection, And 0.1590 Inch (4.039 mm) Bore Diameter.

IFOU-S4-1SH

180° U-Bend, Nonstandard Bore Diameter, Rc 1/2 180° U-Bend Type Integral Flow Orifice Assembly. AISI Type 316 Stainless Steel (316 ss) Manifold Material And Rc 1/2 End Connection.

IFO-S2-1SA

Straight Through, 0.0200 Inch Bore, 316 ss Orifice Straight Through Type Integral Flow Orifice Assembly. AISI Type 316 Stainless Steel (316 ss) Manifold Material, 1/2 NPT End Connection, AISI Type 316 Stainless Steel (316 ss) Orifice, And 0.0200 Inch (.508 mm) Bore Diameter.

IFO-S2-1SB

Straight Through, 0.0340 Inch Bore, 316 ss Orifice Straight Through Type Integral Flow Orifice Assembly. AISI Type 316 Stainless Steel (316 ss) Manifold Material, 1/2 NPT End Connection, AISI Type 316 Stainless Steel (316 ss) Orifice, And 0.0340 Inch (.864 mm) Bore Diameter.

IFO-S2-1SC

Straight Through, 0.0595 Inch Bore, 316 ss Orifice Straight Through Type Integral Flow Orifice Assembly. AISI Type 316 Stainless Steel (316 ss) Manifold Material, 1/2 NPT End Connection, AISI Type 316 Stainless Steel (316 ss) Orifice, And 0.0595 Inch (1.511 mm) Bore Diameter.

IFO-S2-1SD

Straight Through, 0.0995 Inch Bore, 316 ss Orifice Straight Through Type Integral Flow Orifice Assembly. AISI Type 316 Stainless Steel (316 ss) Manifold Material, 1/2 NPT End Connection, AISI Type 316 Stainless Steel (316 ss) Orifice, And 0.0995 Inch (2.527 mm) Bore Diameter.

IFO-S2-1SE

Straight Through, 0.1590 Inch Bore, 316 ss Orifice Straight Through Type Integral Flow Orifice Assembly. AISI Type 316 Stainless Steel (316 ss) Manifold Material, 1/2 NPT End Connection, AISI Type 316 Stainless Steel (316 ss) Orifice, And 0.1590 Inch (4.039 mm) Bore Diameter.

IFO-S2-1SH

Straight Through, Nonstandard Diameter, 316 ss Straight Through Type Integral Flow Orifice Assembly. AISI Type 316 Stainless Steel (316 ss) Manifold Material, 1/2 NPT End Connection, And AISI Type 316 Stainless Steel (316 ss) Orifice.

IFO-S2-1MA

Straight Through, 0.0200 Inch Bore, Monel Orifice Straight Through Type Integral Flow Orifice Assembly. AISI Type 316 Stainless Steel (316 ss) Manifold Material, 1/2 NPT End Connection, Monel Orifice, And 0.0200 Inch (.508 mm) Bore Diameter.

IFO-S2-1MB

Straight Through, 0.0340 Inch Bore, Monel Orifice Straight Through Type Integral Flow Orifice Assembly. AISI Type 316 Stainless Steel (316 ss) Manifold Material, 1/2 NPT End Connection, Monel Orifice, And 0.0340 Inch (.864 mm) Bore Diameter.

IFO-S2-1MC

Straight Through, 0.0595 Inch Bore, Monel Orifice Straight Through Type Integral Flow Orifice Assembly. AISI Type 316 Stainless Steel (316 ss) Manifold Material, 1/2 NPT End Connection, Monel Orifice, And 0.0595 Inch (1.511 mm) Bore Diameter.

IFO-S2-1MD

Straight Through, 0.0995 Inch Bore, Monel Orifice Straight Through Type Integral Flow Orifice Assembly. AISI Type 316 Stainless Steel (316 ss) Manifold Material, 1/2 NPT End Connection, Monel Orifice, And 0.0995 Inch (2.527 mm) Bore Diameter.

IFO-S2-1ME

Straight Through, 0.1590 Inch Bore, Monel Orifice Straight Through Type Integral Flow Orifice Assembly. AISI Type 316 Stainless Steel (316 ss) Manifold Material, 1/2 NPT End Connection, Monel Orifice, And 0.1590 Inch (4.039 mm) Bore Diameter.

IFO-S2-1MH

Straight Through, Nonstandard Diameter, Monel Straight Through Type Integral Flow Orifice Assembly. AISI Type 316 Stainless Steel (316 ss) Manifold Material, 1/2 NPT End Connection, And Monel Orifice.

IFO-S2-1CA

Straight Through, 0.0200 Inch Bore, Hastelloy C Straight Through Type Integral Flow Orifice Assembly. AISI Type 316 Stainless Steel (316 ss) Manifold Material, 1/2 NPT End Connection, Hastelloy C Orifice, And 0.0200 Inch (.508 mm) Bore Diameter.

IFO-S2-1CB

Straight Through, 0.0340 Inch Bore, Hastelloy C Straight Through Type Integral Flow Orifice Assembly. AISI Type 316 Stainless Steel (316 ss) Manifold Material, 1/2 NPT End Connection, Hastelloy C Orifice, And 0.0340 Inch (.864 mm) Bore Diameter.

IFO-S2-1CC

Straight Through, 0.0595 Inch Bore, Hastelloy C Straight Through Type Integral Flow Orifice Assembly. AISI Type 316 Stainless Steel (316 ss) Manifold Material, 1/2 NPT End Connection, Hastelloy C Orifice, And 0.0595 Inch (1.511 mm) Bore Diameter.

IFO-S2-1CD

Straight Through, 0.0995 Inch Bore, Hastelloy C Straight Through Type Integral Flow Orifice Assembly. AISI Type 316 Stainless Steel (316 ss) Manifold Material, 1/2 NPT End Connection, Hastelloy C Orifice, And 0.0995 Inch (2.527 mm) Bore Diameter.

IFO-S2-1CE

Straight Through, 0.1590 Inch Bore, Hastelloy C Straight Through Type Integral Flow Orifice Assembly. AISI Type 316 Stainless Steel (316 ss) Manifold Material, 1/2 NPT End Connection, Hastelloy C Orifice, And 0.1590 Inch (4.039 mm) Bore Diameter.

IFO-S2-1CH

Straight Through,Nonstandard Diameter, Hastelloy C Straight Through Type Integral Flow Orifice Assembly. AISI Type 316 Stainless Steel (316 ss) Manifold Material, 1/2 NPT End Connection, And Hastelloy C Orifice.

SB-11

Plug-In Shorting Bar

MTS

Supplemental Instrument Tag Supplemental Instrument Tag, 3.4 x 1.5 Inch (90 x 40 mm) Stainless Steel Fastened To Instrument With A Stainless Steel Wire. Markings Can Be Up To 10 Lines, 40 Characters Or Spaces Per Line.
