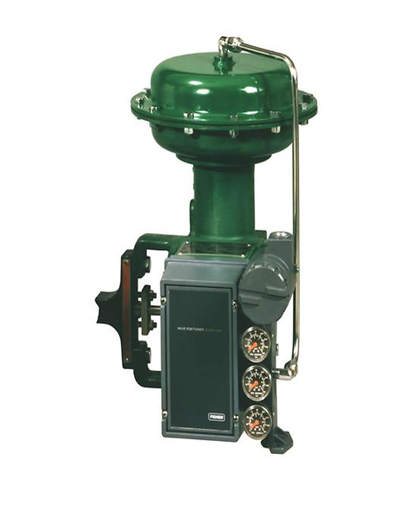

Fisher 3620J Electro-Pneumatic Positioner
Availability: In stock
Specification
- The positioner provides accurate, fast response and can withstand the vibrations of most plant environments.
- With the cover removed, zero span and cross-over adjustments are easily accessible and can be made with a screw driver.
- Easily adjustable minor loop gain fine tunes the positioner to optimize dynamic response for each specific actuator size and application.
- Changes in supply pressure have minimal effect on positioner operation.
- Case, components, and gasket materials withstand harsh environments. Positioner bleed air purges internal parts and actuator housing for additional protection.
- Simple adjustments permit switching between direct and reverse action; no additional parts are required.
| Area Classification | Explosion Proof, Intrinsically Safe, Non-incendive, Dust |
| Certifications | CSA, FM, ATEX, IECEx, CUTR, Peso, KGS, INMETRO, NEPSI, RCM |
| Communication Protocol | 4-20mA Analog |
| Data Interface | Wired |
| Diagnostics | No |
| Input Signal | Electric |
| Max Outlet Pressure | 150 psi |
| Mounting Type | Actuator Mounted |
| Operating Temperature | Standard Temperature, High Temperature |
| Position Control | Modulating |
| Process Control | Flow, Pressure, Temperature, Level |
| Safety Certification | NIL |
| Supply Media | Air |
| Other Configurations | Contact your local Emerson business partner or sales office to learn about additional specifications or options for this product. |
Description
Fisher 3620J electro-pneumatic, single-acting positioners are used with rotary actuators to accurately position control valves used in throttling applications. These rugged positioners provide a valve position proportional to a pneumatic input signal and mounts integrally to the actuator housing.
Technical Data-Sheet
im-supplement-fisher-3622-electro-pneumatic-converter-3620j-positioners-inmetro-hazardous-area-approvals-en-136034.pdf im-supplement-peso-india-certificate-for-fisher-646-electro-pneumatic-transducers-3661-positioners-3622-3722-582i-electro-pneumatic-converters-en-1267082.pdf instruction-manual-fisher-3610j-3620j-positioners-3622-electro-pneumatic-converter-en-123350.pdf
