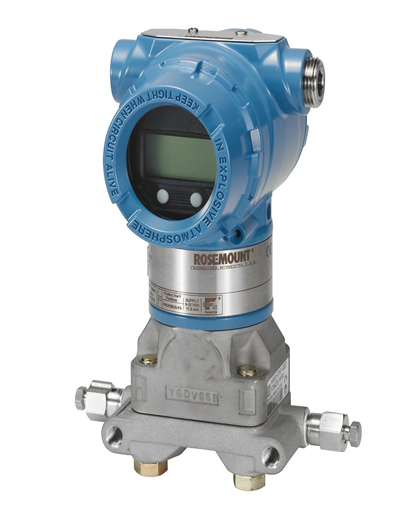

Rosemount 3051CD5A22A1AM5 Pressure Transmitters

The Rosemount 3051 transmitter offers benefits of patented technology and industry leading performance. The transmitter can be used for level, pressure, and flow measurement. The transmitter features patented Coplanar technology that enables application flexibility, and ease of installation. The 3051C is designed for direct mounting. With over 10 million installations, the 3051C continues to be one of the most reliable pressure measurement devices ever used in the process industry.

Availability: In stock
Request A Quote

Specification

Rosemount 3051CD5A22A1AM5 Pressure Transmitters

Output

4-20 mA with digital signal based on HART Protocol

Low Power, 1-5 V dc with digital signal based on HART Protocol

Low power, 0.8-3.2 V dc with digital signal based on HART Protocol, optional

Accuracy

1: +/-0.10% of span

2-4: +/-0.04% of span

5: +/-0.065% of span

Range

0-.83 inches H2O to 2000 psig

0-0.1 inches H2O to 0-2000 psid

Power

4-20 mA: 10.5-42.4 V dc with no load

Low Power: 6-12 V dc with no load

Materials

Sensor Wetted Parts: SST, Hastelloy, Monel, Tantalum

Fluid

Sensor fill fluid: Silicone, Inert (Halocarbon)

Mounting

Coplanar and Traditional flanges

Adapters: Cadmium and Nickel-plated CS, 316 SST
