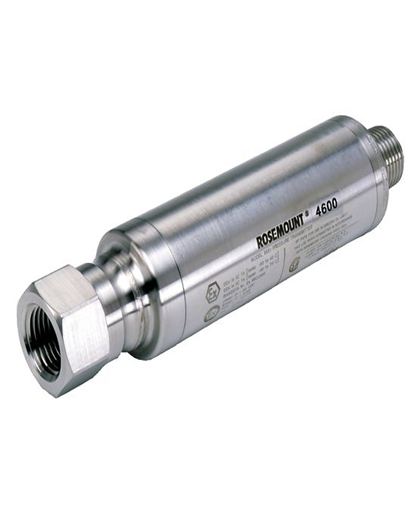

Rosemount 4600 Pressure Transmitter

Ideal for panel mount applications, the Rosemount 4600 Oil and Gas Panel Pressure Transmitter delivers reliable, industry-standard performance. This pressure transmitter is capable of measuring high pressure ratings of up to 20000 psi (1379 bar) and offers a rangedown of up to 40:1 for increased flexibility. Additionally, this device features a compact, lightweight design with an all-welded, stainless steel construction, providing a stable and robust solution that withstands harsh environments.

Availability: In stock
Request A Quote

Specification

Rosemount 4600 Pressure Transmitter

Standard Specification

Measures high pressure ratings of up to 20000 psi (1379 bar) for a stable and dependable solution

Compact, lightweight design is ideal for panel mount applications

All-welded stainless steel construction maximizes reliability in harsh environments

Up to 40:1 rangeability increases application flexibility

Installed 3-year stability of ± 0.5% of URL minimizes maintenance costs and improves efficiency

Warranty

Up to 5-year limited warranty

Rangedown

Up to 40:1

Communication Protocol

4-20 mA HART®

Measurement Range

Up to 20,000 psig (1379 bar) sealed gage, Up to 20,000 psia (1379 bar) absolute

Process Wetted Material

316L SST, Alloy C-276

Diagnostics

Basic Diagnostics

Certifications/Approvals

NACE®, hazardous location, see full specs for complete list of certifications

Process Wetted Material

316L SST, Alloy C-276

Diagnostics

Basic Diagnostics

Certifications/Approvals

NACE®, hazardous location, see full specs for complete list of certifications
