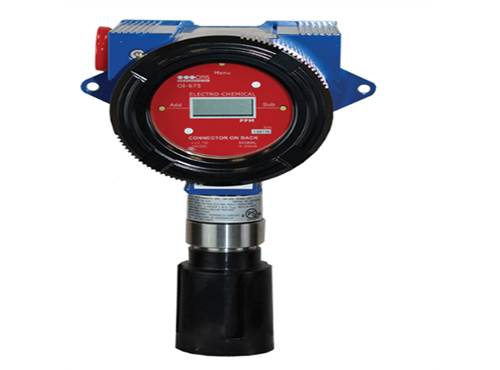

Otis Instruments OI-675 Sensor Assembly
Availability: In stock
Specification
| Sensor Type | Electrochemical |
| Power Type | Loop-Powered (2-Wire) |
| Operating Voltage | 12V to 24V DC |
| Current Draw | 35 mA Maximum |
| Display Screen | 3 Character, 7 Segment Display Screen |
| Product Compatibility | GEN II WireFree Transmitter (01-5900) |
| GEN II Wired Monitors (01-7010, 01-7032, 01-7440, 01-7480) | |
| Interface | 3 Push-Buttons (MENU, ADD and SUB) |
| 3 Magnetic, Non-Intrusive Switches for Calibration | |
| Tamb Temperature Range | -40°C to +50°C (Varies with Sensor Type) |
| Wired (Analog) Output | 4-20 mA (2-Wire) |
| Product Dimensions | 5.42 in. L x 6.03 in. W x 17.03 in. H (Max. Dimensions with Attachments) |
| Enclosure Materials | Aluminum Device Enclosure |
| 303 Stainless-Steel Sensor Housing | |
| Total Weight | 5.75 Ibs. |
| Product Mounting | Wall Mount (Included) |
| Approvals | QPS Component Certified Explosion-Proof (CO, H2S, O2, and SO2 Gas Types) |
| Hazardous Location Certification | Class I, Division 1, Groups C & D |
| Hardware Warranty | 1-Year Limited |
| Sensor Element Warranty | 1-Year (Varies with Gas Type) |
| Part Number Formula | 01-675-[Gas]-[Enclosure] |
| 01-675-X-O |
Description
The Otis Instruments OI-675 Series Toxic Gas Detector is a versatile assembly that uses an electrochemical sensor to detect a variety of gases. 2-Wire Loop-Powered to withstand extreme climatic conditions and harsh environments. Magnetic switches allow for non-intrusive calibration while in the field as well as full system settings and diagnostics.
Features
- Electrochemical Sensor
- Wired Communication
- Loop-Powered (2-Wire)
- 3 Character, 7 Segment Display Screen
- 3 Push-Button Interface (ADD, MENU, SUB) with 3 Corresponding Magnetic, Non-Intrusive Switches
- Operating Temperature Range of -40°C to +50°C
- Aluminum Device Enclosure
- 4-20 mA (2-Wire) Analog Output
- 303 Stainless-Steel Sensor Housing
- QPS Explosion Proof/Flame-Proof Certification for Select Gases
- 1-Year Limited Hardware Warranty
Please refer to datasheet for more information
Technical Data-Sheet
OTIS Instruments OI-675 Gas Leakage Sensor.pdf
