Model No: IGP20

Factory New

Reconditioned

New Surplus

Free Expert Consultation

Quick Turnaround Shipment

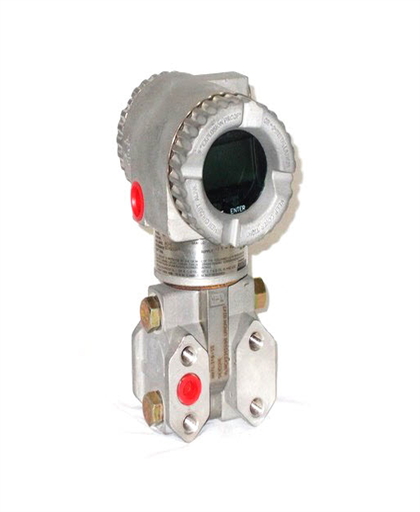

Foxboro IGP20 Series Electronic Transmitter

Availability: In stock

Specification
Description
Technical Data-Sheet
Build Model # Click here to Build Model

Specification

Output:-

4-20 mA Digital Signal, includes LCD Indicator with Pushbuttons for calibration and configuration
Intelligent: Digital FOXCOM or 4-20 mA, configurable
Intelligent: Digital HART and 4-20 mA
Voltage Output: 1-5 mV, Low Power

Range:-

Span Limits: IGP20 – 0.5 in H2O and 3000 psig
IAP20 – 3.5 in H2O and 3000 psia

Materials:-

Sensor Wetted Parts: Co-Ni-Cr, 316L ss, Hastelloy C, Monel, Tantalum, Gold-plated 316L ss.

Fluid:-

Sensor Fill Fluid: Silicone, Flourinert
Process Flanges: CS, 316 ss, Hastelloy, Monel, pvdf(Kynar)

Features:-

Long-term stability with drift is less than +0.05% of URL per year for 5-years.
Simple, elegant sensor packaging uses very few parts to achieve exceptionally high reliability
Co-Ni-Cr, 316L ss, and Nickel alloy (equivalent to Hastelloy® sensor materials for all transmitters.
Can be provided with numerous configurations of direct connect or remote mount seals.

Description

The Foxboro IGP20 is an intelligent, two-wire transmitter that provides precise and reliable measurement of gauge or absolute pressure. The Foxboro IAP10 transmits a 4 to 20mA output signal with a superimposed HART/FOXCOM digital signal. This can be used to monitor and remotely configure the Foxboro IGP20.

Technical Data-Sheet

Models-IAP10-IGP10-IAP20-IGP20-and-IDP10.pdf

Configure IGP20 Product

Build Model

Your Model Number:

Required*
Optional

Required

Your Model Number:

Attribute

Value

Select value to configure

Transmitter type * ELECTRONIC VERSION AND OUTPUT SIGNAL * STRUCTURE CODE * SPAN LIMITS * PROCESS CONNECTOR: (Matl Same As Process Cover) * CONDUIT CONNECTION & HOUSING MATERIAL * ELECTRICAL SAFETY *

IGP20

Measures Pressure And Transmits A Proportional Electrical Signal In Either Analog Or Digital Mode.

Intelligent; Digital FoxCom Or 4 To 20 mA, Configurable

Intelligent; Digital HART & 4 To 20 mA

Intelligent; FOUNDATION Fieldbus

4 To 20 mA; Includes Explosionproof Rating And LCD Indicator With Pushbuttons For Calibration, Configuration, Standard Pressure Units, And Rearanging (Excludes Custom Labels And Intrinsic Safety Rating)

Voltage Output, 1 To 5 Vdc, Low Power, Including LCD Indicator With Pushbuttons

Steel Hi-Side Cover, Co-Ni-Cr Sensor, Silicone Fill Fluid

Steel Hi-Side Cover, Co-Ni-Cr Sensor, Fluorinert Fill Fluid

Steel Hi-Side Cover, 316L ss Sensor, Silicone Fill Fluid

Steel Hi-Side Cover, 316L ss Sensor, Fluorinert Fill Fluid

Steel Hi-Side Cover, Hastelloy C Sensor, Silicone Fill Fluid

Steel Hi-Side Cover, Hastelloy C Sensor, Fluorinert Fill Fluid

316 ss Hi-Side Cover, Co-Ni-Cr Sensor, Silicone Fill Fluid

316 ss Hi-Side Cover, Co-Ni-Cr Sensor, Fluorinert Fill Fluid

316 ss Hi-Side Cover, 316L ss Sensor, Silicone Fill Fluid

316 ss Hi-Side Cover, 316L ss Sensor, Fluorinert Fill Fluid

316 ss Hi-Side Cover, 316L ss Gold Plated Material, Silicone Fill Fluid

316 ss Hi-Side Cover, Monel Sensor, Silicone Fill Fluid

316 ss Hi-Side Cover, Monel Sensor, Fluorinert Fill Fluid

316 ss Hi-Side Cover, Hastelloy C Sensor, Silicone Fill Fluid

316 ss Hi-Side Cover, Hastelloy C Sensor, Fluorinert Fill Fluid

Monel Hi-Side Cover, Monel Sensor, Silicone Fill Fluid

Monel Hi-Side Cover, Monel Sensor, Fluorinert Fill Fluid

Hastelloy C Hi-Side Cover, Hastelloy C Sensor, Silicone Fill Fluid

Hastelloy C Hi-Side Cover, Hastelloy C Sensor, Fluorinert Fill Fluid

Hastelloy C Hi-Side Cover, Tantalum Sensor, Silicone Fill Fluid

Hastelloy C Hi-Side Cover, Tantalum Sensor, Fluorinert Fill Fluid

pvdf (Kynar) Cover, Tantalum Sensor, Silicone Fill Fluid

pvdf (Kynar) Cover, Tantalum Sensor, Fluorinert Fill Fluid

Direct Connect Seal (Flanged PSFLT Or Sanitary PSSCT Or PSSST); Silicone Fill In Sensor

Direct Connect Seal (Flanged PSFLT Or Sanitary PSSCT Or PSSST); Fluorinert Fill In Sensor

Prepared For Schneider Remote Seal; Silicone Fill In Sensor

Prepared For SchneideRemote Seal; Fluorinert Fill In Sensor

Silicone Fill In Sensor, Prepared For Other Remote Seal

Fluorinert Fill In Sensor, Prepared For Other Remote Seal

0.12 And 7.5 kPa, 0.5 And 30 inH2O, 1.2 And 75 mbar

0.87 And 50 kPa, 3.5 And 200 inH2O, 8.7 And 500 mbar

0.007 And 0.21 MPa, 1 And 30 psi, 0.07 And 2.1 bar or kg/cm²

0.07 And 2.1 MPa, 10 And 300 psi, 0.70 And 21 bar or kg/cm²

0.70 And 21 MPa, 100 And 3000 psi, 7.0 And 210 bar or kg/cm²

1.38 And 34.5 MPa, 200 And 5000 psi, 13.8 And 345 bar or kg/cm²

None, Connect Directly To Process Cover

1/4 NPT

1/2 NPT

Rc 1/4

Rc 1/2

1/2 Schedule 80 Welding Neck

None, pvdf (Kynar) Insert Tapped For 1/2 NPT On Side Of 316 ss Process Cover

1/2 NPT Conduit Connection, Both Sides, Aluminum Housing

PG13.5 Conduit Connection, Both Sides, Aluminum Housing

1/2 NPT Conduit Connection, Both Sides, 316 ss Housing

PG13.5 Conduit Connection, Both Sides, 316 ss Housing

M20 Conduit Connection, Both Sides, Aluminum Housing

M20 Conduit Connection, Both Sides, 316 ss Housing

ATEX Intrinsically Safe; II 1 GD, EEx ia IIC, Zone 0

ATEX Flameproof; II 2 GD EEx d IIC, Zone 1

ATEX Protection n; II 3 GD, EEx nL IIC, Zone 2

Multiple ATEX Certifications - ATEX Intrinsically Safe; II 1 GD, EEx ia IIC, Zone 0; Or II 1/2 GD EEx ib IIC, Zone 0 / Zone 1; Or ATEX Protection n, II 3 GD, EEx nL IIC, Zone 2; Or ATEX Flameproof, II 2 GD EEx d IIC, Zone 1. The User Is Required to Permanently Mark In A Box On The Data Plate One Type Of Protection Only (ia & ib, d, or n) And Not Change This Mark.

CSA Intrinsically Safe For Class I, Division 1, Groups A, B, C, & D; Class II, Division 1, Groups E,F, & G; And Class III, Division 1. Also Class I, Division 2, Groups A,B,C, & D; Class II, Groups F & G; And Class III, Division 2. Explosionproof For Class I, Division 1, Groups B,C, & D; Dust-Ignitionproof For Class II, Division 1, Groups E,F,G; And Class III, Div 1. Zone Certified Intrinsically Safe Ex ia IIC And Ex n IIC. Dual Seal Certification per ANSI/ISA 12.27.01.2003.

CSA Zone Certified Flameproof Ex d IIC. Also Explosionproof For Class I, Division 1, Groups B,C & D And Dust-Ignitionproof For Class II, Division 1 Groups E,F & G, And Class III, Division 1. Also Intrinsically Safe For Class I, Division 1, Groups A,B,C & D; Class II, Division 1, Groups E,F & G; And Class III, Division 1 And Class I, Division 2, Groups A,B,C, & D; Class II, Groups F & G; And Class III, Division 2. Zone Certified Intrinsically Safe Ex ia IIC And Ex n IIC. Dual Seal Certification per ANSI/ISA 12.27.01.2003.

FM Intrinsically Safe For Class I, Division 1, Groups A, B, C, & D; Class II, Division 1, Groups E,F, & G; And Class III, Division 1. Also Class I, Division 2, Groups A,B,C, & D; Class II, Groups F & G; And Class III, Division 2. Explosionproof For Class I, Division 1, Groups B,C, & D; Dust-Ignitionproof For Class II, Division 1, Groups E,F,G; And Class III, Div 1. Zone Certified Intrinsically Safe AEx ia IIC And AEx n IIC.

FM Zone Certified Flameproof AEx d IIC. Also Explosionproof For Class I, Division 1, Groups B,C & D And Dust-Ignitionproof For Class II, Division 1 Groups E,F & G, And Class III, Division 1. Also Intrinsically Safe For Class I, Division 1, Groups A,B,C & D; Class II, Division 1, Groups E,F & G; And Class III, Division 1 And Class I, Division 2, Groups A,B,C, & D; Class II, Groups F & G; And Class III, Division 2. Zone Certified Intrinsically Safe AEx ia IIC And AEx n IIC.

IECEx Intrinsically Safe, FISCO Ex ia IIC T4

IECEx Intrinsically Safe, Protection n; FNICO Ex

IECEx Flameproof, Ex d IIC T6

Multi Mark (Intrinsic safe ONLY for FM, CSA & ATEX)

INMETRO Ex ia

INMETRO Ex d

EAC Ex ia

EAC Ex nL

EAC Ex d

IGP20

Measures Pressure And Transmits A Proportional Electrical Signal In Either Analog Or Digital Mode.

Intelligent; Digital FoxCom Or 4 To 20 mA, Configurable

Intelligent; Digital HART & 4 To 20 mA

Intelligent; FOUNDATION Fieldbus

Voltage Output, 1 To 5 Vdc, Low Power, Including LCD Indicator With Pushbuttons

Steel Hi-Side Cover, Co-Ni-Cr Sensor, Silicone Fill Fluid

Steel Hi-Side Cover, Co-Ni-Cr Sensor, Fluorinert Fill Fluid

Steel Hi-Side Cover, 316L ss Sensor, Silicone Fill Fluid

Steel Hi-Side Cover, 316L ss Sensor, Fluorinert Fill Fluid

Steel Hi-Side Cover, Hastelloy C Sensor, Silicone Fill Fluid

Steel Hi-Side Cover, Hastelloy C Sensor, Fluorinert Fill Fluid

316 ss Hi-Side Cover, Co-Ni-Cr Sensor, Silicone Fill Fluid

316 ss Hi-Side Cover, Co-Ni-Cr Sensor, Fluorinert Fill Fluid

316 ss Hi-Side Cover, 316L ss Sensor, Silicone Fill Fluid

316 ss Hi-Side Cover, 316L ss Sensor, Fluorinert Fill Fluid

316 ss Hi-Side Cover, 316L ss Gold Plated Material, Silicone Fill Fluid

316 ss Hi-Side Cover, Monel Sensor, Silicone Fill Fluid

316 ss Hi-Side Cover, Monel Sensor, Fluorinert Fill Fluid

316 ss Hi-Side Cover, Hastelloy C Sensor, Silicone Fill Fluid

316 ss Hi-Side Cover, Hastelloy C Sensor, Fluorinert Fill Fluid

Monel Hi-Side Cover, Monel Sensor, Silicone Fill Fluid

Monel Hi-Side Cover, Monel Sensor, Fluorinert Fill Fluid

Hastelloy C Hi-Side Cover, Hastelloy C Sensor, Silicone Fill Fluid

Hastelloy C Hi-Side Cover, Hastelloy C Sensor, Fluorinert Fill Fluid

Hastelloy C Hi-Side Cover, Tantalum Sensor, Silicone Fill Fluid

Hastelloy C Hi-Side Cover, Tantalum Sensor, Fluorinert Fill Fluid

pvdf (Kynar) Cover, Tantalum Sensor, Silicone Fill Fluid

pvdf (Kynar) Cover, Tantalum Sensor, Fluorinert Fill Fluid

Direct Connect Seal (Flanged PSFLT Or Sanitary PSSCT Or PSSST); Silicone Fill In Sensor

Direct Connect Seal (Flanged PSFLT Or Sanitary PSSCT Or PSSST); Fluorinert Fill In Sensor

Prepared For Schneider Remote Seal; Silicone Fill In Sensor

Prepared For SchneideRemote Seal; Fluorinert Fill In Sensor

Silicone Fill In Sensor, Prepared For Other Remote Seal

Fluorinert Fill In Sensor, Prepared For Other Remote Seal

0.12 And 7.5 kPa, 0.5 And 30 inH2O, 1.2 And 75 mbar

0.87 And 50 kPa, 3.5 And 200 inH2O, 8.7 And 500 mbar

0.007 And 0.21 MPa, 1 And 30 psi, 0.07 And 2.1 bar or kg/cm²

0.07 And 2.1 MPa, 10 And 300 psi, 0.70 And 21 bar or kg/cm²

0.70 And 21 MPa, 100 And 3000 psi, 7.0 And 210 bar or kg/cm²

1.38 And 34.5 MPa, 200 And 5000 psi, 13.8 And 345 bar or kg/cm²

None, Connect Directly To Process Cover

1/4 NPT

1/2 NPT

Rc 1/4

Rc 1/2

1/2 Schedule 80 Welding Neck

None, pvdf (Kynar) Insert Tapped For 1/2 NPT On Side Of 316 ss Process Cover

1/2 NPT Conduit Connection, Both Sides, Aluminum Housing

PG13.5 Conduit Connection, Both Sides, Aluminum Housing

1/2 NPT Conduit Connection, Both Sides, 316 ss Housing

PG13.5 Conduit Connection, Both Sides, 316 ss Housing

M20 Conduit Connection, Both Sides, Aluminum Housing

M20 Conduit Connection, Both Sides, 316 ss Housing

ATEX Intrinsically Safe; II 1 GD, EEx ia IIC, Zone 0

ATEX Flameproof; II 2 GD EEx d IIC, Zone 1

ATEX Protection n; II 3 GD, EEx nL IIC, Zone 2

IECEx Intrinsically Safe, FISCO Ex ia IIC T4

IECEx Intrinsically Safe, Protection n; FNICO Ex

IECEx Flameproof, Ex d IIC T6

Multi Mark (Intrinsic safe ONLY for FM, CSA & ATEX)

INMETRO Ex ia

INMETRO Ex d

EAC Ex ia

EAC Ex nL

EAC Ex d

Your Model Number: IGP20

Optional

Your Model Number:

SUFFIX(ES) INCLUDED Accessories - IAP20, IGP20 Triconex Safety Pressure Transmitters Quality Assurance Certificates

None

Painted Steel Mounting Bracket With Plated Steel Bolts

316 ss Mounting Bracket With 316 ss Bolts

Universal 304 S.Steel Bracket With 304 S.S Bolts Stainless Steel Bolts

Digital Indicator, Internal Pushbuttons, And Window Cover

Blind (Solid) Cover Over Standard LCD

SIL2 TUV Rhineland

Single Ended Process Covers With Standard Steel M10 Bolting

Double Ended Process Covers With Standard Steel M10 Bolting (Blind Kidney Flange On Back)

Single Ended Process Covers With Standard Steel 7/16-Inch Bolting

Double Ended Process Covers With Standard Steel 7/16-Inch Bolting (Blind Kidney Flange On Back)

Single Ended Process Covers With 316 ss 7/16-Inch Bolting

Double Ended Process Covers With 316 ss 7/16-Inch Bolting (Blind Kidney Flange On Back)

Single Ended Process Covers With 17-4 ss 7/16-Inch Bolting

Double Ended Process Covers With 17-4 ss 7/16-Inch Bolting (Blind Kidney Flange On Back)

Unit Degreased (Not For Oxygen/Chlorine Service)

Cleaned And Prepared For Oxygen Service

Cleaned And Prepared For Chlorine Service

316 ss Bolts And Nuts

17-4 ss Bolts And Nuts

B7M Bolts And Nuts (NACE)

Hawke Type Cable Gland

Plastic PG13.5 Connector

M20 Connector

Trumpet Shaped PG13.5 Cable Gland (Nickel Plated Brass)

External Zero Adjustment

Custody Transfer Lock And Seal

External Zero Adjustment And Custody Transfer Lock And Seal

Steel Ermeto Connector, Connecting 6 mm Tubing To 1/4 NPT Process Connector

Steel Ermeto Connector, Connecting 12 mm Tubing To 1/2 NPT Process Connector

316 ss Ermeto Connector, Connecting 6 mm Tubing To 1/4 NPT Process Connector

316 ss Ermeto Connector, Connecting 12 mm Tubing To 1/2 NPT Process Connector

Digital Output (4 To 20 mA Degault If Not Selected)

Full Factory Configuration (Requires Configuration Form)

Manifold Attachment and Leak Tested

Manifold Attachment and Pressure Certificatiion

Without Instruction Book & CD

Gasket For Vacuum Service With Seals

Vent Screw In Side Of Process Cover

Supplemental Customer Tag

Low Temperature Operative Limit Of -50°C (-58°F)

None

MR-01

NACE Standard MR-01-75 Process Wetted Parts Comply With The National Association Of Corrosion Engineers (NACE) Standard MR-01-75.

BM-M4TP-VIC-4

2-Valve, CS, Conventional Mtg Anderson, Greenwood 2-Valve Bypass Manifold With Carbon Steel Body/Bonnet, 303 ss Stem, 17-4 pH ss Ball, And Conventional Mounting.

BM-M4TP-VIS-4

2-Valve, SS, Conventional Mtg Anderson, Greenwood 2-Valve Bypass Manifold With 316 Stainless Steel Body/Bonnet, 316 Stainless Steel Stem And Ball, And Conventional Mounting.

BM-M4TP-VIS-4-SG

2-Valve, SS, Monel Stem, Conventional Mtg Anderson, Greenwood 2-Valve Bypass Manifold With 316 Stainless Steel Body/Bonnet, Monel Stem And Ball, And Conventional Mounting.

BM-M4TP-VIC-4-A

2-Valve, CS, Manifold Mtd Option Anderson, Greenwood 2-Valve Bypass Manifold With Carbon Steel Body/Bonnet, 303 ss Stem, 17-4 pH ss Ball, And Manifold Mount Option.

BM-M4TP-VIS-AM

2-Valve, SS, Manifold Mtd Option Anderson, Greenwood 2-Valve Bypass Manifold With 316 Stainless Steel Body/Bonnet, 316 Stainless Steel Stem And Ball, And Manifold Mount Option.

BM-M4TP-VIS-4-AM-SG

2-Valve, SS, Monel Stem, Manifold Mtd Option Anderson, Greenwood 2-Valve Bypass Manifold With AISI Type 316 Stainless Steel Body/Bonnet, Monel Stem And Ball, And Manifold Mount Option.

M4TPHPS-4-XP-AM

Power Industry 2 Valve Manifold Process 1/2 inch FNPT x Instrumenmt Flange x 1/4 in FNPT ASME B31.1, B31.3 Meets MSS SP-105 Body Material SS, A497-316 With AGCO 2" Pipe Mounting Bracket

M4TPHPS-4-XP

Power Industry 2 Valve Static Pressure Manifold: Process 1/2 inch FNPT x Instrumenmt Flange Meets ASME B31.1 and 31.3 Specifications Meets MSS SP-105 Body Material 316 SS

SB-11

Plug-In Shorting Bar

None

Aluminum Housing 1/2 NPT Red

Aluminum Housing PG13.5 Red

Aluminum Housing M20 Red

Aluminum Housing 1/2 NPT Yellow

Aluminum Housing PG13.5 Yellow

Aluminum Housing M20 Yellow

None

CERT-A

Compliance Certificate The certificate states that the instrument is in compliance with all Invensys Foxboro published documentation (PSS, MI, DP, PL, etc.).

CERT-B

Certificate Of Conformance The certificate states that the technical/quality portion of customerspurchase order has been reviewed by quality engineering and that the instrument is in conformance with the customerstechnical purchase order requirements as well as Invensys Foxboro documentation. Customer purchase order must be forwarded to Order Management, B52-AB, the same time the order is entered."Project Orders" a Cert "A" should be ordered"

CERT-C

Material Certificate - Non-Specific - BS EN 10204 2.1 The certificate lists the instrument process wetted metallic parts by material, part number, and description of piece part. It also states that other evidence of conformance/compliance can be provide. Traceability to individual heat numbers is not available and the non-specific material certificates are not supplied. This certificate does not include resale options such as seals and bypass manifolds. CERT-C is signed and dated by the appropriate Quality Engineer or other qualified personnel.

CERT-D

Material Certificate The certificate lists the instrument process wetted metallic parts by material, part number, and description of piece part. The material certificates are included and it states that the instrument conforms to BS EN 10204 3.1 (formerly DIN 50049 3.1.b). When the instrument includes an accessory item of manifold valve assembly, IFO/IFOU Integral Orifice, or a Pressure Seal, specified by use of an AS Reference or Linked Model Code, the certificate applies to both the instrument and the accessory.

CERT-E

Calibration Certificate The certificate shows calibration data for the instrument along with statement that calibration test equipment used is traceable to the National Institute of Standards and Technology (NIST). NIST was formerly called the National Bureau of Standards (NBS).

CERT-F

Certificate Of Pressure Test The certificate states that the instrument has been pressure tested for one minute, or as required per standard, without leaks. The test pressure depends on the Maximum Working Pressure (MWP) of the instrument. Test pressure equals 1.5 times MWP for MWP of 100 to 5000 psi (0.7 to 35 MPa), 1.4 times MWP for MWP over 5000 and up to 10000 psi (35 to 70 MPa), 1.3 times MWP for MWP over 10000 and up to 20000 psi (70 to 140 MPa), 1.2 times MWP for MWP over 20000 and up to 25000 (140 to 175 MPa), and 1.1 times MWP for MWP over 25000 psi (175 MPa).

CERT-G

Certificate Of Cleaning The certificate states that the instrument has been specially degreased, cleaned for oxygen service, cleaned for chlorine service, etc., to minimize contaminants to the end usersprocess, with special tagging and packaging per Invensys Foxboro cleaning standard CES 260. Note: The cleaning option (OS-W, OS-FC, CLS, etc.) must be added to the base instrument.

CERT-H

Weight Certificate The certificate lists the unpackaged weight of the instrument in kilograms, including any and all options that are (or will be) physically attached.

CERT-I

SASO Certificate Certificate of conformity in execution of SASO Board of Directors; decision No. 58 dated 1405 (H)-09-17 and SASO SSA 16, 17, 18, and 86.

CERT-J

Electrical Agency Certificate Copy of approval paperwork received from agency (FM, CSA, CENELEC, etc.) showing approval numbers.

CERT-K

NACE Certificate The certificate states that the metallic process wetted parts of the instrument are in compliance with the National Association of Corrosion Engineers (NACE) Standard MR-01-75 and MR01-03 in regards to resistance to sulfide stress cracking. Some products require that auxiliary specification "MR-01" be specified and priced. Refer to appropriate instrument sections of Price Book.

CERT-L

SIL 2 Certificate This declaration of conformity states that the listed models have been assessed to applicable IEC 61508 requirements in support of SIL 2 applications and lists the key SIL parameters. Includes the signature of the Manager of Product Qualification.

CERT-M

PMI Certificate of Process Wetted Parts Certificate of Positive Material Identification. Provide PMI testing and certificate stating that the pressure wetted material(s) on this order are in conformance with the applicable ASTM standards. Testing provided in-house at Invensys/Foxboro facility using a non-destructive X-ray reflective analysis (XRF) analyzer (Bruker S1 Turbo).

CERT-N

PMI Certificate for Pressure Containment Parts

CERT-S

SIL 2-TUV Certificate A safety certificate provided by TUV meeting SIL safety requirements.

CERT-W

ASME Weld Certificate This certificate states that all welds produced at Invensys/Foxboro on this order were performed in accordance with ASME Section IX of the Boiler Code.

None

Painted Steel Mounting Bracket With Plated Steel Bolts

316 ss Mounting Bracket With 316 ss Bolts

Universal 304 S.Steel Bracket With 304 S.S Bolts Stainless Steel Bolts

Digital Indicator, Internal Pushbuttons, And Window Cover

Blind (Solid) Cover Over Standard LCD

SIL2 TUV Rhineland

Single Ended Process Covers With Standard Steel M10 Bolting

Double Ended Process Covers With Standard Steel M10 Bolting (Blind Kidney Flange On Back)

Single Ended Process Covers With Standard Steel 7/16-Inch Bolting

Double Ended Process Covers With Standard Steel 7/16-Inch Bolting (Blind Kidney Flange On Back)

Single Ended Process Covers With 316 ss 7/16-Inch Bolting

Double Ended Process Covers With 316 ss 7/16-Inch Bolting (Blind Kidney Flange On Back)

Single Ended Process Covers With 17-4 ss 7/16-Inch Bolting

Double Ended Process Covers With 17-4 ss 7/16-Inch Bolting (Blind Kidney Flange On Back)

Unit Degreased (Not For Oxygen/Chlorine Service)

Cleaned And Prepared For Oxygen Service

Cleaned And Prepared For Chlorine Service

316 ss Bolts And Nuts

17-4 ss Bolts And Nuts

B7M Bolts And Nuts (NACE)

Hawke Type Cable Gland

Plastic PG13.5 Connector

M20 Connector

Trumpet Shaped PG13.5 Cable Gland (Nickel Plated Brass)

External Zero Adjustment

Custody Transfer Lock And Seal

External Zero Adjustment And Custody Transfer Lock And Seal

Steel Ermeto Connector, Connecting 6 mm Tubing To 1/4 NPT Process Connector

Steel Ermeto Connector, Connecting 12 mm Tubing To 1/2 NPT Process Connector

316 ss Ermeto Connector, Connecting 6 mm Tubing To 1/4 NPT Process Connector

316 ss Ermeto Connector, Connecting 12 mm Tubing To 1/2 NPT Process Connector

Digital Output (4 To 20 mA Degault If Not Selected)

Full Factory Configuration (Requires Configuration Form)

Manifold Attachment and Leak Tested

Manifold Attachment and Pressure Certificatiion

Without Instruction Book & CD

Gasket For Vacuum Service With Seals

Vent Screw In Side Of Process Cover

Supplemental Customer Tag

Low Temperature Operative Limit Of -50°C (-58°F)

None

MR-01

NACE Standard MR-01-75 Process Wetted Parts Comply With The National Association Of Corrosion Engineers (NACE) Standard MR-01-75.

BM-M4TP-VIC-4

2-Valve, CS, Conventional Mtg Anderson, Greenwood 2-Valve Bypass Manifold With Carbon Steel Body/Bonnet, 303 ss Stem, 17-4 pH ss Ball, And Conventional Mounting.

BM-M4TP-VIS-4

2-Valve, SS, Conventional Mtg Anderson, Greenwood 2-Valve Bypass Manifold With 316 Stainless Steel Body/Bonnet, 316 Stainless Steel Stem And Ball, And Conventional Mounting.

BM-M4TP-VIS-4-SG

2-Valve, SS, Monel Stem, Conventional Mtg Anderson, Greenwood 2-Valve Bypass Manifold With 316 Stainless Steel Body/Bonnet, Monel Stem And Ball, And Conventional Mounting.

BM-M4TP-VIC-4-A

2-Valve, CS, Manifold Mtd Option Anderson, Greenwood 2-Valve Bypass Manifold With Carbon Steel Body/Bonnet, 303 ss Stem, 17-4 pH ss Ball, And Manifold Mount Option.

BM-M4TP-VIS-AM

2-Valve, SS, Manifold Mtd Option Anderson, Greenwood 2-Valve Bypass Manifold With 316 Stainless Steel Body/Bonnet, 316 Stainless Steel Stem And Ball, And Manifold Mount Option.

BM-M4TP-VIS-4-AM-SG

2-Valve, SS, Monel Stem, Manifold Mtd Option Anderson, Greenwood 2-Valve Bypass Manifold With AISI Type 316 Stainless Steel Body/Bonnet, Monel Stem And Ball, And Manifold Mount Option.

M4TPHPS-4-XP-AM

Power Industry 2 Valve Manifold Process 1/2 inch FNPT x Instrumenmt Flange x 1/4 in FNPT ASME B31.1, B31.3 Meets MSS SP-105 Body Material SS, A497-316 With AGCO 2" Pipe Mounting Bracket

M4TPHPS-4-XP

Power Industry 2 Valve Static Pressure Manifold: Process 1/2 inch FNPT x Instrumenmt Flange Meets ASME B31.1 and 31.3 Specifications Meets MSS SP-105 Body Material 316 SS

SB-11

Plug-In Shorting Bar

None

Aluminum Housing 1/2 NPT Red

Aluminum Housing PG13.5 Red

Aluminum Housing M20 Red

Aluminum Housing 1/2 NPT Yellow

Aluminum Housing PG13.5 Yellow

Aluminum Housing M20 Yellow

None

CERT-A

Compliance Certificate The certificate states that the instrument is in compliance with all Invensys Foxboro published documentation (PSS, MI, DP, PL, etc.).

CERT-B

CERT-C

CERT-D

CERT-E

CERT-F

CERT-G

CERT-H

Weight Certificate The certificate lists the unpackaged weight of the instrument in kilograms, including any and all options that are (or will be) physically attached.

CERT-I

SASO Certificate Certificate of conformity in execution of SASO Board of Directors; decision No. 58 dated 1405 (H)-09-17 and SASO SSA 16, 17, 18, and 86.

CERT-J

Electrical Agency Certificate Copy of approval paperwork received from agency (FM, CSA, CENELEC, etc.) showing approval numbers.

CERT-K

CERT-L

CERT-M

CERT-N

PMI Certificate for Pressure Containment Parts

CERT-S

SIL 2-TUV Certificate A safety certificate provided by TUV meeting SIL safety requirements.

CERT-W

ASME Weld Certificate This certificate states that all welds produced at Invensys/Foxboro on this order were performed in accordance with ASME Section IX of the Boiler Code.

Your Model Number: IGP20

Note : Optional filter will be appear after selecting all required filters.

Your Model Number: IGP20

Add to RFQ Cart

Foxboro IGP20 Series Electronic Transmitter

Related Products/Accessories

IGP10

RFQ
