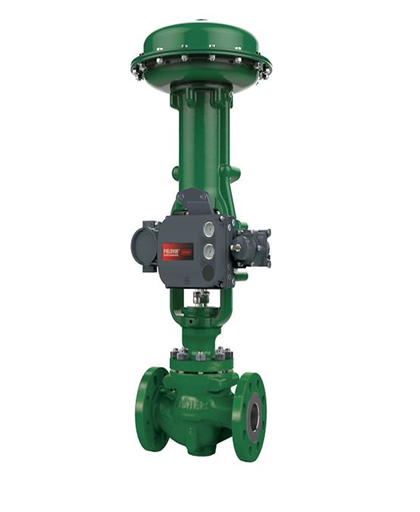

Fisher easy-e ET Control Valve
Availability: In stock
Specification
- ENVIRO-SEAL™ packing systems that provide an improved stem seal to help prevent the loss of process fluid are available. These packing systems feature PTFE or Graphite ULF packing with live-loading for reduced packing maintenance.
- Controlled compression of standard seat construction protects PTFE disk between metal disk seat and disk retainer. Excellent shutoff is maintained by a backup ring or spring-loading that forces the valve plug seal ring against the cage.
- Rugged cage guiding provides high valve plug stability, which reduces vibration and mechanical noise.
- Increased wear resistance of hardened stainless steel trim means longer-lasting service.
- Valves are available with dimensions specified by EN/DIN standards.
- Unless otherwise noted, references are to NACE MR0175-2002. Optional materials are available to meet NACE MR0103 and NACE MR0175 / ISO 15156.
Certifications | SIL capable, Fugitive Emission, NACE |
Critical Service | Noise Abatement, Cavitation, Steam Condition, Erosive, Low Flow, Corrosive, General Service, Outgassing, Flashing |
Flow Characteristics | Equal percentage, Linear, Special Characterization, Quick Opening |
Material | Carbon Steel, Stainless, Duplex, Alloy |
Operating Temperature | Standard Temperature |
Pressure Class | PN, ASME |
Process Connection Type | Flanged, Butt Weld, RTJ, Threaded, Socket Weld |
Shutoff Class | Class IV (FCI 70-2), Class V (FCI 70-2), Class VI (FCI 70-2) |
Valve Size | NPS 1 through NPS 30 |
Valve Size Standard | NPS, DN |
Other Configurations | Contact your local Emerson business partner or sales office to learn about additional specifications or options for this product. |
Description
The Fisher easy-e ET valve is your solution for all general applications with high process temperatures, featuring a balanced plug design and cage-guided trim. Available in globe or angle body, these valves can provide up to Class V or VI shutoff.
