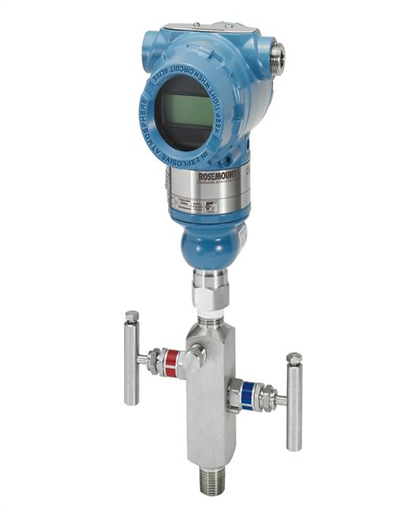

Rosemount 3051 In-Line Pressure Transmitter offers span accuracy of 0.04% and is specially engineered for 10 year installed stability. This transmitter provides all the necessary data required to monitor, control, and run processes. This industry-leading pressure transmitter can be a reliable option for pressure and level measurement. This in-line transmitter has features, such as power advisory diagnostics and wide range down, which meet diverse pressure measurement requirements, and is suitable for safety installations.
Specification
Rosemount 3051TG4A2B21AM5 Pressure Transmitters
Output
4-20 mA with digital signal based on HART Protocol
Low Power, 1-5 V dc with digital signal based on HART Protocol
Low power, 0.8-3.2 V dc with digital signal based on HART Protocol, optional
Accuracy
1-4: +/-0.04% of span
5: +/-0.075% of span
Power
4-20 mA: 10.5-42.4 V dc with no load
Low Power: 6-12 V dc with no load
Mounting
Coplanar and Traditional flanges
Adapters: Cadmium and Nickel-plated CS, 316 SST
Range
0-0.3 to 0-10,000 psig
Materials
Sensor Wetted Parts: SST, Hastelloy, Monel, Tantalum
Fluid
Sensor fill fluid: Silicone, Inert (Halocarbon)
