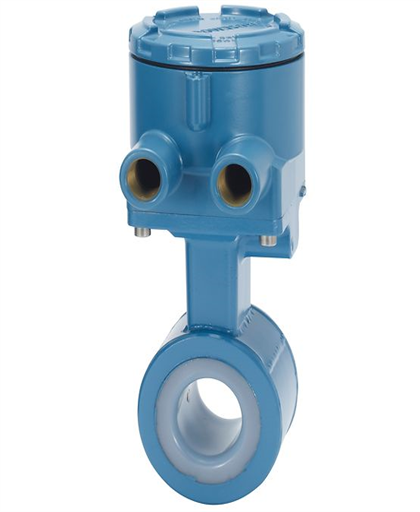

Rosemount 8711 Wafer Magnetic Flow Meter Sensors

The flangeless design of the Rosemount 8711 Wafer Magnetic Flow Meter Sensor makes it an economical, compact and lightweight alternative to flanged magnetic flowmeters. Choose from a wide range of rugged liner and electrode material options compatible with virtually all applications, from highly corrosive liquids to fibrous slurries often considered difficult to measure with other devices. For easy installation, alignment spacer kits are provided with every 8711 meter to center the sensor in the process line.

Availability: In stock
Request A Quote

Specification

Rosemount 8711 Wafer Magnetic Flow Meter Sensors

Standard Specification

Cut costs with a flangeless construction for minimum size and weight

Compact shape is ideal for installation in locations with limited amount of straight run pipe

Suit any process application with available rugged liner options and standard, grounding and bullet-nose electrodes

Simplify installation with a lightweight, flangeless design

Eliminate gaskets and prevent moisture ingress with an all-welded sensor

Minimize maintenance and repair with an obstructionless design featuring no moving parts

Avoid process shutdown with a removable and replaceable terminal block that enables repairs in the field

Accuracy

Up to 0.15% of volumetric flow rate accuracy over 13:1 flow turndowns, 0.25% over 40:1 flow turndown

Line Sizes

0.15-8 inch (4-200mm)

Liner Materials

ETFE, PTFE, and PFA

Electrode Materials

316L Stainless Steel, Nickel Alloy, Platinum, Tantalum, Titanium
Consult factory for additional material options

Flange Ratings

ASME B16.5 Class 150-300
DIN PN 10-40

Interchangeability

Compatible with all 8700 Series transmitters
Compatible with legacy transmitters: 8712D, 8712C, 8732C, 8742C
