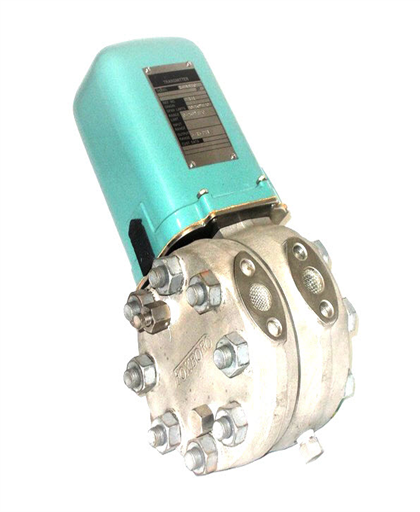

Foxboro 13HA Pneumatic Transmitter

Availability: In stock
Specification
Accuracy:-
Includes Linearity, hysteresis, and repeatability
  • For Spans between 5 and 130 kPa, 20 and 525 inH2O, or 50 and 1300 mbar differential pressure (ΔP): ±0.5% of span
  • For Spans between 130 and 210 kPa, 525 and 850 inH2O, or 13
Dead Band:-
  • 0.05% of span
Repeatability:-
  • 0.1% of span
Hysteresis:-
  • 0.12 kPa, 0.05 inH2O, or 0.12 mbar ΔP; or 0.10% of span, whichever is greater
Approximate Mass:-
  • 13 kg (29 lb)
Reproducibility:-
  • 0.15% of span
Span Limits:-
  • 0-5 and 0-62 kPa (0-20 and 0-250 inH2O, 0-50 and 0-620 mbar or 0-500 and 0-6350 mmH2O or 0-0.5 and 0-6.35 mH2O) ΔP
  • 0-50 and 0-210 kPa (0-200 and 0-850 inH2O, 0-0.5 and 0-2.1 bar or 0-5.0 and 0-21.6 mH2O) ΔP
Body Material:-
  • 316 ss
Process Connectors (a):-
  • Tapped for 1/4 NPT
  • Tapped for 1/2 NPT
  • Tapped for R 1/4
  • Tapped for R 1/2
  • Machined for 9/16-18 Aminco fitting
  • None. Body tapped for 1/4 NPT
Optional Suffix:-
  • Zero Elevation Kit
  • Zero Suppression Kit
Description
The Foxboro® brand Models 13HA pneumatic d/p Cell transmitter’s measure differential pressure and transmit a standard pneumatic signal to receivers which may be several hundred meters or yards away. These transmitters are used in flow, liquid level, density, and low pressure measurement applications. They offer wide span adjustability and broad zero suppression and zero elevation capabilities within the range limits for each series. They are ideal for the most demanding applications.
