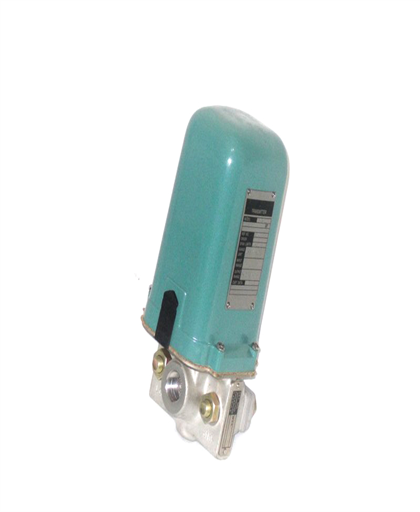

Foxboro 11GM,11GH Series Pneumatic Gauge Pressure Transmitters

Foxboro 11GM Pneumatic Transmitters

The Foxboro® brand Models 11GM and 11GH Transmitters accurately measure gauge pressure and transmit a proportional pneumatic output signal to receivers which may be several hundred meters or yards away. Spans are fully adjustable up to a 10:1 ratio, providing wide rangeability in a single instrument. Fewer stand-by transmitters are required. The Models 11GM and 11GH Transmitters use the same topworks as other Foxboro Pneumatic d/p Cell ® Transmitters. Since accuracy is a function of calibrated span, precision is retained even with highly elevated- or suppressed-zero ranges.

Availability: In stock

Accuracy:-

+0.25% of calibrated span

NACE:-

Compliance to NACE Standard MR-01-75

Ambient Temperature Limits:-

-40 and +120°C (-40 and +250°F)

Body Temperature Limits:-

-40 and +190°C (-40 and + 375°F).

Repeatability:-

Wetted Parts code S: 0.1% of calibrated span.

Wetted Parts code M: 0.2% of calibrated span.

Material:-

Cover: High-impact, glass-filled polycarbonate.

Body Bolts: Alloy steel per ASTM A193 Grade B7.

Span Limits:-

0.07 and 0.56 MPa or 10 and 80 psi

0.14 and 1.4 MPa or 20 and 200 psi

0.3 and 2.8 MPa or 40 and 400 psi

0.7 and 7 MPa or 100 and 1000 psi

1.4 and 14 MPa or 200 and 2000 psi

Process Connectors (b):-

1/4 NPT

1/2 NPT

R1/4 (metric)

R1/2 (metric)

Machined for 9/16-18 Aminco fitting (b)

Air Connections:-

The supply and output connections are tapped for 1/ 4 NPT

Optional Suffix

Zero Elevation

Zero Suppression

Model Number	Transmitter Type	Pressure Range/Span	Brand	Category	Availability	RFQ
11GMAS2	Medium Range Measurement	10 And 80 psi, 0.07 And 0.56 MPa, 0.7 And 5.6 bar or kg/cm²	Foxboro	Pneumatic Transmitters	Yes	RFQ
11GMBS1	Medium Range Measurement	20 And 200 psi, 0.14 And 1.4 MPa, 1.4 And 14 bar or kg/cm²	Foxboro	Pneumatic Transmitters	Yes	RFQ
11GMBS2	Medium Range Measurement	20 And 200 psi, 0.14 And 1.4 MPa, 1.4 And 14 bar or kg/cm²	Foxboro	Pneumatic Transmitters	Yes	RFQ
11GMBS5	Medium Range Measurement	20 And 200 psi, 0.14 And 1.4 MPa, 1.4 And 14 bar or kg/cm²	Foxboro	Pneumatic Transmitters	Yes	RFQ
11GMCM2	Medium Range Measurement	40 And 400 psi, 0.3 And 2.8 MPa, 3.0 And 28 bar or kg/cm²	Foxboro	Pneumatic Transmitters	Yes	RFQ
11GMDS2	Medium Range Measurement	100 And 1000 psi, 0.7 And 7.0 MPa, 7.0 And 70 bar or kg/cm²	Foxboro	Pneumatic Transmitters	Yes	RFQ
11GMDS2L	Medium Range Measurement	100 And 1000 psi, 0.7 And 7.0 MPa, 7.0 And 70 bar or kg/cm²	Foxboro	Pneumatic Transmitters	Yes	RFQ
