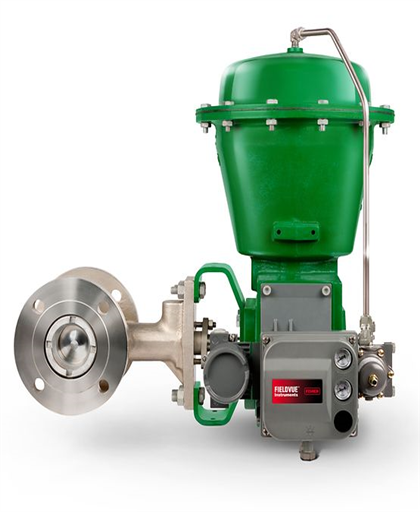

Fisher V500 Eccentric Plug Valve
Availability: In stock
Specification
- Self-centering seat ring and rugged plug allow forward or reverse flow with tight shutoff in either flow direction.
- Integral valve body flanges mate with many different classes of pipeline flanges, satisfying a variety of piping requirements.
- Streamlined flow passages, rugged components, and a wide choice of erosion-resistant trim materials all promote long, dependable service life in erosive applications.
- Path of eccentric plug minimizes contact with seat ring when opening, reducing seat wear and friction.
- Specially selected trim materials and body coatings help to withstand oil sands, furnace feed, and other highly erosive applications.
- Durable, solid metal or VTC seat ring and valve plug shutoff tightly without deforming plug arms or employing thin ball seals.
- No special orientation, precision clamping or repetitive centering of valve plug and seat ring is required when tightening the retainer, promoting accurate alignment and easy assembly.
| Certifications | SIL capable, ATEX, CUTR, PED, CRN, Fugitive Emission, NACE |
| Critical Service | Noise Abatement, Cavitation, Dirty Service, Erosive, Low Flow, General Service |
| Flow Characteristics | Linear |
| Material | Carbon Steel, Stainless, Duplex, Alloy |
| Operating Temperature | Standard Temperature |
| Pressure Class | PN, ASME |
| Process Connection Type | Flanged |
| Shutoff Class | Class IV (FCI 70-2) |
| Valve Size | NPS 1, NPS 1-1/2, NPS 2, NPS 3, NPS 4, NPS 6, NPS 8 |
| Valve Size Standard | NPS, DN |
| Other Configurations | Contact your local Emerson business partner or sales office to learn about additional specifications or options for this product. |
Description
The Fisher V500 rotary control valve combines globe valve ruggedness with the efficiency of a rotary valve. It is designed to control erosive, coking, and other hard-to-handle fluids, providing either throttling or on/off operation.
