Micro Motion CMFHC Series High-Capacity Coriolis Mass Flowmeters

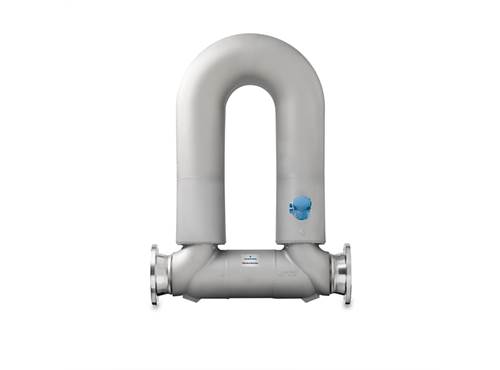

Micro Motion CMFHC Series Coriolis Mass Flow Meter

A 316L Stainless Steel ELITE high capacity Coriolis flow meter designed to deliver accurate, repeatable flow measurement in the most challenging applications.

Availability: In stock

Mass flow accuracy (Liquid)

±0.10% of rate

Mass flow repeatability (Liquid)

±0.05% of rate

Volume flow accuracy (Liquid)

±0.10% of rate

Volume flow repeatability (Liquid)

±0.05% of rate

Mass flow accuracy (Gas)

±0.25% of rate

Mass flow repeatability (Gas)

±0.20% of rate

Density accuracy (Liquid)

±0.0005 g/cm3 (±0.5 kg/m3)

Density repeatability (Liquid)

±0.0002 g/cm3 (±0.2 kg/m3)

Temperature accuracy

±1 °C ±0.5% of reading

Sensor maximum working pressure

1,480 psig (102 barg)

Meter approvals, calibrations, and certifications

CSA

IECEx

NEPSI

ATEX

Ingress Protection

EMC effects

Features

Get unparalleled measurement sensitivity and stability from this uniquely designed meter

Gain real-time and in-process measurement integrity assurance with Smart Meter Verification

Realize unmatched flow and density measurement performance in your most challenging liquid, gas and slurry applications

Achieve superb measurement confidence with the highest immunity to fluid, process and environmental effects

Improve scalability with a broad array of application coverage including hygienic, cryogenic and high-pressure

Implement the widest process-measurement range – -400°F to 662°F (-240°C to 350°C) and up to 6,000 psig (414 barg)

Widest range of meter approvals and certifications, including; CSA, ATEX, NEPSI, IECEx, Ingress Protection 66/67, SIL2 and SIL3, marine, and custody transfer approvals

Choose from models available in 316L Stainless Steel and super-duplex materials

Interact with our 3D model to learn more about our ELITE Coriolis Flow and Density Meters
