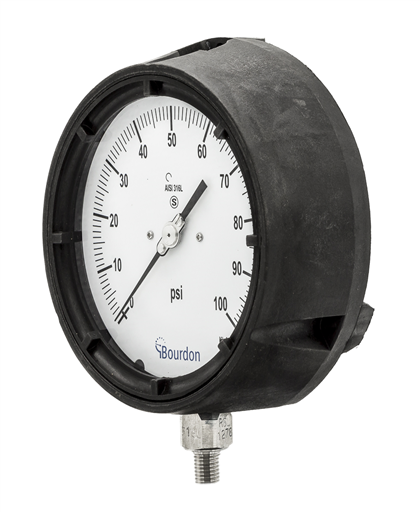

AH Polypropylene Case Pressure Gauge 4 Bourdon type

Application

  • Suitable for high pressure gas
  • Corrosive / hazardous environment that will not obstruct the pressure system.

Availability: In stock
Request A Quote

Specification

AH Polypropylene Case Pressure Gauge 4 Bourdon type

Standard Version: 4-1/2"

Accuracy

±0.5% F. S. (As per ASME B40.100)

Ambient temperature:-

- 20°C to + 65°C

Over Pressure Limit:-

75% of Scale Value

= 100 bar: 125% of Max. Scale Value

> 100 to = 600 bar: 115% of Max. Scale Value

> 600 to = 1600 bar: 110% of Max. Scale Value

Operating Pressure Range:-

Max 150°C

Case:-

Fibre Glass Reinforced Polypropylene

Bourdon:-

AISI 316L SS or Brass

Socket:-

AISI 316L SS or Brass

Movement:-

AISI 304 SS

Joints:-

Tig Argon Arc Welding

Protection:-

IP 65

Dial:-

Aluminum, black graduation on white background

Pointer:-

Aluminum, black Colored, Micrometer Zero Adjustable

Window:-

Plexiglas

Blow off Disc:-

Fibre Glass Reinforced Polypropylene

Gasket:-

Compatible with glycerin or silicone
