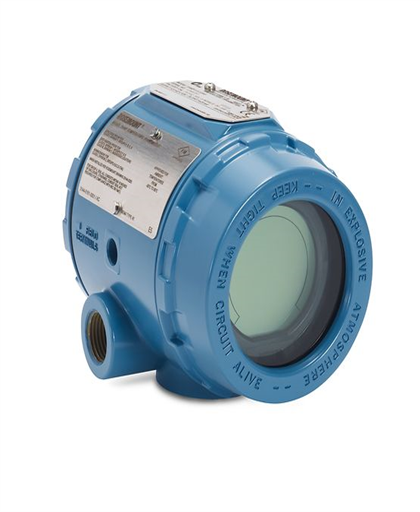

Rosemount 3144PD1A1NAM5 Temperature Transmitters

High level of stability, reliability, and precision can be achieved for temperature measurements, with the help of the Rosemount 3144P Temperature Transmitter. This robust and durable temperature transmitter comes with a dual-compartment housing, which ensures consistency and reliability of advanced diagnostics. This helps you in getting accurate measurements. This transmitter is mainly used when utmost control and mission critical precision is required in the measurement.

Availability: In stock

Input

2, 3, or 4-wire RTD

Thermocouple Types: B, E, J, K, N, R, S, T

Millivolt Input: 2, 3, or 4 Wire Ohm Input

Single or Dual Sensor Input

Output

4-20 mA with digital signal based on HART Protocol

Accuracy

±0.08°C (±0.14°F)

Range

Input Ranges – RTD: -328 to 1562 degrees F, varies according to RTD Type

Thermocouple: -292 to 2502, varies according to Thermocouple Type

Power

Millivolt: -10 to 100 mV

Ohm: 0 to 2000 Ohms

Display/Interface

Large LCD display with percent range graph and buttons/switches

Features

Industry-leading accuracy and reliability for best performance in critical control and safety applications

Transmitter-sensor matching improves measurement accuracy up to 75%

5-year long-term stability extends calibration intervals to reduce trips to the field

Dual compartment housing provides superior protection in harsh environments

Hot Backup™ capability and sensor drift alert utilizing dual sensors ensure measurement integrity

Thermocouple degradation diagnostic monitors thermocouple health to detect degradation before failure

Minimum and maximum temperature tracking allows monitoring of temperature extremes for easy troubleshooting

Transmitter supports multiple protocols for integration in many host environments across many industries

Device dashboards provide easy interface for simplified device configuration and diagnostic troubleshooting
