Model No: 3051S2TG4A2E11A1AM5

Factory New

Reconditioned

New Surplus

Free Expert Consultation

Quick Turnaround Shipment

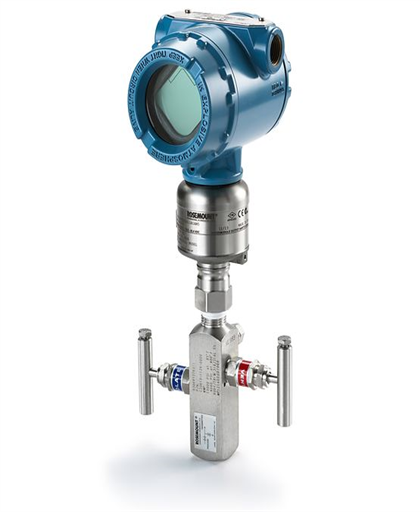

Rosemount 3051S2TG4A2E11A1AM5 Pressure Transmitters

Availability: In stock

Specification
Description
Build Model # Click here to Build Model

Specification

Description

Add to RFQ Cart

Rosemount 3051S2TG4A2E11A1AM5 Pressure Transmitters

Configure 3051S2TG4A2E11A1AM5 Product

Build Model

Your Model Number:

Required*
Optional

Required

Your Model Number:

Attribute

Value

Select value to configure

Transmitter type * Performance Class * Connection Type * Measurement Type * Pressure Range | TG | TA * Isolating Diaphragm * Process Connection * Transmitter Output * Housing Style / Material / Conduit Entry Size *

3051S

Scalable pressure transmitter

Ultra: 0.025 percent span accuracy - 200:1 rangedown - 15-yr stability - 15-yr limited warranty

Classic: 0.055 percent span accuracy - 100:1 rangedown - 15-yr stability

In-Line

Gauge

Absolute

-14.7 to 30 psi (-1.0 to 2.1 bar) 0 to 30 psia (2.1 bar)

-14.7 to 150 psi (-1.0 to 10.3 bar) 0 to 150 psia (10.3 bar)

-14.7 to 800 psi (-1.0 to 55 bar) 0 to 800 psia (55 bar)

-14.7 to 4000 psi (-1.0 to 276 bar) 0 to 4000 psia (276 bar)

-14.7 to 10000 psi (-1.0 to 689 bar) 0 to 10000 psia (689 bar)

316L SST

Alloy C-276

A11

Assemble to Rosemount 306 Integral Manifold

B11

Assemble to Rosemount 1199 Seal

E11

1/2-14 NPT female

G11

G1/2 A DIN 16288 male (Range 1-4 only)

J12

Assemble to Rosemount 0307/0309 with Traditional Flange | SST | 316 SST

F11

Non-threaded instrument-flange (I-flange)(Range 1-4 only)

H11

Coned and threaded, compatible with autoclave type F-250-C (Range 5A only)

4-20 mA with Digital Signal based on HART protocol

FOUNDATION fieldbus digital signal

Wireless (Requires wireless options and wireless PlantWeb housing)

None (Supermodule only, no housing included)

PlantWeb Housing | Aluminum | 1/2-14 NPT

PlantWeb Housing | Aluminum | M20 x 1.5

PlantWeb Housing | SST | 1/2-14 NPT

PlantWeb Housing | SST | M20 x 1.5

Junction Box Housing | Aluminum | 1/2-14 NPT

Junction Box Housing | Aluminum | M20 x 1.5

Junction Box Housing | SST | 1/2-14 NPT

Junction Box housing with output for remote interface | Aluminum | 1/2-14 NPT

Junction Box housing with output for remote interface | Aluminum | M20 x 1.5

Junction Box housing with output for remote interface | SST | 1/2-14 NPT

Wireless PlantWeb Housing | Aluminum | 1/2-14 NPT

Wireless PlantWeb Housing | SST | 1/2-14 NPT

Quick Connect (A size Mini, 4-pin male termination) | SST |

PlantWeb Housing | Aluminum | G 1/2

PlantWeb Housing | SST | G 1/2

Junction Box Housing | Aluminum | G 1/2

Junction Box housing with output for remote interface | Aluminum | G 1/2

3051S

Scalable pressure transmitter

Ultra: 0.025 percent span accuracy - 200:1 rangedown - 15-yr stability - 15-yr limited warranty

Classic: 0.055 percent span accuracy - 100:1 rangedown - 15-yr stability

In-Line

Gauge

Absolute

-14.7 to 30 psi (-1.0 to 2.1 bar) 0 to 30 psia (2.1 bar)

-14.7 to 150 psi (-1.0 to 10.3 bar) 0 to 150 psia (10.3 bar)

-14.7 to 800 psi (-1.0 to 55 bar) 0 to 800 psia (55 bar)

-14.7 to 4000 psi (-1.0 to 276 bar) 0 to 4000 psia (276 bar)

-14.7 to 10000 psi (-1.0 to 689 bar) 0 to 10000 psia (689 bar)

316L SST

Alloy C-276

A11

Assemble to Rosemount 306 Integral Manifold

B11

Assemble to Rosemount 1199 Seal

E11

1/2-14 NPT female

G11

G1/2 A DIN 16288 male (Range 1-4 only)

J12

Assemble to Rosemount 0307/0309 with Traditional Flange | SST | 316 SST

F11

Non-threaded instrument-flange (I-flange)(Range 1-4 only)

H11

Coned and threaded, compatible with autoclave type F-250-C (Range 5A only)

4-20 mA with Digital Signal based on HART protocol

FOUNDATION fieldbus digital signal

Wireless (Requires wireless options and wireless PlantWeb housing)

None (Supermodule only, no housing included)

PlantWeb Housing | Aluminum | 1/2-14 NPT

PlantWeb Housing | Aluminum | M20 x 1.5

PlantWeb Housing | SST | 1/2-14 NPT

PlantWeb Housing | SST | M20 x 1.5

Junction Box Housing | Aluminum | 1/2-14 NPT

Junction Box Housing | Aluminum | M20 x 1.5

Junction Box Housing | SST | 1/2-14 NPT

Junction Box housing with output for remote interface | Aluminum | 1/2-14 NPT

Junction Box housing with output for remote interface | Aluminum | M20 x 1.5

Junction Box housing with output for remote interface | SST | 1/2-14 NPT

Wireless PlantWeb Housing | Aluminum | 1/2-14 NPT

Wireless PlantWeb Housing | SST | 1/2-14 NPT

Quick Connect (A size Mini, 4-pin male termination) | SST |

PlantWeb Housing | Aluminum | G 1/2

PlantWeb Housing | SST | G 1/2

Junction Box Housing | Aluminum | G 1/2

Junction Box housing with output for remote interface | Aluminum | G 1/2

Your Model Number: 3051S

Optional

Your Model Number:

Extended product warranty PlantWeb Control Functionality Wireless Update Rate, Operating Frequency and Protocol Omnidirectional Wireless Antenna and SmartPower Mounting Bracket Software Configuration Alarm Limit Custody Transfer Ground Screw Conduit Plug Product certifications Shipboard approvals Sensor Fill Fluid Display Type Pressure Testing Special Cleaning Calibration Certification Material Traceability Certification Quality Certification for Safety Transient protection Surface Finish Certification Toolkit Performance Reports Conduit Electrical Connector NACE Certificate

None

WR3

3-year limited warranty

WR5

5-year limited warranty

None

D01

FOUNDATION fieldbus Diagnostics Suite

DA2

Advanced HART Diagnostics Suite

None

WA3

User Configurable Update Rate, 2.4 GHz DSSS, IEC 62591 (WirelessHART)

None

WK1

WK1 External Antenna, Adapter for Black Power Module (I.S. Power Module sold separately)

WM1

WM1 Extended Range, External Antenna, Adapter for Black Power Module (I.S. Power Module sold separately)

WJ1

Remote Antenna, Adapter for Black Power Module (I.S. Power Module sold separately)

WN1

WN1 High-Gain, Remote Antenna, Adapter for Black Power Module (I.S. Power Module sold separately)

None

Bracket, all SST, 2-in. pipe and panel

None

Custom software configuration (Requires Configuration Data Sheet)

None

NAMUR Alarm and Saturation Levels, High Alarm

NAMUR alarm and saturation levels, low alarm

Custom alarm and saturation signal levels, high alarm (Requires C1 and Configuration Data Sheet)

Custom alarm and saturation signal levels, low alarm (Requires C1 and Configuration Data Sheet)

Low alarm (standard Rosemount alarm and saturation levels)

None

Measurement Canada Accuracy Approval

None

External ground screw assembly

None

316 SST Conduit Plug

None

ATEX Flameproof

INMETRO Flameproof

China Flameproof

TIIS Flameproof

FM Explosion-proof, Dust Ignition-proof

CSA Explosion-proof, Dust Ignition-proof, Division 2

IECEx Flameproof, Dust Ignition-proof

ATEX Intrinsic safety

INMETRO Intrinsic safety

China Intrinsic Safety

TIIS Intrinsic Safety

FM Intrinsically Safe, Division 2

CSA Intrinsically Safe

IECEx Intrinsic safety

ATEX FISCO Intrinsic Safety (FOUNDATION fieldbus protocol only)

INMETRO FISCO Intrinsic safety

FM FISCO Intrinsically Safe (FOUNDATION fieldbus protocol only)

CSA FISCO Intrinsically Safe (FOUNDATION fieldbus protocol only)

IECEx FISCO Intrinsic Safety (FOUNDATION fieldbus protocol only)

ATEX Flameproof, Intrinsic Safety, Type n, Dust

INMETRO Flameproof, Intrinsic Safety

FM Explosion-proof, Dust Ignition-proof, Intrinsically Safe, Division 2

CSA Explosion-proof, Dust Ignition-proof, Intrinsically Safe, Division 2

IECEx Flameproof, Dust Ignition-proof, Intrinsic Safety, Type n

ATEX and CSA Flameproof, Intrinsically Safe, Division 2

FM and CSA Explosion-proof, Dust Ignition-proof, Intrinsically Safe, Division 2

FM and ATEX Explosion-proof, Intrinsically Safe, Division 2

FM, CSA, and ATEX Explosion-proof, Intrinsically Safe

FM, CSA, ATEX and IECEx FISCO Intrinsic Safety

ATEX Type n

China Type n

IECEx Type n

ATEX Dust

None

SBS

American Bureau of Shipping (ABS) Type Approval

None

Inert sensor fill fluid

None

PlantWeb LCD Display

Remote mount LCD display and interface, PlantWeb housing, no cable, SST bracket

Remote mount LCD display and interface, PlantWeb housing, 50 ft. (15 m) cable, SST bracket

Remote mount LCD display and interface, PlantWeb housing, 100 ft. (31 m) cable, SST bracket

Hydrostatic testing with certificate

None

Cleaning for special services

Cleaning for less than 1PPM Chlorine/Fluorine

None

Calibration certificate

Calibration certificate and tamper evident seal

None

Material traceability certification per EN 10204 3.1B

None

Prior-use certificate of FMEDA data

Safety certified to IEC 61508 with certificate of FMEDA data

Transient terminal block

None

Q16

Surface Finish Certification for Sanitary Remote Seals

None

Remote Seal System Performance Calculation Report

None

M12, 4-pin, Male Connector (eurofast)

A size Mini, 4-pin, Male Connector (minifast)

None

Q15

Certificate of Compliance to NACE MR0175/ISO 15156 for wetted materials

Q25

Certificate of Compliance to NACE MR0103 for wetted materials

None

WR3

3-year limited warranty

WR5

5-year limited warranty

None

D01

FOUNDATION fieldbus Diagnostics Suite

DA2

Advanced HART Diagnostics Suite

None

WA3

User Configurable Update Rate, 2.4 GHz DSSS, IEC 62591 (WirelessHART)

None

WK1

WK1 External Antenna, Adapter for Black Power Module (I.S. Power Module sold separately)

WM1

WM1 Extended Range, External Antenna, Adapter for Black Power Module (I.S. Power Module sold separately)

WJ1

Remote Antenna, Adapter for Black Power Module (I.S. Power Module sold separately)

WN1

WN1 High-Gain, Remote Antenna, Adapter for Black Power Module (I.S. Power Module sold separately)

None

Bracket, all SST, 2-in. pipe and panel

None

Custom software configuration (Requires Configuration Data Sheet)

None

NAMUR Alarm and Saturation Levels, High Alarm

NAMUR alarm and saturation levels, low alarm

Custom alarm and saturation signal levels, high alarm (Requires C1 and Configuration Data Sheet)

Custom alarm and saturation signal levels, low alarm (Requires C1 and Configuration Data Sheet)

Low alarm (standard Rosemount alarm and saturation levels)

None

Measurement Canada Accuracy Approval

None

External ground screw assembly

None

316 SST Conduit Plug

None

ATEX Flameproof

INMETRO Flameproof

China Flameproof

TIIS Flameproof

FM Explosion-proof, Dust Ignition-proof

CSA Explosion-proof, Dust Ignition-proof, Division 2

IECEx Flameproof, Dust Ignition-proof

ATEX Intrinsic safety

INMETRO Intrinsic safety

China Intrinsic Safety

TIIS Intrinsic Safety

FM Intrinsically Safe, Division 2

CSA Intrinsically Safe

IECEx Intrinsic safety

ATEX FISCO Intrinsic Safety (FOUNDATION fieldbus protocol only)

INMETRO FISCO Intrinsic safety

FM FISCO Intrinsically Safe (FOUNDATION fieldbus protocol only)

CSA FISCO Intrinsically Safe (FOUNDATION fieldbus protocol only)

IECEx FISCO Intrinsic Safety (FOUNDATION fieldbus protocol only)

ATEX Flameproof, Intrinsic Safety, Type n, Dust

INMETRO Flameproof, Intrinsic Safety

FM Explosion-proof, Dust Ignition-proof, Intrinsically Safe, Division 2

CSA Explosion-proof, Dust Ignition-proof, Intrinsically Safe, Division 2

IECEx Flameproof, Dust Ignition-proof, Intrinsic Safety, Type n

ATEX and CSA Flameproof, Intrinsically Safe, Division 2

FM and CSA Explosion-proof, Dust Ignition-proof, Intrinsically Safe, Division 2

FM and ATEX Explosion-proof, Intrinsically Safe, Division 2

FM, CSA, and ATEX Explosion-proof, Intrinsically Safe

FM, CSA, ATEX and IECEx FISCO Intrinsic Safety

ATEX Type n

China Type n

IECEx Type n

ATEX Dust

None

SBS

American Bureau of Shipping (ABS) Type Approval

None

Inert sensor fill fluid

None

PlantWeb LCD Display

Remote mount LCD display and interface, PlantWeb housing, no cable, SST bracket

Remote mount LCD display and interface, PlantWeb housing, 50 ft. (15 m) cable, SST bracket

Remote mount LCD display and interface, PlantWeb housing, 100 ft. (31 m) cable, SST bracket

Hydrostatic testing with certificate

None

Cleaning for special services

Cleaning for less than 1PPM Chlorine/Fluorine

None

Calibration certificate

Calibration certificate and tamper evident seal

None

Material traceability certification per EN 10204 3.1B

None

Prior-use certificate of FMEDA data

Safety certified to IEC 61508 with certificate of FMEDA data

Transient terminal block

None

Q16

Surface Finish Certification for Sanitary Remote Seals

None

Remote Seal System Performance Calculation Report

None

M12, 4-pin, Male Connector (eurofast)

A size Mini, 4-pin, Male Connector (minifast)

None

Q15

Certificate of Compliance to NACE MR0175/ISO 15156 for wetted materials

Q25

Certificate of Compliance to NACE MR0103 for wetted materials

Your Model Number: 3051S

Note : Optional filter will be appear after selecting all required filters.

Your Model Number: 3051S
