Model No: 1151LT5SAOF22DN

Factory New

Reconditioned

New Surplus

Free Expert Consultation

Quick Turnaround Shipment

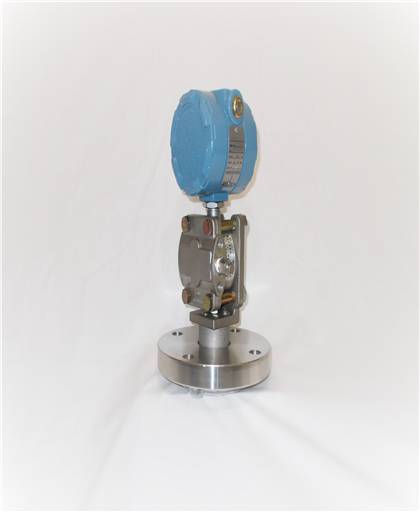

Rosemount 1151LT5SAOF22DN Level Transmitters

Availability: In stock

Specification
Description
Build Model # Click here to Build Model

Specification

Output

4-20 mA dc, 10-50

Range

0-25 to 0-2770″ H2O

Accuracy

SMART: +/-0.1% of calibrated span
Analog: +/-0.2 to +/-0.25% of calibrated span

Materials

Isolating Diaphragms: 316L SST, Hastelloy C, Monel, Tantalum Process Flanges
Adapters: Cadmium and Nickel plated CS, 316 SST, Hastelloy C, Tantalum

Installed Stability

± 0.01% of URL for 2 years

Rangeability

50:1

Features

Compatible with any two-wire system
Ranges from 25inH2O to 100 PSI
Available with a variety of fill fluids
External span and zero adjustments
Many diaphragm and flange options to fit all process and installation needs

Description

For last numerous years, 1151 has given the process control industry with top notch service and dependability in even the unpleasant of conditions. 1151 offers a variety of configurations for differential, gage, absolute and liquid- level measurements including integrated solutions for pressure, level, and flow. High pressure models permit static line weights up to 4500 psi (310 bar). Different wetted materials, and alternative fill liquids guarantee prepare similarity. Smart, simple and low-power electronics are accessible to meet particular application requirements.

Add to RFQ Cart

Rosemount 1151LT5SAOF22DN Level Transmitters

Configure 1151LT5SAOF22DN Product

Build Model

Your Model Number:

Required*
Optional

Required

Your Model Number:

Attribute

Value

Select value to configure

Transmitter type * Range * Output * Size Material Extensions Length * MOUNTING FLANGE | Rating | Size | Material | Applicable with these High Pressure Side Diaphragm Sizes * SENSOR MODULE AND LOW-SIDE MATERIALS OF CONSTRUCTION * Process Fill - High Pressure Side | Temperature Limits *

1151LT

Flange-Mounted Liquid Level Transmitter

150 inH2O (0-635 to 0-3,810 mmH2O)

0 inH2O (0-3,175 to 0-19,050 mmH2O)

2,770 inH2O (0-11.96 to 0-70.36 mmH2O)

4-20 mA with Digital Signal based on HART Protocol (Smart)

20 mA, Linear with Input

10-50 mA, Linear with Input

2 in./DN 50 | 316L SST | Flush Mount Only

2 in./DN 5 | Alloy C-27 | Flush Mount Only

2 in./DN 50 | Tantalum | Flush Mount Only

3 in./DN 80 | 316L SS | Flush Mount

3 in./DN 80 | 316L SS | 2 in./50 mm

3 in./DN 80 | 316L SS | 4 in./100 mm

3 in./DN 80 | 316L SS | 6 in./150 mm

4 in./DN 100 | 316L SS | Flush Mount

4 in./DN 100 | 316L SS | 2 in./50 mm

4 in./DN 100 | 316L SS | 4 in./100 mm

4 in./DN 100 | 316L SS | 6 in./150 mm

3 in./DN 80 | Alloy C-276 | Flush Mount

3 in./DN 80 | Alloy C-276 | 2 in./50 mm

3 in./DN 80 | Alloy C-276 | 4 in./100 mm

3 in./DN 80 | Alloy C-276 | 6 in./150 mm

4 in./DN 100 | Alloy C-276 | Flush Mount

4 in./DN 100 | Alloy C-276 | 2 in./50 mm

4 in./DN 100 | Alloy C-276 | 4 in./100 mm

4 in./DN 100 | Alloy C-276 | 6 in./150 mm

3 in./DN 80 | Tantalum | Flush Mount Only

4 in./DN 100 | Tantalum | Flush Mount Only

2-in. | Class 150 | CS | 2 in./DN 50

3-in. | Class 150 | CS | 3 in./DN 80

4-in. | Class 150 | CS | 4 in./DN 100

2-in. | Class 300 | CS | 2 in./DN 50

3-in. | Class 300 | CS | 3 in./DN 80

4-in. | Class 300 | CS | 4 in./DN 100

2-in. | Class 600 | CS | 2 in./DN 50

3-in. | Class 600 | CS | 3 in./DN 80

2-in. | Class 150 | SST | 2 in./DN 50

3-in. | Class 150 | SST | 3 in./DN 80

4-in. | Class 150 | SST | 4 in./DN 100

2-in. | Class 300 | SST | 2 in./DN 50

3-in. | Class 300 | SST | 3 in./DN 80

4-in. | Class 300 | SST | 4 in./DN 100

2-in. | Class 600 | SST | 2 in./DN 50

3-in. | Class 600 | SST | 3 in./DN 80

DN 50 | PN 10-40 | CS | 2 in./DN 50

DN 80 | PN 40 | CS | 3 in./DN 80

DN 100 | PN 40 | CS | 4 in./DN 100

DN 100 | PN 10/16 | CS | 4 in./DN 100

DN 50 | PN 10-40 | STT | 2 in./DN 50

DN 80 | PN 40 | STT | 3 in./DN 80

DN 100 | PN 40 | STT | 4 in./DN 100

DN 80 | PN 10/16 | STT | 4 in./DN 100

Nickel-plated | 316 SST | 316 SST | Silicone

Nickel-plated | 316 SST | Tantalum | Silicone

316 SST | 316 SST | 316L SST | Silicone

316 SST | 316 SST | Alloy C-276 | Silicone

316 SST | 316 SST | Tantalum | Silicone

Cast C-276 | Alloy C-276 | Alloy C-276 | Silicone

Cast C-276 | Alloy C-276 | Tantalum | Silicone

Nickel-plated CS | 316 SST | Tantalum | Inert

316 SST | 316 SST | 316L SST | Inert

316 SST | 316 SST | Alloy C-276 | Inert

316 SST | 316 SST | Tantalum | Inert

Cast C-276 | Alloy C-276 | Alloy C-276 | Inert

Cast C-276 | Alloy C-276 | Tantalum | Inert

Syltherm XLT | -100 to 300 F (-73 to 135 C)

D. C. Silicone 704 | 60 to 400 F (15 to 205 C)

D. C. Silicone 200 | -40 to 400 F (-40 to 205 C)

Inert | -50 to 350 F (-45 to 177 C)

Glycerin and Water | 0 to 200 F (-17 to 93 C)

Neobee M-20 | 0 to 400F (-17 to 205 C)

Propylene Glycol and Water | 0 to 200 F (-17 to 93 C)

1151LT

Flange-Mounted Liquid Level Transmitter

150 inH2O (0-635 to 0-3,810 mmH2O)

0 inH2O (0-3,175 to 0-19,050 mmH2O)

2,770 inH2O (0-11.96 to 0-70.36 mmH2O)

4-20 mA with Digital Signal based on HART Protocol (Smart)

20 mA, Linear with Input

10-50 mA, Linear with Input

2 in./DN 50 | 316L SST | Flush Mount Only

2 in./DN 5 | Alloy C-27 | Flush Mount Only

2 in./DN 50 | Tantalum | Flush Mount Only

3 in./DN 80 | 316L SS | Flush Mount

3 in./DN 80 | 316L SS | 2 in./50 mm

3 in./DN 80 | 316L SS | 4 in./100 mm

3 in./DN 80 | 316L SS | 6 in./150 mm

4 in./DN 100 | 316L SS | Flush Mount

4 in./DN 100 | 316L SS | 2 in./50 mm

4 in./DN 100 | 316L SS | 4 in./100 mm

4 in./DN 100 | 316L SS | 6 in./150 mm

3 in./DN 80 | Alloy C-276 | Flush Mount

3 in./DN 80 | Alloy C-276 | 2 in./50 mm

3 in./DN 80 | Alloy C-276 | 4 in./100 mm

3 in./DN 80 | Alloy C-276 | 6 in./150 mm

4 in./DN 100 | Alloy C-276 | Flush Mount

4 in./DN 100 | Alloy C-276 | 2 in./50 mm

4 in./DN 100 | Alloy C-276 | 4 in./100 mm

4 in./DN 100 | Alloy C-276 | 6 in./150 mm

3 in./DN 80 | Tantalum | Flush Mount Only

4 in./DN 100 | Tantalum | Flush Mount Only

2-in. | Class 150 | CS | 2 in./DN 50

3-in. | Class 150 | CS | 3 in./DN 80

4-in. | Class 150 | CS | 4 in./DN 100

2-in. | Class 300 | CS | 2 in./DN 50

3-in. | Class 300 | CS | 3 in./DN 80

4-in. | Class 300 | CS | 4 in./DN 100

2-in. | Class 600 | CS | 2 in./DN 50

3-in. | Class 600 | CS | 3 in./DN 80

2-in. | Class 150 | SST | 2 in./DN 50

3-in. | Class 150 | SST | 3 in./DN 80

4-in. | Class 150 | SST | 4 in./DN 100

2-in. | Class 300 | SST | 2 in./DN 50

3-in. | Class 300 | SST | 3 in./DN 80

4-in. | Class 300 | SST | 4 in./DN 100

2-in. | Class 600 | SST | 2 in./DN 50

3-in. | Class 600 | SST | 3 in./DN 80

DN 50 | PN 10-40 | CS | 2 in./DN 50

DN 80 | PN 40 | CS | 3 in./DN 80

DN 100 | PN 40 | CS | 4 in./DN 100

DN 100 | PN 10/16 | CS | 4 in./DN 100

DN 50 | PN 10-40 | STT | 2 in./DN 50

DN 80 | PN 40 | STT | 3 in./DN 80

DN 100 | PN 40 | STT | 4 in./DN 100

DN 80 | PN 10/16 | STT | 4 in./DN 100

Nickel-plated | 316 SST | 316 SST | Silicone

Nickel-plated | 316 SST | Tantalum | Silicone

316 SST | 316 SST | 316L SST | Silicone

316 SST | 316 SST | Alloy C-276 | Silicone

316 SST | 316 SST | Tantalum | Silicone

Cast C-276 | Alloy C-276 | Alloy C-276 | Silicone

Cast C-276 | Alloy C-276 | Tantalum | Silicone

Nickel-plated CS | 316 SST | Tantalum | Inert

316 SST | 316 SST | 316L SST | Inert

316 SST | 316 SST | Alloy C-276 | Inert

316 SST | 316 SST | Tantalum | Inert

Cast C-276 | Alloy C-276 | Alloy C-276 | Inert

Cast C-276 | Alloy C-276 | Tantalum | Inert

Syltherm XLT | -100 to 300 F (-73 to 135 C)

D. C. Silicone 704 | 60 to 400 F (15 to 205 C)

D. C. Silicone 200 | -40 to 400 F (-40 to 205 C)

Inert | -50 to 350 F (-45 to 177 C)

Glycerin and Water | 0 to 200 F (-17 to 93 C)

Neobee M-20 | 0 to 400F (-17 to 205 C)

Propylene Glycol and Water | 0 to 200 F (-17 to 93 C)

Your Model Number: 1151LT

Optional

Your Model Number:

Measurement Type Options LCD Display HARZARDOUS LOCATIONS CERTIFICATIONS OTHER OPTIONS Flushing Connection Ring Material (Lower Housing) | Flushing Connections | Size

LEVEL

None

Assemble to one Rosemount 1199 diaphragm seal

None

Analog Scale, Linear Meter 0-100

LCD Display, 0-100

LCD Display, Linear, Special Configuration

None

TEX Flameproof

ATEX Intrinsic Safety

ATEX Type n

FM Intrinsically Safe, Division 2

FM Explosion-Proof, Dust Ignition-proof, Intrinsically Safe, Division 2

CSA Explosion-Proof, Intrinsically Safe

CSA Intrinsically Safe

CSA Explosion-Proof, Dust Ignition-proof, Intrinsically Safe, Division 2

SA Explosion-Proof, Dust Ignition-proof, Division 2

SAA Flameproof, Dust Ignition-proof

SAA Intrinsic Safety

SAA Type n

Measurement Canada Accuracy Approval

None

Copper O-ring for Vacuum Service (Nonwetted)

M20 Conduit Threads

Calibration Data Sheet

Material Traceability per EN 10204 3.1B

Q16

Surface Finish Certification for Sanitary Remote Seals (all options)

Remote Seal System Performance Calculation Report

Reverse Output

4-20 mV Test Signal

20-100 mV Test Signal

None

SST | 1 | 1/4" - 18 NPT

SST | 2 | 1/4" - 18 NPT

Cast C-276 | 1 | 1/4" - 18 NPT

Cast C-276 | 2 | 1/4" - 18 NPT

SST | 1 | 1/2" - 14 NPT

SST | 2 | 1/2" - 14 NPT

Cast C-276 | 1 | 1/4" - 14 NPT

Cast C-276 | 2 | 1/4" - 14 NPT

LEVEL

None

Assemble to one Rosemount 1199 diaphragm seal

None

Analog Scale, Linear Meter 0-100

LCD Display, 0-100

LCD Display, Linear, Special Configuration

None

TEX Flameproof

ATEX Intrinsic Safety

ATEX Type n

FM Intrinsically Safe, Division 2

FM Explosion-Proof, Dust Ignition-proof, Intrinsically Safe, Division 2

CSA Explosion-Proof, Intrinsically Safe

CSA Intrinsically Safe

CSA Explosion-Proof, Dust Ignition-proof, Intrinsically Safe, Division 2

SA Explosion-Proof, Dust Ignition-proof, Division 2

SAA Flameproof, Dust Ignition-proof

SAA Intrinsic Safety

SAA Type n

Measurement Canada Accuracy Approval

None

Copper O-ring for Vacuum Service (Nonwetted)

M20 Conduit Threads

Calibration Data Sheet

Material Traceability per EN 10204 3.1B

Q16

Surface Finish Certification for Sanitary Remote Seals (all options)

Remote Seal System Performance Calculation Report

Reverse Output

4-20 mV Test Signal

20-100 mV Test Signal

None

SST | 1 | 1/4" - 18 NPT

SST | 2 | 1/4" - 18 NPT

Cast C-276 | 1 | 1/4" - 18 NPT

Cast C-276 | 2 | 1/4" - 18 NPT

SST | 1 | 1/2" - 14 NPT

SST | 2 | 1/2" - 14 NPT

Cast C-276 | 1 | 1/4" - 14 NPT

Cast C-276 | 2 | 1/4" - 14 NPT

Your Model Number: 1151LT
