Rosemount 1151DP5S22 Pressure Transmitters

Availability: In stock
  • 4-20 mA dc; 10-50 mA dc
  • Smart 4-20 mA dc, 4-20 mA dc square root of input with adjustable damping (Flow)
  • 0-5" H2O to 0-1000 psid
  • SMART: +/-0.1% of calibrated span
  • Analog: +/-0.2 to +/-0.25% of calibrated span
  • Isolating Diaphragms: 316L SST, Hastelloy C, Monel, Tantalum Process Flanges
  • Adapters: Cadmium and Nickel plated CS, 316 SST, Hastelloy C, Tantalum
  • Installed Stability: ± 0.01% of URL for 2 years
  • Protocols available include 4-20mA HART, Analog, and Low Power
  • Differential, gauge and absolute pressure measurements
  • Pressure ranges up to 6000 psi

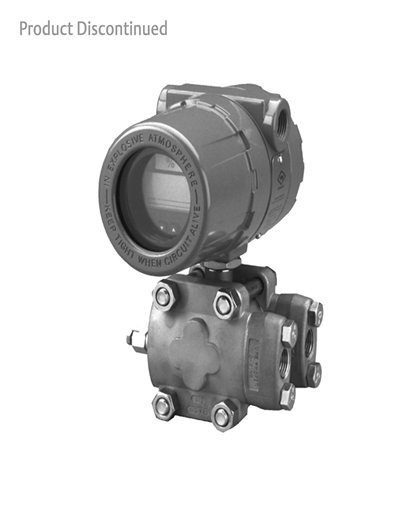

The Rosemount 1151 pressure transmitter is known to offer long-term and reliable performance. This transmitter offers various configurations for gage, differential, and absolute pressure measurements. Also, the transmitter can be used as integrated solution for various flow and liquid-level measurements. The high pressure models can be used for measuring static line pressure up to 4500 psi (310 bar). Various alternative fill fluids and wetted materials used help ensure compatibility. Low-power, analog, and smart electronics are available to meet diverse application requirements. With over 8 million installations, the Rosemount 1151 is one of the most popular transmitters in use today.
