Guided Wave Radar Level Sensor

Guided wave radar level sensors are precision measurement instruments that determine the levels of liquids and solids by sending electromagnetic pulses along a probe inserted into tanks or vessels. These sensors work by analysing the time it takes for signals to reflect from the material surface, providing accurate readings regardless of process conditions. They deliver consistent performance even in challenging environments with foam, vapor, temperature fluctuations, or pressure variations. At The Transmitter Shop, we offer various types of reliable and high-quality guided wave radar level sensors that are engineered to withstand harsh industrial conditions while providing precise measurements that you can depend on for critical operations.

Filter By

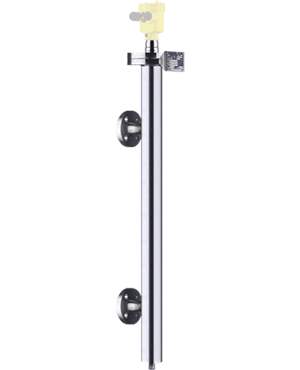

Working Principle of Guided Wave Radar Level Sensor

Guided wave radar level sensors operate on the principle of time domain reflectometry, transmitting high-frequency electromagnetic pulses along a metallic probe that extends into the process medium. The probe acts as a waveguide, directing the electromagnetic energy toward the material surface while maintaining signal integrity throughout its path. When the propagating pulse encounters the dielectric discontinuity at the liquid or solid interface, a reflected echo returns along the same probe to the sensor electronics.

The measurement system analyses the time interval between pulse transmission and echo reception to determine the distance from the reference point to the material surface. This guided propagation method ensures that the electromagnetic signal follows a defined path, making the measurement independent of tank configuration, atmospheric conditions, or process disturbances. The technology proves particularly effective with materials having low dielectric constants, turbulent surfaces, or conditions involving foam, dust, or vapor that typically challenge free-space radar or ultrasonic measurement techniques.

Key Features of Guided Wave Radar Level Sensors

Our guided wave radar level sensors stand out in the market because they combine advanced technology with practical functionality. Here's what makes them different:

  • High Accuracy and Repeatability: Our sensors deliver exceptional measurement precision of ±2 mm, ensuring consistent data for process control and inventory management applications where accuracy matters most for operational decisions.
  • Versatile Probe Options: We provide single rod, twin rod, and coaxial probe configurations to match your specific application, whether measuring liquids, slurries, or granular solids.
  • Wide Operating Range: These instruments function reliably across extreme temperature and pressure conditions, adapting to your process requirements without compromising performance in demanding industrial environments.
  • Multiple Output Options: Our sensors feature HART, Profibus PA, and analog outputs, allowing seamless integration with existing control systems and enabling remote monitoring capabilities for operational efficiency.
  • Minimal Maintenance Requirements: With no moving parts and solid-state electronics, these sensors reduce downtime and maintenance costs while extending service life in demanding industrial environments.
  • Hazardous Area Approvals: Our instruments carry comprehensive safety certifications for hazardous area installations, meeting strict regulatory standards for oil, gas, and chemical processing facilities worldwide.
  • Advanced Diagnostics: Built-in self-monitoring features alert operators to potential issues before they affect measurements, helping prevent costly process disruptions and ensuring continuous operation reliability.
  • Easy Configuration: Intuitive programming interfaces and pre-configured application templates simplify setup, reducing commissioning time and eliminating the need for specialized technical expertise during installation.

Guided Wave Radar vs Non-Contact Radar: A Comparison

Choosing between guided wave and non-contact radar depends on your specific application requirements. Both technologies have their place, but understanding their differences helps you make an informed decision.

Specification

Guided Wave Radar

Non-Contact Radar

Installation

Requires probe insertion into the tank, enabling direct contact with the material for high accuracy.

Mounted externally on the tank top without process intrusion; easier installation but requires clear signal path.

Accuracy

High precision due to guided signal path, largely unaffected by internal tank conditions.

Good accuracy but can be affected by foam, dust, condensation, or obstructions.

Application Range

Ideal for low dielectric materials, interface measurement, and turbulent conditions.

Best for high dielectric liquids in clean environments with unobstructed beam paths.

Maintenance

May require occasional probe cleaning in sticky or coating applications.

Low maintenance; ensure antenna remains clean for reliable performance.

Cost Considerations

Typically lower upfront cost with strong long-term reliability.

Higher initial cost, suitable for applications where non-intrusive measurement is critical.



Industrial Applications of Guided Wave Radar Level Sensors

These versatile instruments serve diverse industries where reliable level measurement is critical. Our sensors adapt to unique challenges across the following sectors:

  • Oil and Gas Operations:Monitor crude oil, refined products, and condensate levels in separator vessels and storage tanks where accurate custody transfer measurements directly impact revenue.
  • Chemical Processing Plants:Measure corrosive chemicals, solvents, and reactive materials safely. Our probes resist chemical attack while maintaining measurement integrity in aggressive environments.
  • Water and Wastewater Treatment:Track liquid levels in clarifiers, digesters, and storage basins where foam, turbulence, and varying densities challenge conventional measurement technologies significantly.
  • Food and Beverage Manufacturing:Monitor ingredients, finished products, and cleaning solutions with sanitary probe designs that meet regulatory requirements while preventing contamination risks in production.
  • Pharmaceutical Production:Provide validation-ready measurements for active ingredients and solvents, with documentation packages supporting regulatory compliance and quality assurance protocols throughout manufacturing.
  • Power Generation Facilities:Track boiler feedwater, condensate, and chemical storage levels where reliable measurements ensure efficient operation and prevent costly equipment damage from level excursions.

Tips to Choose the Right Guided Wave Radar Level Transmitter

Selecting the appropriate sensor requires careful consideration of your application parameters. Here are practical guidelines to help you choose wisely:

  • Assess Material Properties:Consider dielectric constant, viscosity, and coating tendencies of your process material because these characteristics determine which probe configuration delivers optimal performance.
  • Evaluate Process Conditions:Review operating temperature, pressure ranges, and potential foam formation since these factors influence transmitter housing selection and probe material specifications needed.
  • Determine Measurement Range:Calculate the required measuring distance from flange to minimum level point. This helps to ensure that the probe length accommodates your tank geometry and deadband.
  • Consider Tank Construction:Account for nozzle size, internal obstructions, and agitator locations as proper probe positioning prevents interference and ensures accurate, reliable measurement performance consistently.
  • Review Certification Requirements:Verify hazardous area classifications and industry standards applicable to your facility. This helps selecting instruments with appropriate approvals for safe, compliant operation.
  • Plan Integration Needs:Identify your control system communication protocols and power supply specifications. This enables choosing output options that simplify installation and enable effective process monitoring.

Get Reliable Level Measurement Solutions Today

Finding the right guided wave radar level sensor doesn't have to be complicated. Our team at The Transmitter Shop helps you select instruments that match your specific application requirements while staying within budget constraints. We provide technical support from selection through installation, ensuring your sensors perform reliably from day one. For more details or queries, contact us or email us at sales@transmittershop.com.

FAQs

  • Do these sensors work with foam on the liquid surface?

Yes. The guided signal penetrates foam layers effectively, reaching the actual liquid surface beneath, while other technologies often measure incorrectly at the foam interface.

  • How do I handle condensation inside the tank affecting measurements?

Guided wave radar ignores condensation on tank walls or probe surfaces because the measurement signal travels along the probe itself, not through the vapor space. Light condensation on the probe surface typically doesn't impact accuracy.

  • Can I install these sensors in existing tank nozzles?

Yes. Our sensors accommodate various flange sizes and process connections, making retrofits straightforward. We offer adapters and custom configurations to fit your existing infrastructure perfectly.

  • How do these sensors perform with viscous or sticky materials?

They handle viscous liquids well since measurement relies on electromagnetic properties rather than mechanical contact. Coating may occur, but it typically doesn't affect accuracy until buildup becomes excessive.

  • Can I use the same sensor for different materials?

Yes. These sensors work with various materials having different dielectric constants. Simply reconfigure the device parameters to match the new application without hardware changes or replacements.
