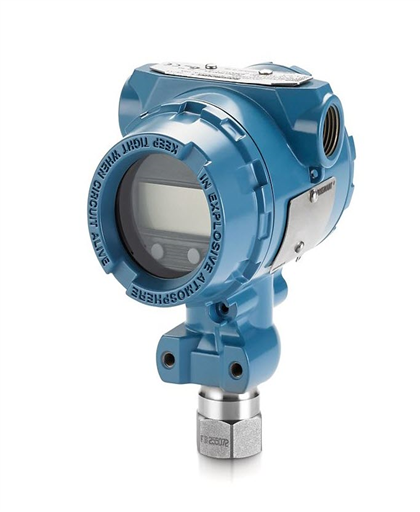

Rosemount 2088 Pressure Transmitter
Availability: In stock
Specification
Accuracy:-
Protocols:-
- ±0.10% of calibrated span. Includes combined effects of linearity, hysteresis, and repeatability.
- Expressed as a total effect per 50 °F (28 °C). Total effect includes zero and span effects.
- +/- (0.15% URL + 0.15% of span) from -40 to 185 °F (-40 to 85 °C)
- ±0.10% of upper range limit for 12 months.
- Less than ±0.1% of upper range limit when subjected to vibration of: peak to
peak constant displacement of 4 mm (5–15 Hz) and constant acceleration of
2 g (15–150 Hz) and 1 g (150–2000 Hz).
- Less than 0.01% of calibrated span per volt.
- Zero shift of up to 1.2 inH2O (3 0.3 kPa), which can be calibrated out. No span effect.
- Less than ±0.25% of upper range limit from 20–1000 MHz at 30 V/m with
leads in conduit. Less than ±0.25% of upper range limit at 10 V/m with
unshielded twisted pair (no conduit).
- Tested to IEC 801-3.
- Liquid, gas, and vapor applications.
| Range | Minimum Span | URL/Max.span/Sensor Limit |
|---|---|---|
| 1 | 1.5 psi (103 mba) | 30 psi (2,1 bar) |
| 2 | 7.5 psi (517 mbar) | 150 psi (10,3 bar) |
| 3 | 40 psi (2,76 bar) | 800 psi (55,2 bar) |
| 4 | 200 psi (13,8 bar) | 4000 psi (275,8 bar) |
Protocols:-
- 4–20 mA HART (Output Code S)
- Output
Two-wire 4–20 mA, user-selectable for linear or square root output. Digital
process variable superimposed on 4–20 mA signal, available to any host
that conforms to the HART protocol. - Power Supply
External power supply required. Standard transmitter operates on 10.5 to
42.4 Vdc with no load. - Turn-On Time
Performance within specifications less than 2.0 seconds after power is
applied to the transmitter. - 1-5 Vdc HART Low Power (Output Code N)
- Output
Three wire 1–5 Vdc output, user-selectable for linear or square root output.
Digital process variable superimposed on voltage signal, available to any
host conforming to the HART protocol. - Power Supply
External power supply required. Standard transmitter operates on 9 to 28
Vdc with no load. - Power Consumption
3.0 mA, 27–84 mW - Output Load
100 kΩ or greater - Turn-On Time
Performance within specifications less than 2.0 seconds after power is
applied to the transmitter - Overpressure Limits
- Range 1: 120 psig max.
All other ranges: twice the upper range lim - Temperature Limits
- Process
Silicone fill sensor: –40 to 250 °F (–40 to 121 °C).
Inert fill sensor: –22 to 250 °F (–30 to 121 °C). - Ambient
–40 to 185 °F (–40 to 85 °C).
–4 to 175 °F (–20 to 80 °C) with LCD display.(1) - Storage
–50 to 230 °F (–46 to 110 °C). –40 to 185 °F (–40 to 85 °C) with LCD display.(1)
- 1/2–14 NPT, M20 x 1.5 or G 1/2 female (PF 1/2 female) conduit entry.
- 1/2–14 NPT, M20 x 1.5 or G 1/2 female (PF 1/2 female) conduit entry.
- 1/2–14 NPT female, DIN 16288 G 1/2 male, RC 1/2 female (PT 1/2 female),
M20 x1.5 male.
- 316L stainless steel or Alloy C-276.
- Approximately 2.44 lb. (1,11 kg).
Description
With the Rosemount 2088 gage and absolute pressure transmitter, you can be guaranteed with accurate, stable, and reliable pressure measurement in difficult applications. Designed with reliability, long-term performance, and maintainability in mind, this quick and easy-to-install solution can be installed in hazardous environments for repeatable pressure measurement. Rosemount 2088 smart pressure transmitter has a compact and lightweight design that makes it extra user-friendly. This high performance pressure transmitter has in-built configuration buttons, as well as easy-to-use menus that facilitate easy commissioning on the spot. The Rosemount pressure transmitter 2088, which can be availed with remote seals, and manifolds, utilizes piezoresistive sensor technology for AP and GP measurements. If you require an economical option for your pressure measurement, you can source it from The Transmitter Shop at the best prices.
Features of Rosemount 2088
We, at TTS, offer 2088 pressure transmitter in protocols 1-5 V DC and 4-20 mA HART, which allows flexibility for low power applications. The following are the other notable features that add to the popularity of 2088 gage pressure transmitter.
- Compact and Light Weight: Weighing approximately 2.44 lb. (1,11 kg), Rosemount 2088 smart pressure transmitter can be mounted directly to the impulse line without taking much painstaking efforts. There is no need of using additional mounting bracket for installation.
- Ease of Use Guaranteeing Quick Start Up: The transmitter is extremely easy to use as it is equipped with straightforward menus and built-in configuration buttons. It also assures quick start-up as it features factory-assembled and leak-checked integral manifold and remote seal solutions.
- Improved Functionalities: Our range of 2088 pressure transmitter sets the standard for total performance with several advanced functionalities. The Rosemount transmitter 2088 we offer is equipped with the following:
- Integral manifold
- Stainless steel or Hastelloy wetted materials
- Smart communications
- External push button zero and span capabilities
- Factory-assembled and leak-checked integral manifold
- Allows Commissioning On the Spot: At TTS, the offered 2088 pressure transmitter is equipped with Local Operator Interface (LOI) that has easy-to-use menus and built-in configuration buttons. This allows the user to easily commission the device on the spot. You don’t require complicated tools for such commissioning.
- Fully Configurable LCD display: The device also features an optional, fully configurable LCD that displays the following information directly from microprocessor.
- Display process variable
- Percent of range
- Diagnostic messages
- Certified for Hazardous Locations Applications: The industrial gage pressure transmitters for sale at TTS are certified for use in strenuous conditions. They can be reliably used in applications ranging from high-pressure measurements in boilers and fuel feeds. This gage pressure transmitter is in compliance to the following:
- Ordinary Location Certification for Factory Mutual
- Canadian Standards Association (CSA)
- ATEX Intrinsically Safe
- ATEX Flame-Proof
- JIS Flame-Proof
The offered Rosemount pressure transmitter 2088 also features:
- 0.075% high accuracy option
- 0.10% reference accuracy, including linearity, hysteresis, and repeatability
- Absolute and gage pressure ranges from 0–1.5 psi to 0–4,000 psi (0–0.1 to 0–276 bar)
- Rugged construction using 316L SST, 316L SST, Inert, Alloy C-276, Alloy C-276, Silicone that guarantee long term of service in harsh environments.
- Powered by advanced sensor technology
- Simple integration possibilities
